GIGABYTE GB-BXI3H-4010 2 x 204Pin SO-DIMM Intel HD Graphics 4400 Integrated by CPU Mini-PC Barebone

Item #: 9B-56-164-014  |  Mfr. Part #: GB-BXI3H-4010  |  UNSPSC: 43211507
$259.99
$319.99 Save: $60.00 (19%)
Free Shipping Available Additional Shipping Information
Newegg

    Don't Miss Out on Exclusive Offers!

    Invalid e-mail address

    Top Favorable Review

    A Solid PC

    >Case machined high quality - extremely accurate, well built. Vents are properly designed/positioned. >Internals are well laid out - hardware of high quality. >i3 is fast enough for most average use computing - I use it as media PC and have ... Read more
    — William H. 10/11/2014
    vs

    Top Critical Review

    Nice size, OVERHEATS!

    Plain and simple: CPU overheats very easily. - Just running memtest86+v5.20, the cpu will hit 60 deg C after one pass and then freeze. Keep in mind, I haven't even installed a hard drive yet! When that gets put in, the system temps will be ... Read more
    — Timothy M. 9/2/2014


    Quick Info

    Warranty

    • Limited Warranty period (parts): 1 year
    • Limited Warranty period (labor): 1 year



    Onboard Video:
    Intel HD Graphics 4400 Integrated by CPU
    HDMI:
    1
    Memory slot:
    2 x 204Pin SO-DIMM
    Memory Type Supported:
    DDR3L (1600/1333) (1.35V)
    CPU Type:
    Intel Core i3-4010U 1.7GHz
    Max Memory Supported:
    16GB
    Other:
    1 x mSATA slot 1 x Half-size mini-PCIe slot occupied by the WiFi+BT card 1 x SATA Slot
    Onboard Audio:
    Realtek ALC269

    LOADING...

    Learn more about the GIGABYTE GB-BXI3H-4010

    General

    Brand
    GIGABYTE
    Model
    GB-BXI3H-4010

    CPU Supported

    CPU Type
    Intel Core i3-4010U 1.7GHz

    Memory Supported

    Memory slot
    2 x 204Pin SO-DIMM
    Memory Type Supported
    DDR3L (1600/1333) (1.35V)
    Max Memory Supported
    16GB

    Expansion Slots

    Other
    1 x mSATA slot
    1 x Half-size mini-PCIe slot occupied by the WiFi+BT card
    1 x SATA Slot

    Graphics

    Onboard Video
    Intel HD Graphics 4400 Integrated by CPU

    Audio

    Onboard Audio
    Realtek ALC269

    Communications

    LAN
    Realtek RTL8111G
    Max LAN Speed
    10/100/1000Mbps

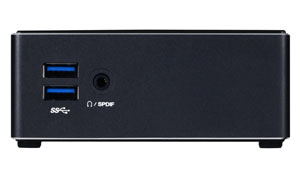

    Front Panel Ports

    Front USB
    2 x USB 3.0
    Front Audio Ports
    1 x head phone jack with SPDIF

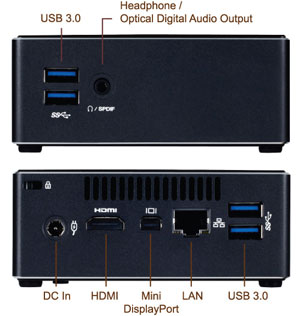

    Back Panel Ports

    HDMI
    1
    VGA
    1 x Mini DisplayPort
    Rear USB
    2 x USB 3.0
    RJ45
    1
    Other Rear Ports
    1 x DC-In
    1 x Kensington lock slot

    Power Supply

    Input
    AC 100-240V
    Power Supply
    Output: DC 19V
    3.42A

    Physical SPEC

    Dimensions
    1.69"H x 4.24"W x 4.5"L

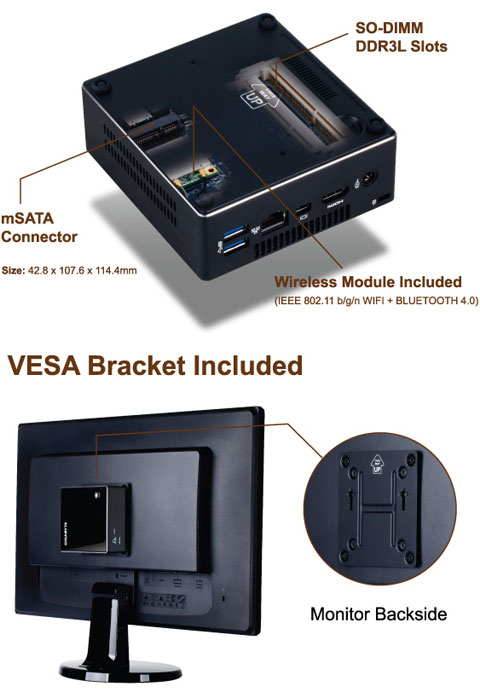

    Features

    Features
    Features latest Intel 4th generation Core processors

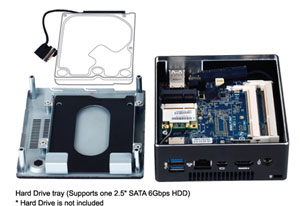

    Supports 2.5” thickness 7.0/9.5mm Hard Drives (1 x 6Gbps SATA3)
    Ultra compact PC design at only 0.52L
    1 x mSATA SSD Slot
    2 x SO-DIMM DDR3L Slots (1333/1600 MHz)
    IEEE 802.11 b/g/n Wi-Fi/Bluetooth 4.0 Mini-PCIe card
    HDMI Plus Mini DisplayPort Outputs (supports dual displays)
    Intel HD 4400 Graphics
    4 x USB 3.0
    Gigabit LAN
    Headphone jack with S/PDIF
    VESA Mounting bracket

    Customer Reviews of the GIGABYTE GB-BXI3H-4010

    Do you own this product? WRITE A REVIEW

    4 out of 5 eggs Based on 5 Reviews

    See all reviews

    • Filter Results
    • (5)
    • (0)
    • (1)
    • (0)
    Go
    • William H.
    • Verified Owner

    5 out of 5 eggs A Solid PC

    Pros: >Case machined high quality - extremely accurate, well built. Vents are properly designed/positioned.
    >Internals are well laid out - hardware of high quality.
    >i3 is fast enough for most average use computing - I use it as media PC and have not heard the fan kick up during HD streaming. (Only 2 days of use but don't intend to use it any harder)
    >Overall, its a solid PC - quite simply, a laptop w/o keyboard, mouse, monitor, or DVD, in a box.
    >Newegg is pretty much the cheapest/easiest place to get these units - I looked pretty hard.

    Cons: >I was not initially a fan of the intel graphics hardware and driver - it was cumbersome to get it set to view properly on the TV using HDMI. Aspect ratio had to be manually adjusted BUT on the flip side, the graphics device software made it simplistic to adjust. To further con this con, this graphics hardware is the better choice in the Brix lineup.
    >The power adapter cable that plugs into the brick is 90* and the brick is so small, the cable sticks out the side (I cant find much wrong with this thing, can't you tell I'm reaching?)
    >...

    Bottom Line: Seriously, only a couple days of testing and I'm ecstatic to have found this product. I came from a custom built Dell Zino HD that had heat problems even when I tried to make it right. It was a great size and good enough for media PC but this Brix is EVEN BETTER! I have a separate Bluray player so I don't care about the lacking media drive.
    I did have some concern about heat as noted in some comments and I did some testing and monitored heat w/o issues. Granted, I have yet to put it through paces but why when it will do nothing more than HD internet streaming. It will idle at around 48C which is normal. Doing a couple "capability checks" the fan kicked into high gear and held the cpu at 68C which is still reasonable. I would guess if I were doing some reasonably intensive gaming, it would ride this temp but that it TOTAL speculation. If the situation is to change, I'll update this. (if possible)

    Did you find this review helpful? Yes No

    • Chris S.
    • Verified Owner

    5 out of 5 eggs Great PC for moderate tasks

    Pros: Tiny. No more huge media pc for me. Can transport to other peoples house or to my shop no problem. Runs a 27" TV through HDMI wth full audio at max resolution.

    Cons: None yet.

    Bottom Line: It also runs the pcb design software I use for my job, although I haven't tried to do that while also streaming video to the TV.

    I have built many, many pc's over the years and will probably not be buying any more ATX, mini ATX, nor even a micro ATX mobos.

    Did you find this review helpful? Yes No

    • Amit B.
    • Verified Owner

    5 out of 5 eggs Excellent for Media Center

    Pros: This is an excellent compact PC that will serve well as your media center PC. Putting it together was a snap. Just add the SO-DIMM memory and mSATA SSD modules and you're good to go. This unit can also take a standard 2.5" SSD.

    The Core i3 processor is good enough for most media center tasks. However if you are planning to use it for more than just a media center I would recommend you go to Core i5.

    It is so quiet. I have not noticed the fan.

    Cons: Power cable included is short.

    Bottom Line: I have added a Flirc dongle for Media Center remote capability and using my old Windows Media Center remote with it.
    On software side I am using Plex Home Theater and XBMC.

    Did you find this review helpful? Yes No

    • Kevin K.
    • Verified Owner

    4 out of 5 eggs Nifty little PC

    Pros: Small and quiet, decent performance for boring office tasks.

    Cons: Wish it had a rear audio jack so all the cables could be run out the back.

    Bottom Line: A bit tricky to install Windows 7 due to UEFI BIOS and no DVD drive. I tried a couple of suggestions with no luck until I tried the Rufus utility.

    Did you find this review helpful? Yes No

    • Timothy M.
    • Verified Owner

    1 out of 5 eggs Nice size, OVERHEATS!

    Pros: small form factor
    i3 dual core cpu
    low power requirements
    arrived with latest F5 bios

    Cons: Plain and simple: CPU overheats very easily.

    - Just running memtest86+v5.20, the cpu will hit 60 deg C after one pass and then freeze. Keep in mind, I haven't even installed a hard drive yet! When that gets put in, the system temps will be higher!
    - Sitting at idle in BIOS, system temp stays at 52*C and CPU at 51*C with the fan speed peaked out at 3600 RPM in a 26*C room with no obstructions to air flow
    - Wouldn't boot with a USB flash drive
    - Will not auto-refresh bios when a new USB device is plugged in (example: external DVD drive with boot disk or external hard drive) even when you exit the BIOS
    - When keyboard and external DVD drive are plugged into the back USB ports, the keyboard will be lost on successful start up

    Bottom Line: Shining a flashlight into the back vent where the fan blows out, you can see that it almost touches the top of the case, meaning that air flow is minimal or non-existent because the motherboard almost completely blocks the side air vents.

    I haven't decided if I'm going to return this or modify the case to provide the necessary air flow to cool the CPU. So far, I'm very disappointed at what was going to be my HTPC.

    Manufacturer Responses:

    Dear Customer, Thank you for your comments. We apologize for your difficulty with your GIGABYTE product. Please contact us at newegg-support@gigabyteusa.com with the case number 113561 in the e-mail subject line. We will provide personalized service and analysis to help solve your issue ASAP. If the matter is urgent, please send us your contact number, and we will contact you. GIGABYTE VIP Support Team

    Did you find this review helpful? Yes No
