MPG X570S CARBON EK X
Exclusive featuree
Core Boost Technology
Combining dual power connectors and premium layout design, that is ready for unleashing the maximum performance.
6 layer PCB
6 layer PCB provides higher performance and long-lasting system stability without any compromise.
2oz Thickened Copper PCB
An enhanced PCB design improves heat dissipation and performance reliability.
Audio Boost 5
Isolated audio with a high quality audio processor & amp for the most immersive gaming experience.
14+2 Power Design with Digital PWM
An aggressive digital VRM power design with digital PWM IC and 14 Duet Rail CPU Power System with 75A Smart Power Stage, make sure your system runs smoothly under the most extreme conditions.
PCIe Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.
MPG X570S CARBON EK X
premium thermal solution
EK CUSTOM-DESIGNED MONOBLOCK
A custom-designed EK-Quantum Monoblock that aesthetically blends with the motherboard with features an integrated flow indicator. It offers pristine cooling for both the CPU and VRM power delivery section.
M.2 Shield Frozr
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Pump Fan Support
Control watercooling pump speeds for best flow and noise control.
Silent Cooling
Enlarged chipset heatsink with fanless heatsink design to prevent dust and noise as well as maintain high heat dissipation efficiency.
MPG X570S CARBON EK X
HIGH-SPEED TRANSMISSION
Intel Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
2.5G Network Solution
Featuring premium 2.5G LAN with LAN manager delivers better network experience.
DDR4 BOOST
The fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.
Lightning Gen 4 Solution
The latest Gen 4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.

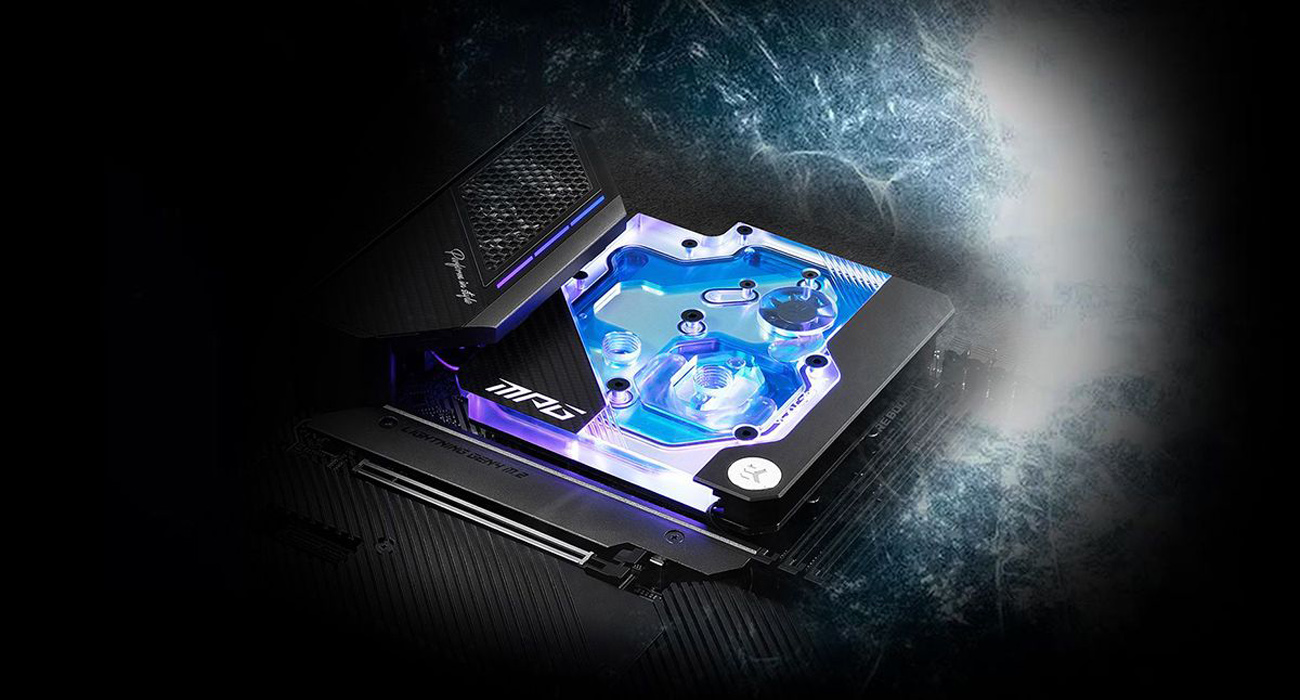

EK CUSTOM-DESIGNED CPU + VRM MONOBLOCK
Sustain the high performing for Ryzen 5000 series processors, a custom-designed EK monoblock that offers pristine cooling for both the CPU and VRM power delivery section is used to prevent thermal throttling, allowing gamers to sustain heavy gaming loadings without the noisy environment. It's ready for everything!
14 + 2 DUET RAIL POWER SYSTEM
Unleash and sustain maximum performance with an aggressive VRM design built with a total of 14 Duet Rail Power System(DRPS). Combining 8+4-pin power connectors and exclusive Core Boost technology, MPG series motherboard is ready to sustain heavy daily work.
CORE BOOST
Core Boost technology combines MSI's premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, but creating the perfect conditions for your CPU overclocking.
LIGHTNING GEN 4 SOLUTION
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications.
CUSTOMIZE YOUR GAMING RIG
Personalize your PC with 16.8 million colors and 29 effects through Mystic Light RGB LED. Controlled in one click with the Mystic Light feature in MSI Center.

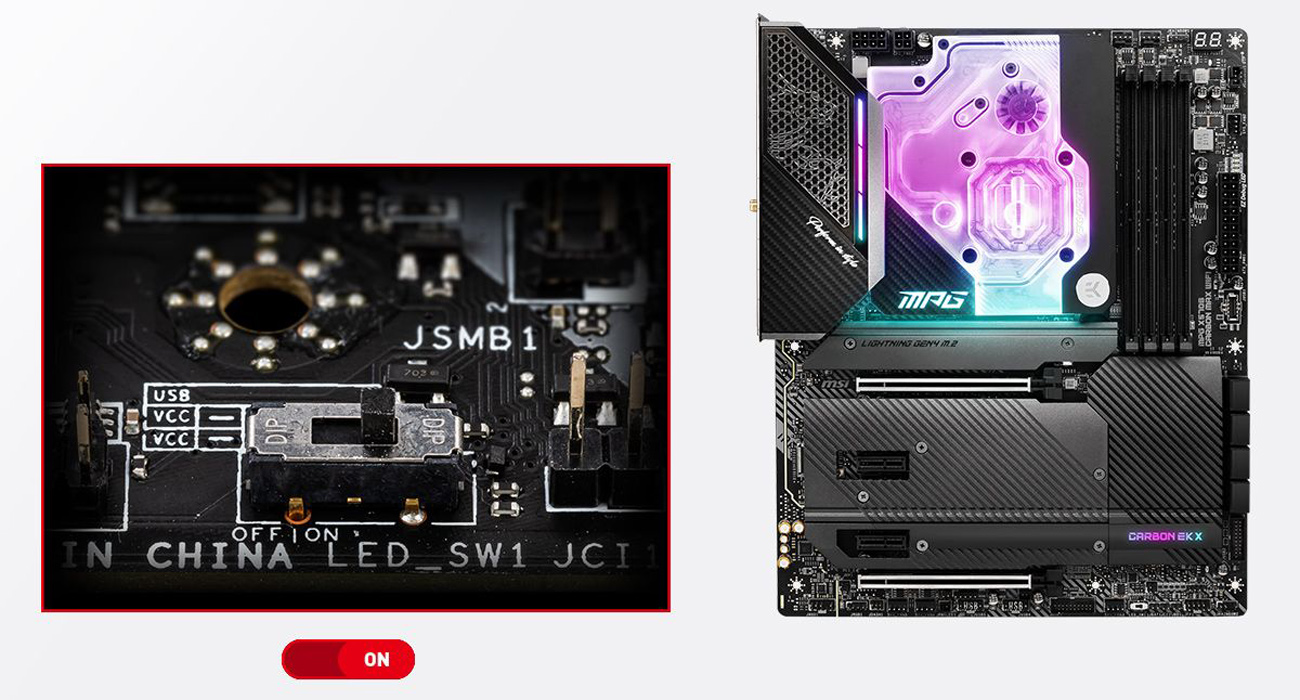

EZ LED CONTROL FOR RGB CUSTOMIZATION
A built-in LED button on the motherboard to control your light effect in a second. Use EZ LED CONTROL to show million of colors or turn off lights right away.
WI-FI 6E & BLUETOOTH
Use your LAN port for online gaming while using Wi-Fi for other online applications. The Wi-Fi 6E adopts latest OFDMA, two-way MU-MIMO technologies and 6GHz band, delivering wireless transmission speeds up to 2.4Gbps.
MAXIMIUM DATA TRANSFER WITH 2.5G LAN
MPG X570S CARBON EK X features high-bandwidth and low-latency Ethernet networks for demanding gamers and power users. Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency.
USB TYPE-C READY IN BOTH FRONT CASE PANEL & REAR IO
Get all the performance benefits from the USB Type-C connector. This reversible USB connector allows for effortless connecting of USB devices.
AMPLIFY YOUR EXPERIENCE WITH AUDIO BOOST 5
Like a dedicated sound card, Audio Boost 5 offers a HD audio processor, dedicated amplifier and high quality audio capacitors all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy. Powered by ALC 4080 audio processor, this motherboards supports 120dB SNR, 32-bit/384kHz and DSD Super Audio CD playback & recording.
PCB WITH 2OZ THICKENED COPPER
An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking.
MULTIPLE GPU SUPPORTS AND STEEL ARMOR
MPG X570S CARBON EK X supports multiple GPU solution. Optimal PCI-Express slot placement allows for better fitting and airflow. That way, you can enjoy the best graphics at the highest framerate jumping from your screen when running an AMD CrossFire™ setup Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free user experience.
