Multi-Zone Light Show Design

Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion application, the user has complete control over the LEDs which surround the motherboard.

Surround Lighting

Multi-light zones are equipped with high brightness RGB LEDs, namely the CPU, Memory, Armor, Audio, PCI-Express and Swappable Overlay for Accent LED. When it's all set and done, your system will shine like never before.

Swappable Overlay for Accent LED

AORUS brings even more color and life to your system with an Accent LED Overlay. This overlay complements the RGB Fusion technology in AORUS Motherboards adding more flare and style to your gaming machine. With the swappable overlay users can utilize different patterns and designs to make their system their own.

Design your very own Accent LED Overlay with a 3D printer. Click here to download dimensions and 3D files for the Accent LED Overlay.

Supports RGBW & -UV Light Strips

Independently Programmable Onboard Pin Header for RGBW/-UV LED Strips

Not bright enough? You can install standard 12V external RGB, RGBW or RGB/UV light strips on the RGBW pin header and control its color from the RGB Fusion software. Using a RGBW light strip with a dedicated white LED, users will experience brighter and more vibrant shades of colors.

When using RGB/UV LED strips, users can give their systems a fluorescent glow with the use of UV reactive liquid, neon braided cables, and acrylic paint for a wicked-looking gaming PC.

No need to worry when choosing light strips as AORUS motherboards support a wide variety of RGBW/-UV light strips on the market thanks to the RGB Fusion software that allows users to redefine the pin location for the R/G/B Signal.

RGB Fusion (Advanced mode)

With the all new RGB Fusion software, users have access to different preset LED lighting configurations with choice of colors. You can even set the LEDs to synchronize with your favorite music or have them change colors to indicate the CPU temperature. For true lighting experts there is an Advanced Mode, which can be fully customized by individual area with its own effects and color transitions, along with specific duration and transition times.

Synchronize with RGB FUSION READY Peripherals
With a dazzling array of products supported, RBG Fusion is the software that brings it all together, letting your accessories synchronize to the same beat.

1. Independent Control
   Customized different color for different section of board
2. Synchronize with RBG FUSION READY Peripheral
   With a dazzling array of products supported, RBG Fusion is the software that brings it all together, letting your accessories synchronize to the same beat. Customize all your LEDs how you like-have them match, dazzie and impress.
3. Fully Customizable
   Adjust lighting animation with color stops, color duration, trnsition period, and color effects.
4. Lighting Profile
   Save, export and import profiles to quickly change effects based on your preference and to share with others.

GIGABYTE RGB Fusion APP

Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colors and speeds for different modes, all this can be done away from the keyboard and monitor of their PC.

Swappable Overlay for Accent LED

AORUS brings even more color and life to your system with an Accent LED PCH Overlay. This overlay complements the RGB Fusion technology in AORUS Motherboards adding more flare and style to your gaming machine. With the swappable overlay users can utilize different patterns and designs to make their system their own.

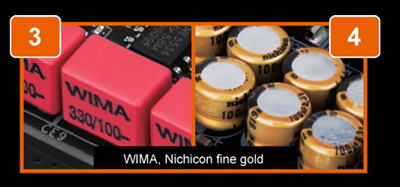

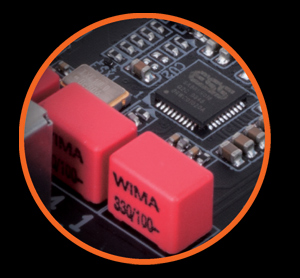

ESS SABRE DAC

AORUS AMP-UP Audio now offers ESS SABRE with a DAC that adopts the concept of a high-end audiophile sound system design into a micro system within the motherboard. It provides a pure yet powerful sound, resonating classical orchestra or blasts in your virtual warzone.

Smart Headphone Amp

Automatically detects impedance of your head-worn audio device, whether earbuds or high-end headphones to provide optimal audio dynamics—preventing issues such as low volume and distortion.

USB DAC-UP 2

Adjustable Voltage USB Port with Dedicated Power Design

AORUS improves upon USB DAC-UP technologies with USB DAC-UP 2.
USB DAC-UP 2 continues to provide clean, isolated and low-noise power while adding the ability to compensate for voltage drop.
Virtual reality pioneers and gamers alike can rest assured that their expensive accessories and peripherals will not encounter connectivity or power deficiency issues with the AORUS USB DAC-UP 2. With Gaming Gear drawing large amounts of power and having firm specification requirements USB DAC-UP 2 is up for the challenge.

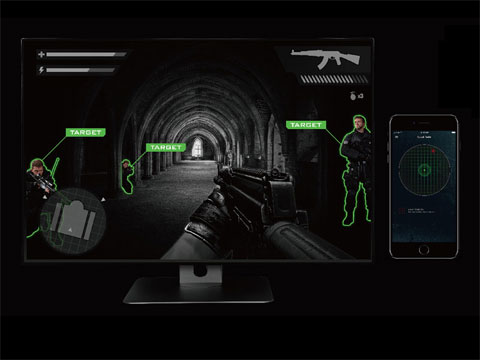

Scout Radar

Expand your vision with the world's first smart gaming companion that enables you not only to hear your enemies from further away but also to visualize and see where enemies are on the radar through your mobile device.

Scout Mode

This proprietary technology allows you to hear your enemies from further away, giving you a distinct tactical advantage.

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

• Fan pin header
• Fan/Water Pump pin header
• Temperature Sensors
Different models have different number of fan pin headers and temperature sensors Smart Fan 5 function may vary by model

• 9 Temperature Sensors
• 8 Fan/Water Pump Connectors
• All Fan Pin Headers Upgraded to Hybrid Fan Headers
• Interoperable Fans and Sensors
• Intuitive UI for Fan Control

Achieve fan silence. With Fan Stop map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.

Hybrid Fan Pin Headers & Temperature Sensors

• Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate and water-temperature through the Hybrid Fan Pin Headers or external thermistor sensors—giving you absolute mastery over your PC.
• All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.
• Includes support for one High-Current Pump up to 3 Amps with built-in overcurrent protection—a must for high-end high current fans.

New Smart Fan 5 Software

Choose from different modes, Quiet to Full Speed, to match your system usage scenario. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

System Information Viewer

GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.

Server-Class Digital Power Design

AORUS Z370 series motherboards use an all digital CPU power design which includes both digital PWM Controllers and Smart Power Stage controllers. Intersil is the world leading provider for high performance power IC solutions, capable of providing up to 60A of power. These 100% digital controllers offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from their new 8th Gen Intel® Core Processors.

Turbo B-Clock

Built-in Advanced Performance Tuning IC
Turbo B-Clock Tuning IC in the AORUS Z370 series motherboards enables overclockers to have the ability to change their BCLK frequency to a desired value of their choice. With the new linear range adjustment option of the Tuning IC, ranges from 90MHz to 500MHz are now possible, so that overclockers are not limited to the 5% ranges of traditional straps.
* Turbo B-Clock overclocking range may vary according to CPU capabilities.

High-Bandwidth(HB) SLI Bridge

Take your gaming performance to a whole new level by configuring multiple GeForce GTX cards with a High-Bandwidth(HB) SLI Bridge.

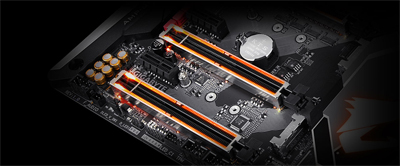

Triple PCIe Gen3 x4 M.2

AORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.

Triple NVMe M.2 PCIe SSDs in RAID 0 Support

Extreme Performance with Gen3 x4 NVMe PCIe SSDs
AORUS' Z370 motherboards offer the industry's best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. AORUS' unique design which can be configured in RAID for record speeds of up to 3551 MB/s (Sequential Read), making AORUS the obvious choice for the ultimate PC.

AORUS M.2 Thermal Guard

With durability in mind, GIGABYTE provides a thermal solution for M.2 drives—Thermal Guard. The M.2 Thermal Guard prevents throttling and bottlenecks from M.2 devices as it helps to reduce and dissipate heat before it becomes an issue.

The AORUS Z370 Platform is the first enthusiast platform that supports Intel's latest Optane technology. Optane fuels storage performance by acting as a cache drive giving users a significant boost compared to traditional mechanical drives.

Killer™ E2500 Gaming Network + Intel® Gigabit LAN

Killer™ E2500 is a high-performance, adaptive gigabit Ethernet controller that offers better online gaming and media performance compared to standard solutions.
Intel® Gigabit LAN networking, a popular choice with gamers, delivers several performance-enhancing features such as advanced interrupt handling to help reduce CPU overhead and Jumbo Frame support for extra large data packets.

Give yourself the competitive edge:

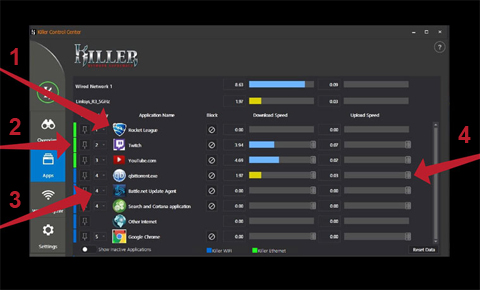

Optimize your network performance with the all-new killer Control Center

1. Automatically detects and prioritizes apps and popular websites
2. Show which network interface your applications and websites are using
3. Use Killer's network priority levels or customize your own
4. Control bandwidth allocated to each application

The Industry's Leading Static-Electricity & Surge Protection

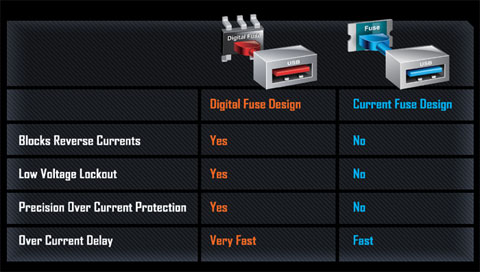

USB with Precision Digital Fuse

Utilizing a digital fuse, motherboards are able to avert against over-current damage by reacting faster, with greater precision, and avoid unexpected voltage from external devices.

Digital Fuse Design

Activates when the current reaches its trigger point, this design is much more precise than traditional fuses.

PURE SPEED
AORUS Extreme USB 3.1 Motherboards

The ASMEDIA 3142 USB 3.1 controller utilizes 2 PCIe Gen3 lanes, offering a total of up to 16 Gb/s, which means you have extra bandwidth to take full control of the 10 Gb/s USB 3.1 ports. With twice the bandwidth compared to its previous generation, and backwards compatibility with USB 2.0 and 3.0, the much improved USB 3.1 protocol is available over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices.

USB 3.1 Gen2 Type-C Header

Equipped with next generation connectivity onboard AORUS Z370 Gaming Motherboards already support the chassis of the future. The onboard USB Type-C header for USB 3.1 Gen2 makes access convenient when connecting a USB 3.1 Gen2 drive or charging your new mobile device.

GIGABYTE Patented Double Locking Bracket

Ultra Durable™ Memory Armor

AORUS' exclusive one piece stainless steel shielding design prevents against PCB distortion and twist, plate bending, in addition to preventing any possible ESD interference.

GIGABYTE Patented DualBIOS™ (UEFI) Design

GIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', protecting users from BIOS failure due to virus, hardware malfunction, improper OC settings or power failure during the update process.

Long Lifespan Durable Black™ Solid Caps

AORUS motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. With ultra-low ESR no matter how high the CPU load, this provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability. These exclusive capacitors also come in customized jet black, exclusively on AORUS motherboards.

15µ Gold Plated CPU Socket Design

AORUS motherboards come equipped with a 15 microinch thick gold plated CPU socket, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins or bad contacts.

Refreshed BIOS Easy, Smart, and Friendly

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
* Photos are for reference only. Product features may vary by model.

GIGABYTE APP Center

The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS.

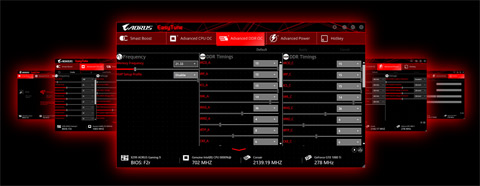

EasyTune™

GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

3D OSD

3D OSD automatically detects and displays your system information during games, allowing you to easily get a hold of your system information without switching between screens.

XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere

Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats—keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!
*Free 1 year XSplit Gamecaster + Broadcaster Premium License.

4K Ultra HD Support

4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.

HDMI™ - The Next Generation Multimedia Interface

4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.

CEC 2019 Ready

Saving energy, Environmental Friendly
The Z370 Motherboards are now ready for CEC 2019! The California Energy Commission(CEC) regulation measures PC systems' level power consumption. The Z370 Motherboards with selected key components fulfill CEC 2019 power saving requirements.
