ASRock B660M-HDV
This mAXT motherboard offers a solid foundation to build a home or office PC based on the latest 12th Gen Intel Core processors. It packs precise, stable digital power design, ultra-fast PCIe Gen4 M.2 connector, and Super Alloy components to beat challenging conditions. It also comes with three video outputs* — VGA, HDMI, and DisplayPort — to play nice with both new and legacy display devices.
- Supports 12th Gen Intel Core Processors (LGA1700)
- 6 Phase Power Design
- Supports DDR4 5066 MHz (OC)
- 1 PCIe 4.0 x16, 2 PCIe 3.0 x1
- 1 M.2 Key-E for WiFi
- Graphics Output Options: HDMI, DisplayPort, D-Sub
- Realtek ALC887/897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA 3
- 1 Hyper M.2 (PCIe Gen4 x4)
- 1 Ultra M.2 (PCIe Gen3 x4 & SATA 3)
- 6 USB 3.2 Gen1 (3 Rear, 1 Rear Type-C, 2 Front)
- 5 USB 2.0 (2 Rear, 3 Front)
- Intel Gigabit LAN
Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
High Speed M.2 Solution
This motherboard is capable of accommodating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD that is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Intel Gigabit LAN
Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
* Wi-Fi module is not included.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
* Supported only with processors with integrated graphics. Please check CPU support list from each motherboard webpage.
Premium Power Choke
Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

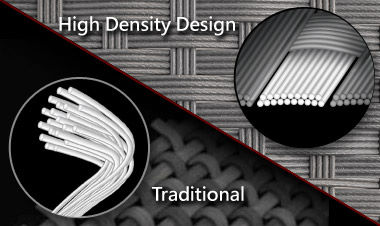

High Density Glass Fabric PCB
High Density Glass Fabric PCB design reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, and the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
