SYS-5018A-TN4

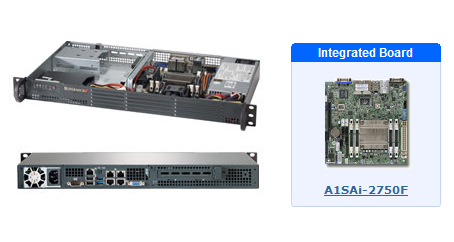

SUPERMICRO SYS-5018A-TN4 1U Rackmount Server Barebone

Key Features

SYS-5018A-TN4
  • Space-efficient, compact design
  • Fast to build and deploy
  • Gateway, file-sharing, security

  • 1. Intel® Atom processor C2750, SoC, FCBGA 1283, 20W 8-Core
  • 2. Intel® System-on-Chip Design
  • 3. 2x 3.5" Fixed SATA3 HDD bays or 4x 2.5" SATA2 HDD optional*
  • 4. 1x PCI-E 2.0 x8 slot**
  • 5. Up to 64GB DDR3 1600MHz ECC SO-DIMM in 4 DIMM slots
  • 6. 4x GbE via Intel® C2000 SoC i354 (MACs)
  • 7. DOM power connector
  • 8. 200W Low-noise power supply w/ PFC

Specifications

Product SKUs
SYS-5018A-TN4 SuperServer 5018A-TN4 (Black)
Motherboard
Super A1SAi-2750F
Processor/Cache
CPU
  • Intel® Atom™ Processor C2750
  • CPU TDP 20W (8-Core)
  • FCBGA 1283
  • System-on-Chip
System Memory
Memory Capacity
  • 4x 204-pin DDR3 SO-DIMM slots
  • Supports up to 64GB DDR3 ECC memory
Memory Type
  • 1600/1333MHz ECC DDR3 SDRAM 72-bit, 204-pin gold-plated DIMMs
DIMM Sizes 8GB, 4GB, 2GB
Memory Voltage 1.5 V, 1.35 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
SATA
  • C2000 SoC SATA3 (6Gbps), SATA2 (3Gbps)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • C2000 Soc I354 Quad GbE Controllers (MACs)
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics BMC integrated ASPEED AST2400
USB 3.0 Renesas uPD720201
Input / Output
Serial ATA
  • 2x SATA3 (6Gbps) ports
  • 4x SATA2 (3Gbps) ports
LAN
  • 4x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 4x USB 3.0 ports (2 rear, 1 Type A, 1 via header)
  • 2x USB 2.0 ports (2 rear)
Serial Port 2x Fast UART 16550 Serial Port (1 rear, 1 via header)
DOM 1x SATA DOM (Disk on Module) power connector
VGA 1x VGA Port
Others
  • TPM 1.2 header
  • 4-pin 12V DC power input or 24-pin ATX power input

Gallery

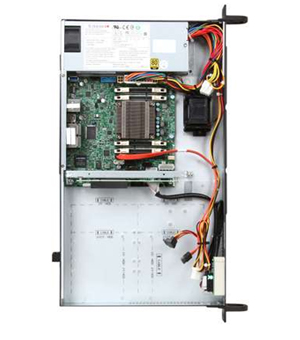

SYS-5018A-TN4 SYS-5018A-TN4 SYS-5018A-TN4

Whats in the Box

SYS-5018A-TN4
