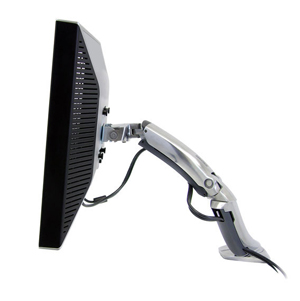

MX Desk Mount LCD Arm

Ergotron MX Desk Mount LCD Arm

The sleek, adjustable MX LCD Arm accommodates mid-size displays and all-in-one computers weighing up to 30 lbs (13.6 kg).

Five inches (13 cm) of height adjustment, extension/retraction motion, integrated tilt and portrait-to-landscape capability promote user comfort and enhance productivity.



Benefits

MX Desk Mount LCD Arm
  • Accommodates mid-size displays and all-in-one computers weighing up to 30 lbs (13.6 kg)
  • Position your display for maximum ergonomic comfort to relieve eye, neck and back strain
  • Free up your table or desktop to increase your workspace
  • Upgrade LCD monitors and TVs with improved ergonomic adjustment
  • Pre-assembled arm offers monitor/TV theft deterrence
  • Rotate screen for portrait viewing of photos and pages—eliminate scrolling
  • Cable management feature conceals and routes cables under the arm, out of the way
  • Extends/retracts LCD up to 16.7" (424 mm); push your display out of the way when not in use
  • Patented CF™ motion technology provides premium ease-of-use display adjustment
  • Easy-to-use, simple installation and effortless operation


Tech Specs

icon icon icon icon icon icon icon
Screen Capacity Lift Tilt Pan Rotation VESA
≤ 30" 14-30 lbs*
6.3-13.6 kg
5"
13 cm
80°† 360° ** 90° P/L MIS-D/E/F‡

MX Desk Mount LCD Arm
  • Part Number:45-214-026
  • Description: MX Desk Mount LCD Arm (polished aluminum)

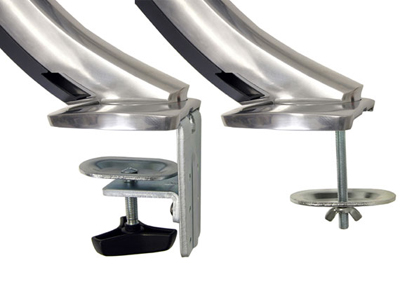

  • Includes desk clamp and grommet mount
  • Mounting Options: Desk clamp attaches to surface edge 2.6" (66 mm) thick; grommet mount attaches through surface holes .31" to 2.0" (8 to 51 mm) wide and up to 3" (80 mm) thick
  • Weight Capacity: 14 to 30 lbs (6.3 to 13.6 kg)
  • Pans at base 180°; rotates at extension 360°; pans at monitor 180°
  • Extends/retracts LCD up to 16.7" (424 mm)
  • Note: Motion range may be limited when using larger displays and/or by the position of the VESA hole pattern on the back of the display
  • Portrait/landscape rotation includes position lock
  • Internal cable management
  • Shipping Dimensions: 25.6" x 7.3" x 6.3" (650 x 185 x 160 mm)
  • Shipping Weight: 9 lbs (4.2 kg); actual product weight: 7.7 lbs (3.5 kg)
  • Warranty: Ten (10) years

Warranty

* Monitor depth greater than 4" (102 mm) may diminish capacity. Contact Ergotron for more information
** Monitor tilts 75° up and 5° down
† Portrait mode is incompatible with 30" displays
‡ Mounting Standards: VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm); VESA FDMI, MIS-E, C (hole pattern = 200 x 100 mm); VESA FDMI, MIS-F, C (hole pattern = 200 x 200 mm). For displays that use a 400 x 200 mm, 400 x 300 mm or 400 x 400 mm hole pattern, the VESA Bracket Adaptor Kit (97-759) can be ordered separately
