SilverStone Fortress Series SST-FTZ01S (silver)
- Classic exterior built from aluminum unibody frame
- Support graphics card up to 13 inches
- Mini-ITX motherboard & SFX PSU compatible
- Maximum performance in slim form factor with support for liquid cooling*
- Positive air pressure design for excellent cooling/quietness and dust-prevention
- Fits in nearly any environment with horizontal or vertical orientation
In early 2014, a revolutionary slim form factor case called the RVZ01 was created by SilverStone’s RAVEN team that exceeded and redefined what a slim HTPC or console-styled PC case could do. As a follow up, SilverStone created another new line called the Fortress Z to cater to enthusiasts with affinity for all metal design in slim form factor cases, thus the FTZ01 was born. Similar to RVZ01, the FTZ01 utilizes a PCI-E riser and custom designed fans to accommodate the biggest consumer graphics card on the market with superb air cooling performance and the ability to support liquid cooling*. Designed for use in either vertical or horizontal orientation, it can be placed comfortably in any space-constrained environment that requires a powerful PC. For those looking to build a premium, all-metal slim form factor PC, there is no better choice than the FTZ01.

Classic exterior built from aluminum unibody frame (FTZ01S)

Multipurpose PSU bracket can accomadate a 3.5 drive

Dual PCI-E slots can house graphics card up to 13 (FTZ01S)

Power & reset botton(FTZ01S)

Slim slot-loading optical slot(FTZ01S)

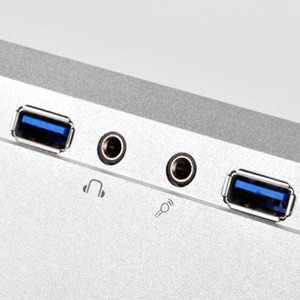

Front USB 3.0 and I/O ports(FTZ01S)

Dual 120mm intake fan slots (FTZ01S)

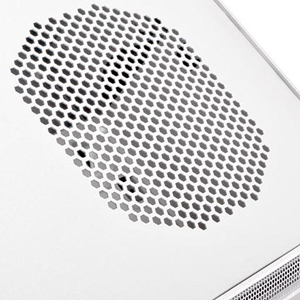

Specially designed ventilation grilles offers the best performance and quietness(FTZ01S)

Independent PSU vent

Positive air pressure design for excellent cooling
Model No. | SST-FTZ01B (black) | |
SST-FTZ01S (silver) | ||
Material | Aluminum unibody frame, steel chassis | |
Motherboard | Mini-DTX, Mini-ITX | |
Drive Bay | External | Slim slot-loading optical x 1 |
-- | ||
Internal | 3.5” x 1, 2.5” x 3 | |
Cooling System | Front | -- |
Rear | -- | |
Side | -- | |
Top | 1 x 120mm fan, 1500rpm 18dBA | |
Bottom | 1 x 120mm fan, 1500rpm 18dBA 1 x 120mm fan slot |
|
Internal | -- | |
Expansion Slot | 2 | |
Front I/O Port | USB 3.0 x 2 Audio x 1 MIC x 1 |
|
Power Supply | SFX, SFX-L | |
Expansion Card | Support graphics card up to 13”, width restriction – 5.88” | |
Limitation of CPU cooler | 83mm | |
Limitation of PSU | -- | |
Net Weight | 4.6kg | |
Dimension | 376mm (W) x 107mm (H) x 351mm (D), 14 liters | |
Extra | Support Kensington locks |
*Liquid cooling support limited to component that fit within FTZ01’s predefined dimensions. For detailed information, please refer to manual.
