SILVERSTONE Milo Series Computer Case - ML08
Based on the excellent RAVEN Z RVZ02 chassis, the Milo ML08 is a super slim Mini-ITX console case with highly capable accommodations. With a volume of only 12 liters, this case is small yet easy to assemble when compared to other slim cases in the same class. There is plenty of room for a powerful graphics card up to 13 inches in length while tool-less drive cages make assembly quicker than ever.
With clever space utilization and engineering, two major heat sources are separated via the chassis' main chamber so CPU and graphics card can each have their own airflow path. Despite its diminutive size, the ML08 is a remarkably versatile case that can be used anywhere from being a compact desktop workstation (in vertical orientation) to a living console or HTPC (in horizontal orientation). There are even optional models of ML08 with integrated handle, making them effortlessly portable and perfect for any slim PC build.
SPECIAL FEATURES
- Highest performance capability in super slim form factor
- Optional models includes removable carrying handle (ML08B-H, ML08B-HW)
- Support graphics card up to 13 inches
- Mini-ITX motherboard & SFX PSU compatible
- Independent expansion slot design for easy assembly
- Tool-less drive cage design
- Fits in nearly any environment with horizontal or vertical orientation
FEATURE PHOTOS
Optional models includes removable carrying handle (ML08B-H, ML08B-HW)
Independent expansion slot design for easy assembly
Support a dual-slot graphics card up to 13 inches
Dual 2.5" drive slots with tool-less design
Hidden front I/O ports design with USB 3.0
Oversized vents

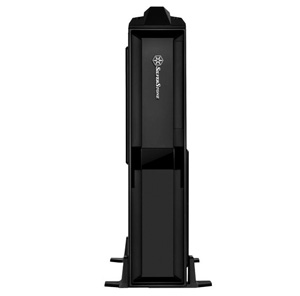

Vertical foot stands included for versatility
Features
Support graphic card up to 13 inches
One additional 3.5" or 2.5" space depending on expansion card installed
Tool-less drive cage design
Fits in nearly any environment with horizontal or vertical orientation
There are even optional models of ML08 integrated handle, making them effortlessly portable and perfect for any slim PC build.
Gallery
Specifications
| Material | Reinforced plastic outer shell, steel body | |
| Motherboard | Mini-ITX | |
| External Drive Bay | 5.25" x 1 (compatible with 3.5" x 1 or 2.5" x 2) | |
| Internal Drive Bay | 3.5" x 2 (one compatible with 2.5"), 2.5" x1 | |
| Drive Bay |
|
|
| Cooling System |
|
|
| Expansion Slot | 2 | |
| Front I/O Port |
|
|
| Power Supply | SFX & SFX-L | |
| Expansion Card | *Compatible with 13" long, width restriction – 4.78" | |
| Limitation of CPU cooler | 58mm | |
| Net Weight | 3.2kg~3.5kg | |

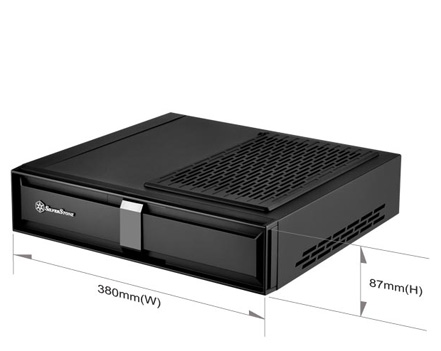

| Dimension | 380mm (W) x 87mm (H) x 370mm (D), 12 liters | |
| Extra | Support two Kensington locks | |
*Expansion card holder needs to be removed when installing expansion/graphics card wider than 4.78 inches. When system is assembled without the holder, vertical orientation of the case is recommended and transporting/shipping should be avoided. For more details, please refer to manual.
