Remote Access
  • Camius DVRs can work without the Internet if you do not need remote access.
  • When the system is connected to the Internet, you can access your DVR remotely from the PC/Mac software and Camius View smartphone app, and a web browser



Hybrid 4K 12 Channel DVR
Upgrade your analog cameras and add IP cameras and get the latest features

Camius 4K DVR bundles with a hard drive are an excellent value upgrade for your old CCTV system with coaxial wiring. Replace cameras and a DVR recorder; you get the latest technology with ultra HD video and remote access from your handheld device. You can add up to 8 Camius 4K analog cameras over coax and 4 IP cameras over the network using  Cat5E, Cat6 wires.

Designed for businesses and home security installations
  • Used not just for home surveillance but as a camera system for business, thanks to the Users Management. Businesses can have up to 30 users (the latest update). The security system administrator can give multiple users different authority levels, allowing and blocking access to certain features.
  • Email notifications
  • Push alerts, etc
Advanced features of professional system

Used not just for home surveillance but as a camera system for business, thanks to the Users Management. Businesses can have up to 30 users (the latest update). The security system administrator can give multiple users different authority levels, allowing and blocking access to certain features

Specifications:

  • Total channels supported: 12 (8 BNC, 4 IP)

  • Modes: XVR (analog + IP digital) / DVR (displays only analog cameras)

  • Compatible Cameras: CVBS (960H), AHD, CVI, TVI Analog up to 4K + Camius IP cameras

  • HDD: fits 1 internal SATA (max supported capacity 10TB)

  • Video Output: 1 x 4K HDMI, 1x VGA, 1 x CVBS (spot-out)

  • Audio, RS485, Alarm I/O: available

  • Supported Video Resolution: 4K 3840 x 2160

  • Access: PC, Mac software, web browser, iOS/Android smartphone ap

  • Easy upgrade for an existing BNC coaxial wiring
  • If you wish to add audio to this analog security system, you would need to purchase Camius audio video power cables BNCCBL-ULCL260F cable and enable audio settings on Camius DVR
Camius 4K Analog Security Camera
Advanced features

The Analog Outdoor Bullet Cameras' built-in high-performance 4K image sensor allows the production of over 8 million pixels of high-quality footage and color night vision in low light. Up to 91 degrees of super-wide coverage. Intelligent video analytics when you install it with Camius Trivault4K DVR

Camera installation

The rigid metal IP66-rated casing keeps security cameras safe and reliable. The bullet camera is easy to install or mount on the ceiling. In addition, the bullet camera tip on the casing protects the cameras from the weather (water, dust) and glare, making them perfect for outdoor use. Usually, a bullet camera is installed on the wall outdoors.

Analog Security Camera with UTC menu through the DVR display.
  • You can change the camera video output mode
  • Select between 60Hz and 50Hz format
  • Select menu language - English, Spanish, etc.
  • Control exposure, backlight compensation
  • Configure AGC, or automatic gain control, by selecting between High, Middle, and Low level
  • Select Day-Night mode
  • Select between Mirror, Flip, Rotate, or Default view mode
  • Adjust audio volume
  • Reset the analog security camera

To enable audio, you'd need to require a Camius BNCCBL-ULCL260F cable and enable audio settings on Camius DVR. (contact Camius if you wish to purchase the audio-video cables)

Camera Specs

  • BNC x 1

  • Video Resolution: 8-Megapixels video 3840 x 2160

  • Lens: 3.6mm

  • Filed of view: horizontal 91.46°, vertical 46.11°, and diagonal 109.82°

  • Supported mode: CVBS, AHD, CVI, and TVI

  • Audio: built-in mic, requires Camius BNCCBL-ULCL260F cable and enabling audio settings on Camius DVR

  • Night Vision: 66ft

  • IP66 rated for indoor and outdoor installation (metal white enclosure)

Camius 4K 8 Channel DVR comes with 3 video outputs to add a monitor/TV
  • 1 x HDMI output which supports 4K video 3840x2160
  • 1 x VGA output that supports 1080P video (1920x1080)
  • 1 x CVBS (or BNC) for Spot-out monitor to call out certain camera

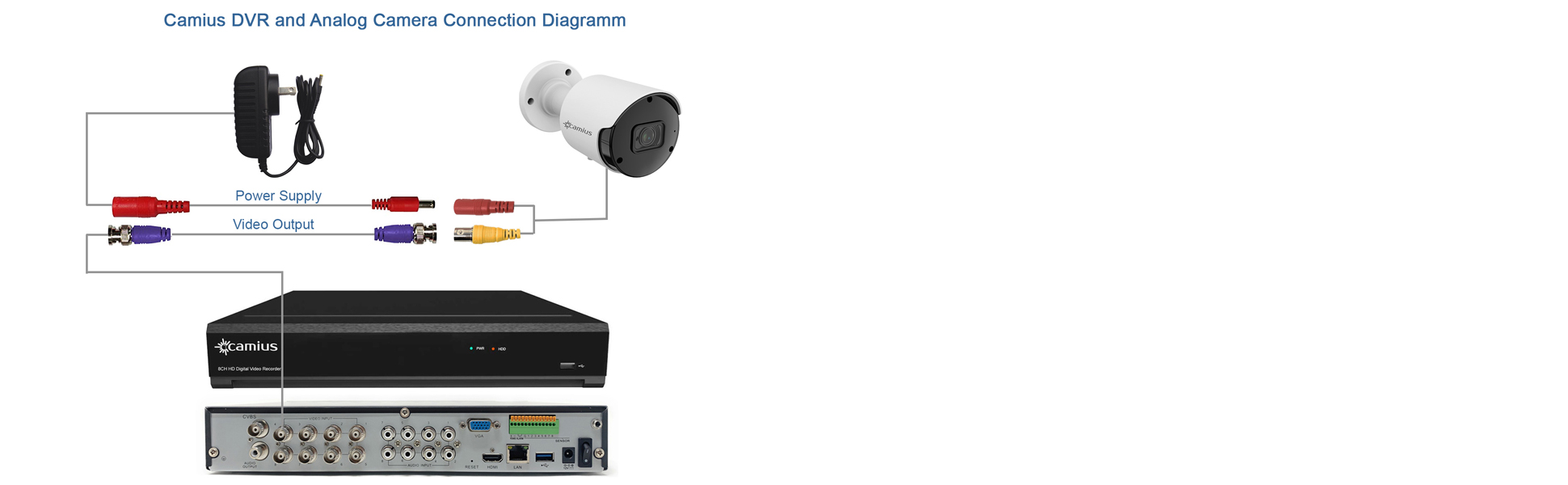

4K DVR is compatible with CVBS, AHD, CVI, TVI analog over coax  + IP cameras over the network

4K video
  • 4K analog camera [FB4KAOC] supports 4K recording video at 7fps.

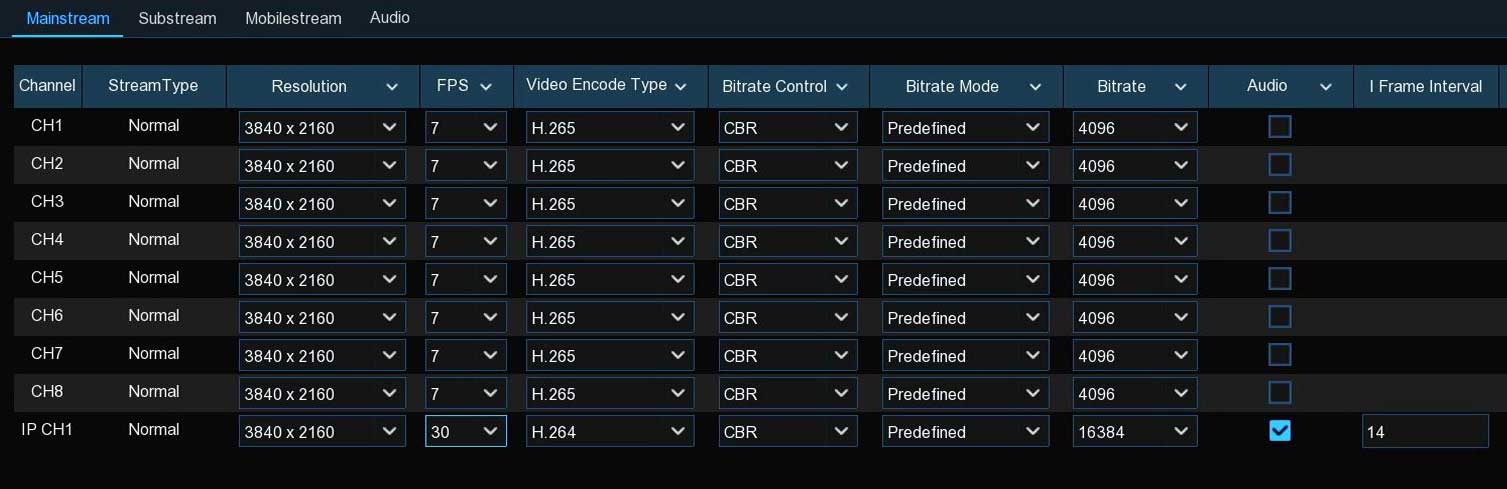

  • You can enable audio if you use Camius audio video power coaxial cable [BNCCBL-ULCL260F] sold by Camius. Select Coaxial Audio under General - Audio Input Type and  enable Audio under the DVR's Record - Encode - Mainstream
  • Start recording out of the box (normal 24/7 recording is the DVR's default setting)
  • You can enable Motion triggered recording and set your schedule
  • When you add Camius PIR IP cameras, you can enable PIR recording

Get email alerts triggered by motion detection or if the hard drive error, intelligent detection, etc

4K video display output

Upload videos and pictures to the Cloud (Dropbox / Google Drive) triggered by events

Access your footage on your DVR box with easy playback

Easy playback looking for certain footage using date, time, motion, intelligent detection. You can run the system without the Internet (off-line) if you do not need remote access from outside of you house or business.

Privacy

Privacy is at the heart of Camius security systems, your cameras will only be available to accounts you create, secured with passwords.

Security footage is stored on your hard drive as opposed to cloud-based camera systems.

Even while using the essential P2P method for connection, your system remains secured behind your password and no one else has access to this connection.

Camius security system is NDAA compliant and are suited for high-risk applications where reliability and privacy are key.

Camius Tech Support

If you have any questions or need technical assistance contact Camius 9am to 5pm PST Monday to Friday or Camius site using support or contact form. If you need a customized offer, contact Camius sales team via Camius site (fill contact form and we will reply to you in no time)
