All In One Front Panel Hub For Your PC
  • This is a multi-functional front panel reader that features three USB 3.0 ports, one USB 3.1 port, one eSATA port and 6 card slots. Fit any 5.25 inch computer case front bay. These advanced technologies are backward compatible with USB 2.0 USB 1.0 and USB 1.1

  • High speed front USB 3.0 interface for an efficient and effortless data transfer.

  • 6 card slots offer quick and easy access to the most common-used card formats, support M2, MSO, SD, MS, XD, 64G CF card.

  • High quality material ensured durability, LED indicator make you keep an eye on work status.

  • Equip with eSATA and USB 3.1 port to meet your needs.

  • Can be easily and neatly installed into a 5.25" drive bay on your desktop to give you convenient access.

For 5.25 inches Drive Bay

It can be easily mounted on 5.25 inches drive bays of your computer case of added card reading capabilities.

Built-in LED Light

LED indicator makes you easy to know the operation status.

3 x USB 3.0, USB-C

eSATA, AlI in 1 USB 2.0 High Speed Card Reader

HIGH SPEED FRONT USB 3.0 INTERFACE FOR AN EFFICIENT AND EFFORTLESS DATA TRANSFER
  • Multi-function front panel gives you direct access to your memory cards, USB 3.0, USB C, and eSATA ports on your PC. Easily transfer your videos, music, photos, data with this blazing fast gadget.Convert your unused 5.25 inch drive space into all an all-purpose fronted panel.
  • You can hot plug or hot plug to quickly access your device, and the multi-function panel hub is the perfect companion for your computer.

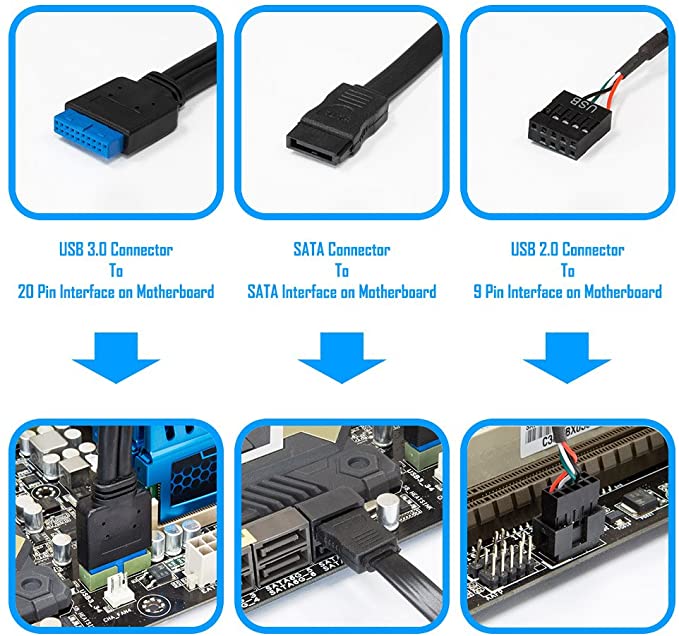

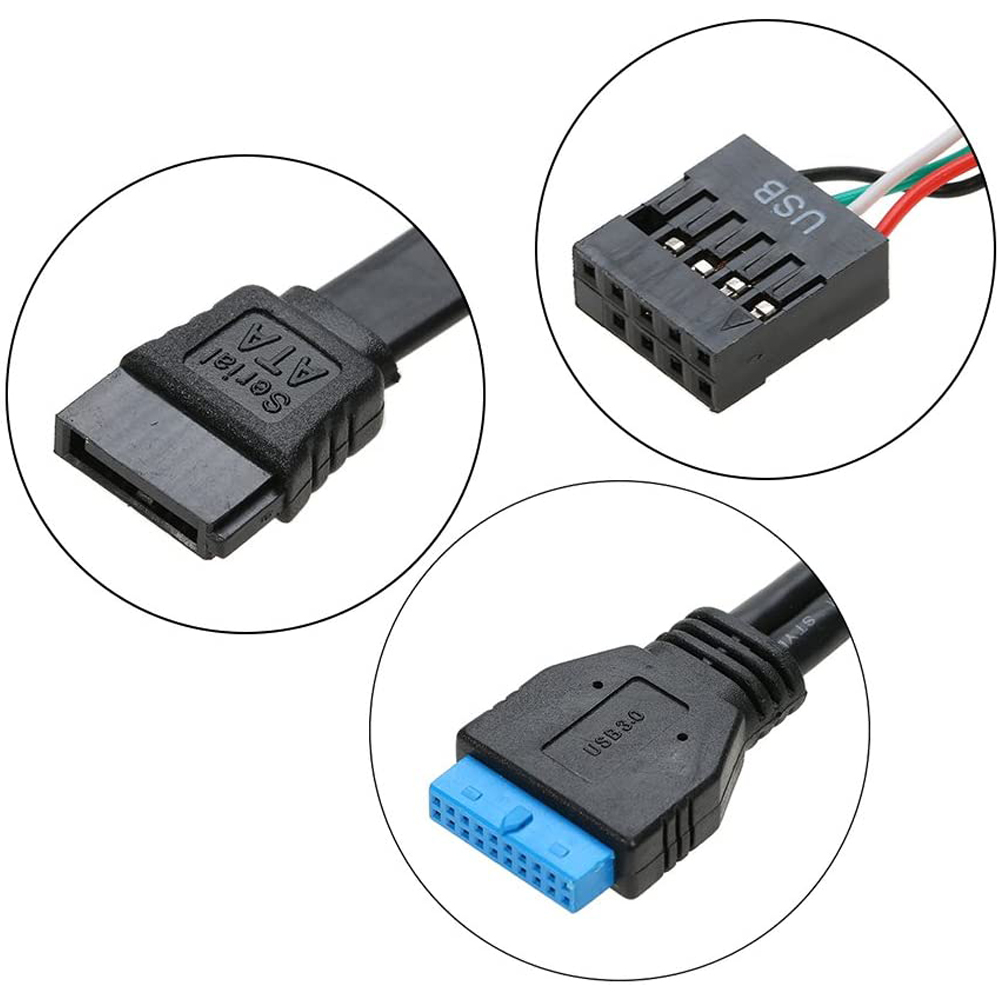

  • USB 3.0 Connector To 20 Pin Interace on Motherboard
  • SATA Connector To SATA Interface on Motherboard
  • USB 2.0 Connector To 9 Pin Interface on Motherboard

1. Remove the two front panels of the chassis;

2. Connect the corresponding cable;

  • The cable must be connected to the corresponding interface and check the connection, otherwise the front panel may not work.

3. The multi-function front panel is pushed forward;

4. Lock the screws on the side of the chassis.

eSATA TRANSMISSION INTERFACE

Support eSATA transmission interface, you can connect external mobile hard disk.

Type-C TRANSMISSION INTERFACE

The USB 3.1 Type-C interface is not limited by the front and back, and the theoretical transmission speed can reach 10Gbps.

MULTIFUNCTION CARD READER

The 6 slots card reader supports SD MMC SDHC, CF MD, MS, XD, TF, M2 (Some card may require adapter) which gives you complete accessibility.

Specification:
Reader Speed: USB 3.0
Support: M2, MSO, SD, MS, XD, 64G CF card
Package Weight: 325g / 11.46oz
Transmission Interface: USB 3.0, USB 3.1, eSATA

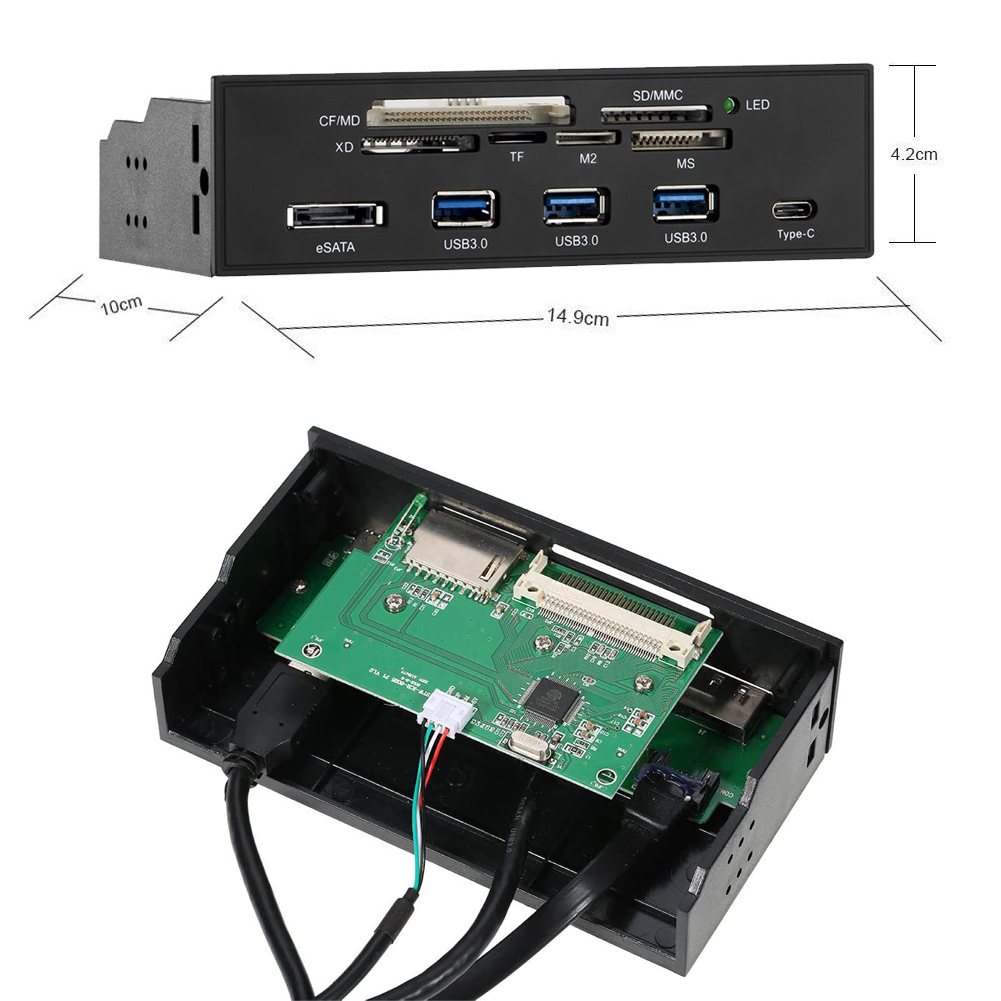

Size: 20 * 17 * 6.5cm / 7.87 * 6.69 * 2.56in (L * W * H)
Installation Location: Chassis Optical Drive Location

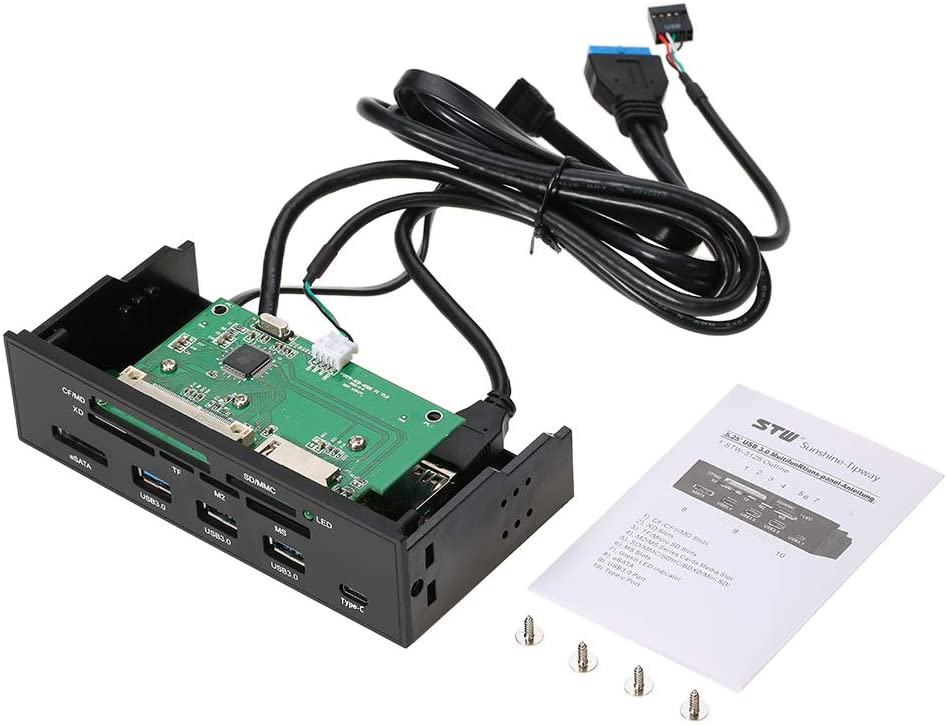

Package Included:

1 x Front Panel Internal Card Reader
4 x Screw
1 x User Manual
