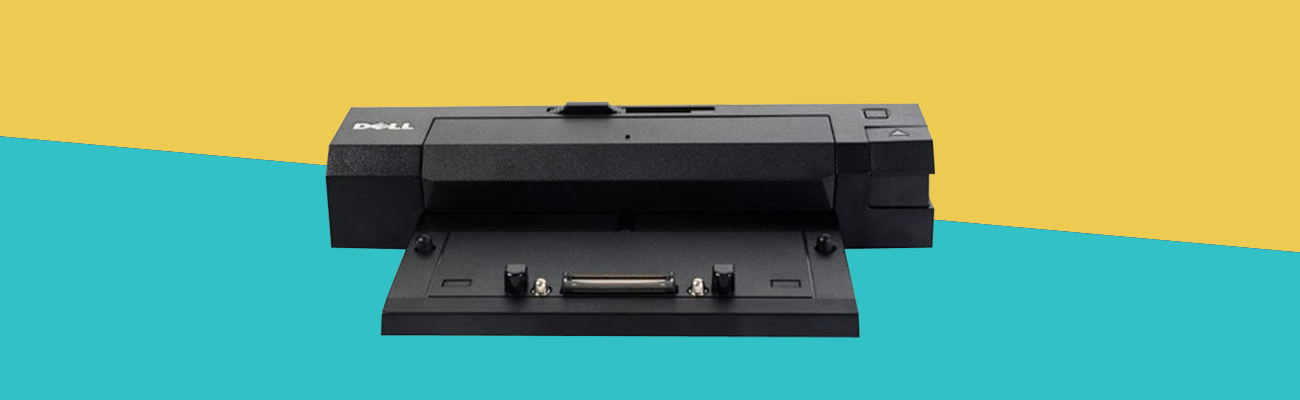

A Dell E-Port Plus Replicator is facing front.

Dell E-Port Plus Replicator

Desktop-like Experience on Laptop

The Dell E-Port Plus Replicator is an easy way to convert your Dell E-Family laptop into a desktop. It offers a docking connector for connection to your laptop, and features a host of other connectors to ensure the desktop level of connectivity:

Stick figure of RJ-45 NETWORK CONNECTOR

RJ-45 NETWORK CONNECTOR — Connects a network interface cable.

Stick figure of PARALLEL CONNECTOR

PARALLEL CONNECTOR — Connects a parallel device such as a printer.

Stick figure of DOCKING CONNECTOR

DOCKING CONNECTOR — Connects the laptop to the E-Port Plus docking device.

Stick figure of AUDIO CONNECTORS

AUDIO CONNECTORS — Connects audio headphones or speakers and a microphone.

Stick figure of USB 2.0 CONNECTORS

USB 2.0 CONNECTORS — Connect up to five USB 2.0 compliant devices, such as a USB mouse. Three USB connectors are on the left side, and two USB connectors are on the back of the E-Port Plus.

Stick figure of AC ADAPTER CONNECTOR

AC ADAPTER CONNECTOR — Connects the AC adapter.

Stick figure of DISPLAYPORT CONNECTOR

DISPLAYPORT CONNECTOR — Connects external monitors equipped with a DisplayPort interface (also HDMI and DVI monitors via dongle; available at dell.com).

Stick figure of DIGITAL VIDEO INTERFACE (DVI) CONNECTOR

DIGITAL VIDEO INTERFACE (DVI) CONNECTOR — Connects external monitors equipped with a digital video interface.

Stick figure of VGA VIDEO CONNECTOR

VGA VIDEO CONNECTOR — Connects an external monitor.

Stick figure of SERIAL CONNECTOR

SERIAL CONNECTOR — Connects serial devices, such as a mouse or handheld device.

Stick figure of PS/2 CONNECTORS (2)

PS/2 CONNECTORS (2) — Connects PS/2-compatible mouse and keyboard to the E-Port Plus. Shut down the laptop before attaching or removing a PS/2-compatible device. If the device does not work, install the device drivers from the floppy or CD that came with the device, and restart the laptop.

Stick figure of SB OR ESATA CONNECTOR

USB OR ESATA CONNECTOR — Connects and supports USB, or Dell powered E-Family or standard selfpowered eSATA devices.

Stick figure of E-MONITOR STAND CONNECTOR

E-MONITOR STAND CONNECTOR — Connects to the E-monitor stand, available at dell.com.

It works with the following Dell laptop computers:

Latitude E4200, Latitude E4300, Latitude E4310, Latitude E5400, Latitude E5410, Latitude E5420, Latitude E5430, Latitude E5500, Latitude E5510, Latitude E5520, Latitude E6220, Latitude E6230, Latitude E6320, Latitude E6330, Latitude E6400, Latitude E6400 ATG, Latitude E6410, Latitude E6410 ATG, Latitude E6420, Latitude E6420 ATG, Latitude E6430, Latitude E6430 ATG, Latitude E6500, Latitude E6510, Latitude E6520, Latitude E6530, Latitude E7240, Latitude E7440, and Latitude XT3.
