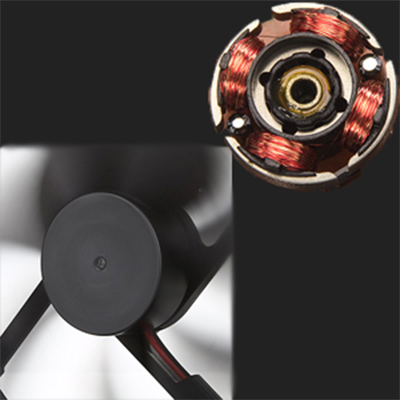

Hydraulic Long Life Bearing
lower operating noise and improve efficiency;
Excellent balance of performance and quietness;
Hydraulic Long life bearing up to over 40000Hrs;
No oil leak ,makes sure the required cooling&minimizes the vibration.
SPECIFICATIONS

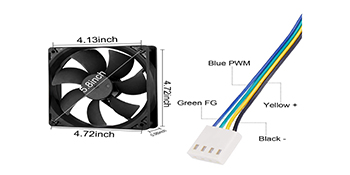

- Size: 4.72*4.72*0.98inch
- Noise: 22-38 dBA
- Connector: 4 Pin PWM
- Speed: 800-2200RPM±10%
High Pressure Enhancement Blade Design
Airflow reverse diversion ,stronger wind pressure;
Airstream will be concentrated and penetrating;
Fresh air come in/out smoother,reduce lower noise.

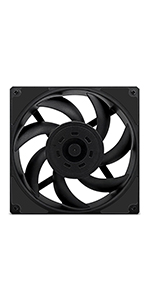

120mm fan with 4 Pin PWM Function
Speed can be adjusted from 800RPM to 2200RPM;
Mainboard will adjust fan speed according to inner temprature of pc case.
High Airflow Enhancement Design
Full speed high airflow 2200RPM: 75CFM;
Lowest speed silent airflow 800RPM: 40CFM;
Supports Automatic Motherboard Speed Control.
| Products | ||||
|---|---|---|---|---|
| Dimension | 120*120*25mm | 120*120*25 mm | 120*120*38 mm | 120*120*25mm |
| Dimension | 4.72*4.72*0.98inch | 4.72*4.72*0.98inch | 4.72*4.72*1.5inch | 4.72*4.72*0.98inch |
| Airflow | 70.5-106CFM | 38.5CFM | 147.93CFM | 70.5-106CFM |
| Speed | 600-3000 RPM±10% | 800-1600RPM ±10% | 3500RPM ±10% | 600-3000 RPM±10% |

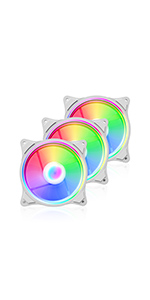

| Connector | 4Pin PWM | 4PIN PWM +3PIN ARGB | D Type 4PIN | 4Pin PWM |
| Bearing Type | Hydraulic | Hydraulic | Dual Ball | Hydraulic |
| Noise | 43dBA | 23dB | 51dB | 43dBA |
| Voltage | 12V | 12V | 12V | 12V |
| Packing | 1PCS | 3 PCS | 1PCS | 1PCS |
