Noctua NH-U12S TR4-SP3 Noctua NH-U12S TR4-SP3

Continuing the legacy of Noctua’s classic NH-U-series, the NH-U12S has become a benchmark for slim, highly compatible 120mm single tower coolers. The TR4-SP3 version is a tailored custom model for AMD’s sTRX4/TR4/SP3 platform (Ryzen Threadripper / Epyc) and features a larger contact surface as well as the latest SecuFirm2 mounting system for socket sTRX4/TR4/SP3. Topped off with the renowned quiet NF-F12 PWM 120mm fan and Noctua’s proven NT-H1 thermal compound, the NH-U12S TR4-SP3 forms a complete premium-quality solution that combines outstanding performance, superb acoustics and excellent compatibility for high-end sTRX4/TR4/SP3 systems.

Noctua NH-U12S TR4-SP3

120mm size for excellent performance and compatibility

With five heatpipes and the powerful NF-F12 120mm fan, the NH-U12S achieves outstanding cooling performance while maintaining excellent compatibility: At 158mm height and 125mm width, it is short enough to fit most modern tower cases and stays clear of the top PCIe slot on most motherboards.

Noctua NH-U12S TR4-SP3

SecuFirm2 mounting system for sTRX4/TR4/SP3

Noctua’s SecuFirm2 mounting systems have become synonymous with quality, safety and ease of use. The TR4-SP3 variant has been completely custom-designed for the new socket and is particularly easy to install: Put on the heatsink, fix the four spring-loaded screws and you’re done!

Noctua NH-U12S TR4-SP3

Offset mounting options for better PCIe clearance

In order to assure optimal compatibility with SLI and CrossFire multi-GPU setups, the SecuFirm2 mounting for sTRX4/TR4/SP3 makes it possible to offset the cooler by 3 or 6mm towards the upper edge of the motherboard, thereby increasing clearance of the top PCIe slot.

Noctua NH-U12S TR4-SP3

NF-F12 120mm Focused Flow fan

Recommended by more than 150 hardware publications and thousands of enthusiasts world-wide, the Noctua's premium quality NF-F12 Focused Flow 120mm fan is renowned to combine superb static pressure, excellent heatsink performance and surprising quietness of operation.

Noctua NH-U12S TR4-SP3

Cooler Specification

Socket compatibility

This cooler is only compatible with AMD sTRX4/TR4/SP3, and cannot be used on any other sockets and is incompatible with Noctua’s standard mounting kits.

Scope of delivery

  • NF-F12 PWM premium fan
  • Low-Noise Adaptor (L.N.A.)
  • NT-H1 high-grade thermal compound
  • SecuFirm2 sTRX4/TR4/SP3 mounting-kit
  • Anti-vibration pads and fan-clips for second NF-F12
  • Noctua metal case-badge


  • Height (without fan): 158 mm
  • Width (without fan): 125 mm
  • Depth (without fan): 45 mm
  • Height (with fan): 158 mm
  • Width (with fan): 125 mm
  • Depth (with fan): 71 mm
  • Weight (without fan): 695 g
  • Weight (with fan/s): 870 g

Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating.

Noctua NH-U12S TR4-SP3

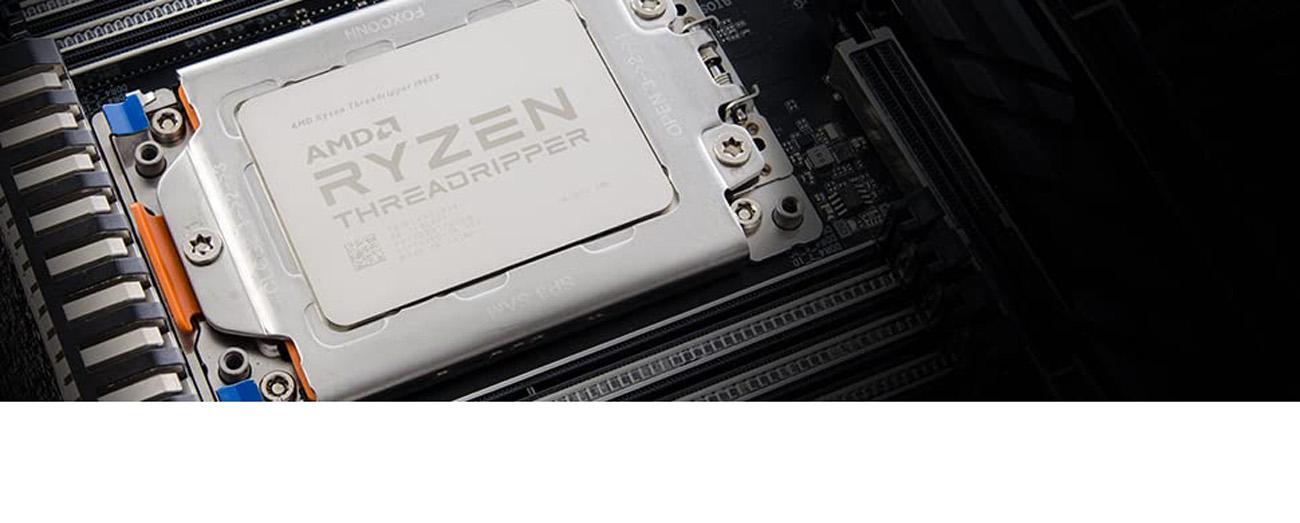

Tailored custom version for sTRX4/TR4/SP3 (Ryzen Threadripper / Epyc)

Please note that the NH-U12S TR4-SP3 is a dedicated version for the AMD sTRX4/TR4/SP3 socket. Due to its customised larger base, it cannot be used on any other sockets and is incompatible with Noctua’s standard mounting kits.

Noctua NH-U12S TR4-SP3
Noctua NH-U12S TR4-SP3
Noctua NH-U12S TR4-SP3
Noctua NH-U12S TR4-SP3
NH-U12DX i4
Noctua NH-U12S TR4-SP3
NH-U12S DX-3647
Noctua NH-U12S TR4-SP3
LGA2066 X with NM-I2011 X
LGA2011-0 & LGA2011-3 X with NM-I2011* X
LGA115x (LGA1150, LGA1151, LGA1155, LGA1156) X with NM-i115x* X X
LGA1366 with NM-I3 X with NM-I3 X X with NM-I3
LGA775 with NM-I3 X with NM-I3 X X with NM-I3
Xeon LGA2011 Narrow ILM / Xeon LGA1366 & LGA1356 X X X X X
Xeon LGA3647 X X X X X
AM2(+), AM3(+), FM1, FM2 (+) X X X X
AM4 X with NM-AM4* X
