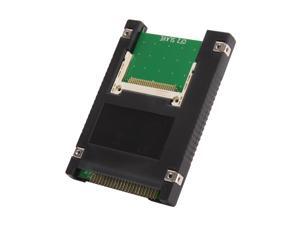

Specifications: This adapter connects a compact flash memory card to a 3.5” IDE host interface. Aiming at educational sectors, IT development, and the embedded technology enthusiast to enable the use of a compact flash card as an IDE hard drive.
Specifications: • Standard 2.5" IDE storage device form factor (100.2mm x 69.9mm x 9.8mm)
• LED indicators: Power On, Master and Slave Card Detect, and Disk Activity
• Can be a primary bootable device containing the OS and applications (depends on CF card specifications)
• Transparent to operating system and does not require any drivers
• Supports Microsoft Windows 2000, XP 32/64-bit, Server 2003 32/64-bit, Vista 32/64-bit, Server 2008 32/64-bit and Linux operating systems
• Power supply via IDE interface (44-pin SFF IDE connector, +5V)
• 44-pin SFF (Small Form Factor) IDE connector
• Supports Ultra-DMA IDE Interface
• Does not support hot swap on the IDE interface
• 2 CF card slots (Master/Slave) supporting CF Type I form factor
• Supports PIO mode, DMA and Ultra-DMA mode with data transfer rate u...

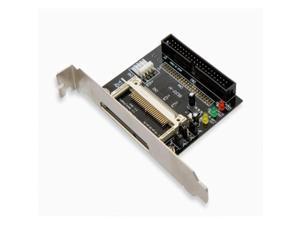

Board size: 2.40" x 2.05" x 0.03" (W, L, T)
On-board LED indicators for power-on and compact flash access
Voltage selection for +3.3V or +5V compact flash
Master or slave mode selection
Power input: +5V, floppy disk drive power connector
Fully compatible with Compact Flash Type I, Type II, and Micro-drive
40-way (2.54mm) standard IDE connector
This adapter does NOT support hot insertion of CF cards
PC or Mac with one IDE connector
MS Windows, Mac OS, Linux operating system
