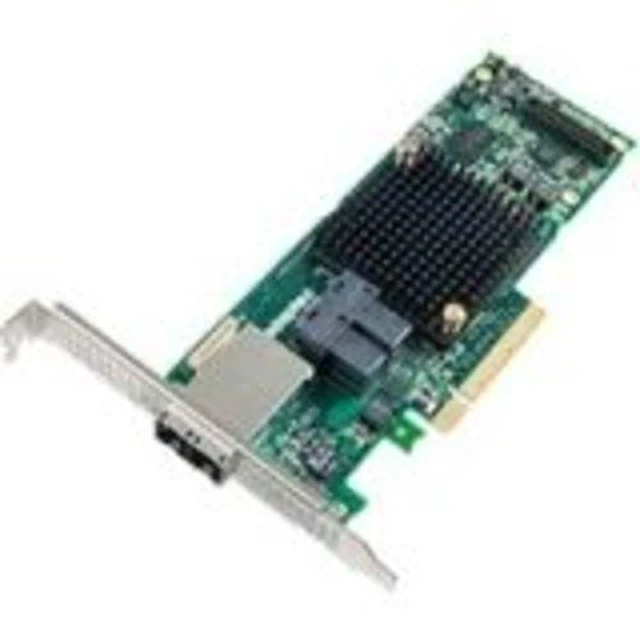

Adaptec 2277000-R Adaptec Series 8 RAID Adapters - 12Gb/s SAS - PCI Express 3.0 x8 - Plug-in Card - RAID Supported - 0, 1, 1E, 5, 6, 10, 50, 60 RAID Level - 16 Total SAS Port(s) - 2 SAS Port(s)

Adaptec 2277000-RBrand NewIncludes 3 Year WarrantyProduct # 2277000-RData center, IT, and general consumer server environments have a broad range of requirements - from basic connectivity to extreme data storage capacities. The effectiveness at which their data is accessed and protected is crucial to their ultimate success.. The Adaptec Series 8 12Gb/s RAID Adapter product family directly addresses the connectivity, performance, and data protection needs, unmatched by anything in the industry. The Adaptec Series 8 RAID adapter family features PMC's PM8063 RAID-on-Chip (ROC), which combines a x8 PCIe Gen3 interface with 12Gb/s SAS ports to enable a new generation of high- performance RAID adapters for the 12Gb/s storage ecosystem.

Adaptec Series 8 RAID adapters are available with 8, or 16 native SAS/SATA ports in an LP/MD2 form factor. The mini SAS HD connectors combined with SAS HD cables allow for greater flexibility in configuration options by supporting up to 16 native SAS/SATA ports in a Low-Profile MD2 form factor.
2277000-R Features: Host
Interface: PCI Express 3.0 x8
Controller Type: 12Gb/s
SAS RAID Supported: Yes
RAID Levels: 0
RAID Levels: 1
RAID Levels: 1E
RAID Levels: 5
RAID Levels: 6
RAID Levels: 10
RAID Levels: 50
RAID Levels: 60 Total Number of
SAS Ports: 16 Number of
SAS Ports (Internal): 2 Number of
SAS Ports (External): 2 SAS
Connector Details: 2 SFF-8643
SAS Connector Details: 2 SFF-8644
Form Factor: Plug-in Card
Platform Supported: PC
Platform Supported: SPARC
Green Compliant: Yes Green
Compliance Certificate/Authority: RoHS
