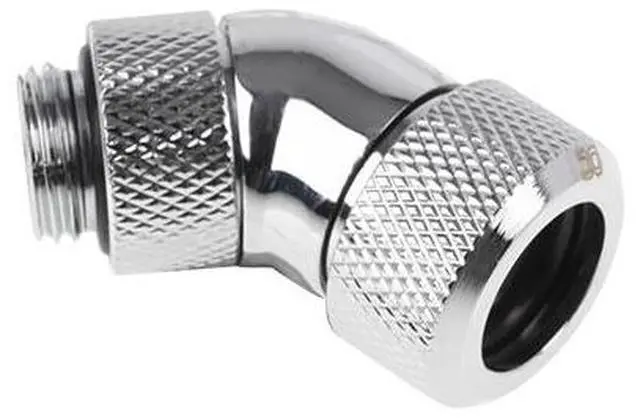

Alphacool Eiszapfen 13mm HardTube Compression Fitting 45° Rotatable G1/4 - Knurled - Chrome (17406)

The Alphacool Eiszapfen 13mm HardTube Compression Fitting 45° Rotatable G1/4 - Knurled - Chrome is a 45° angled fitting with a rotatable G1/4 thread for 13 mm hard tubes. There is one fitting per pack. Alphacool lists the model as the 45° screw-on nozzle 13mm.

Properties

• Thread: G1/4, rotatable
• Tube size: 13 mm outer diameter
• Angle: 45°
• Color: Chrome, knurled
• Material: Brass
• Dimensions: Length: 44.5 mm, Width: 21 mm

The Eiszapfen series

Alphacool calls its Eiszapfen connector series the high-end execution of its tried-and-true fittings. In its words, everything you want in a compression fitting is here: highflow, form, processing and color. It says a refusal to compromise in development and production has made the series into what it is. Fittings are available in brilliant chrome or a deep, matte black, and Alphacool says either will fit excellently into any system. This one is the chrome version. The Technical Specifications for these fittings name brass as the material.

Coating and logo

A special procedure binds the outer coating firmly to the surface. According to Alphacool that is improving the longevity of the intense color and preventing any chipping or peeling of the coating. Every connector now has the Alphacool logo, which along with their distinctive shape makes them unmistakable.

How it holds the tube

The union nut has slanted corners. They allow the O-ring to be pressed firmly against the HardTube, ensuring it sits even more securely than before, and Alphacool says this allows for greater safety in transport.

What a run needs

One side has a 1/4" thread, and Alphacool says the fitting is thereby compatible with 95% of components. The other side fits a 13 mm acrylic or brass tube. The fitting is bent in the middle, at 45°, to avoid complicated hose connections, and the threaded side is rotatable for maximum flexibility. A tube run takes two fittings, one at each end.

Notes

• Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturer's warranty.

In the box

• 1x Alphacool Eiszapfen 13mm HardTube screw-on nozzle 45° rotatable G1/4 for acrylic brass tubes - Chrome
