Alphacool Core XT45 Full Copper 360mm Radiator, 120mm, G1/4, 50mm, Black (14584)

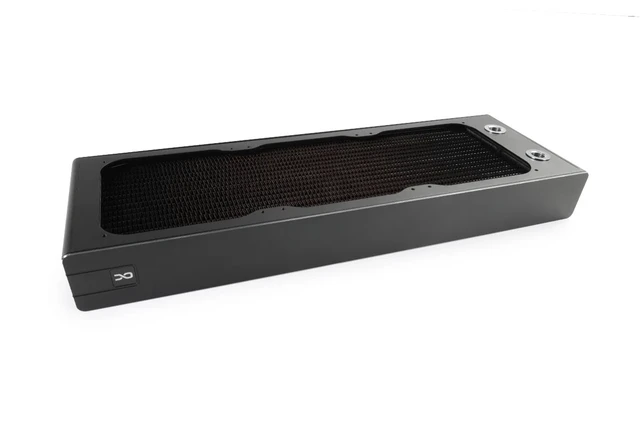

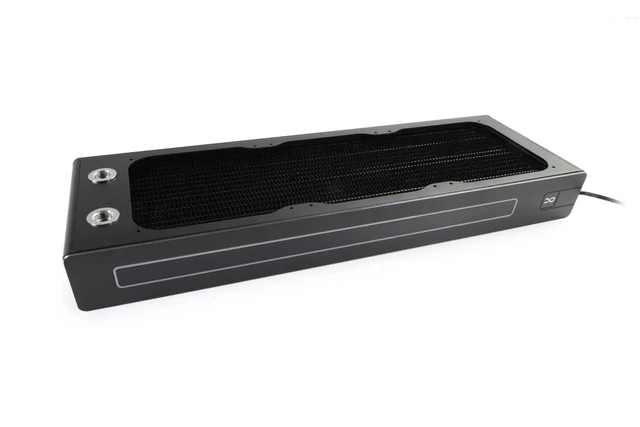

The Alphacool Core XT45 Full Copper 360mm Radiator is a 360 mm radiator for three 120 mm fans on one side, or six with fans on both sides. Its technical data gives the height as 50.00 mm. It is the first radiator in Alphacool's Core Series and comes with two magnetic side panels, one with aRGB lighting and one unlit.

Properties

• Fans: 3x 120 mm one-sided / 6x both-sided
• Size (L x W x H): 417.00 x 133.40 x 50.00 mm (+/- 0.25 mm)
• Thickness: 50.00 mm
• Ports: 3x G1/4 (1x fill and drain port included)
• Material: copper fins, pre-chambers and channels, brass threads, aluminum outer housing
• Lighting: 18 digital aRGB LEDs, 5V, 3-Pin JST

Full copper

Alphacool says its Full Copper Radiator Series has set the standard in liquid cooling performance for more than a decade. Now Alphacool introduces that build into the Core Series. As with the proven NexXxoS models, all water-bearing components of the radiator are made entirely of copper, including the fins, channels and chambers. Alphacool credits the copper with ensuring excellent thermal conductivity. Inside, an optimized structure uses sixteen instead of twelve water channels, which Alphacool says provide better flow dynamics, while the refined fin design further enhances heat transfer. Alphacool's claim for the result is noticeably improved, outstanding cooling performance.

What the loop needs

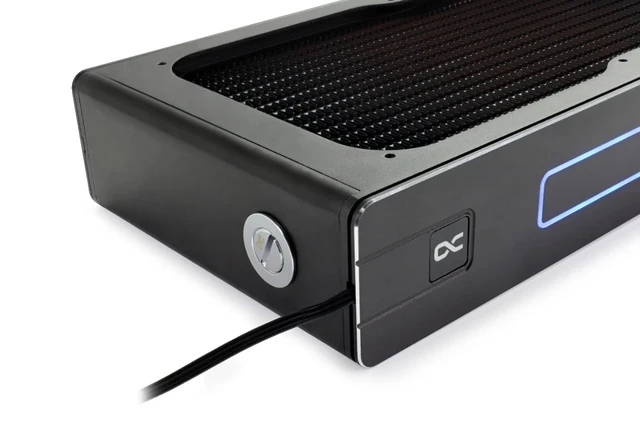

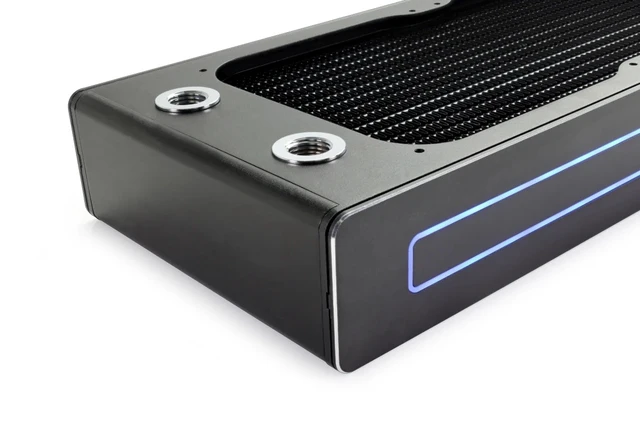

Of the radiator's three G1/4 ports, designed in Alphacool's characteristic Core style, two are IN and OUT, so it takes two fittings. Alphacool describes them as made from high-quality brass and precisely integrated into the end chamber, so that they combine durability with a clean appearance. A third G1/4 port on the opposite side is the fill and vent port. It simplifies maintenance by allowing easy filling and draining of the cooling loop, and the G1/4 plug in the box closes it. Thread length in the ports is 5 mm at most. The radiator takes 120 mm fans on M3 threads, and the box holds twelve each of the M3x30, M3x35 and M3x5mm screws.

Technical data

• L x W x H: 417.00 x 133.40 x 50.00 mm (+/- 0.25 mm)
• Quantity of cooling channels: 32
• Material cooling fins, pre-chambers & channels: copper
• Material threads: brass
• Material outer housing: aluminum
• Threads: 3x G1/4 (1x fill/drain port included, max. 5 mm thread length)
• Possible fan size: 120 mm
• Possible fan assembly: 3x one-sided / 6x both-sided
• Thread size fan mounting: M3
• Pressure tested: 0.8 Bar
• Maximum working temperature: 60 °C
• Fin density: 16 FPI
• Panel: magnetic, changeable, 1xRGB & 1x non-RGB
• aRGB: yes
• Illumination: digital aRGB LEDs
• Power connector digital aRGB LEDs: 3-Pin JST
• Power digital aRGB LEDs: 5V
• Number of digital aRGB LEDs: 18
• Weight: 1665 g
• Color: black

In the box

• 1x Core Full Copper Radiator
• 1x Radiator LED Panel
• 1x Radiator Panel
• 12x M3x30
• 12x M3x35
• 12x M3x5mm
• 1x ARGB Adapter
• 1x screw plug
