Alphacool ES Hose Teflon/PA/TPV 8/5mm - Black - 3m (10256)

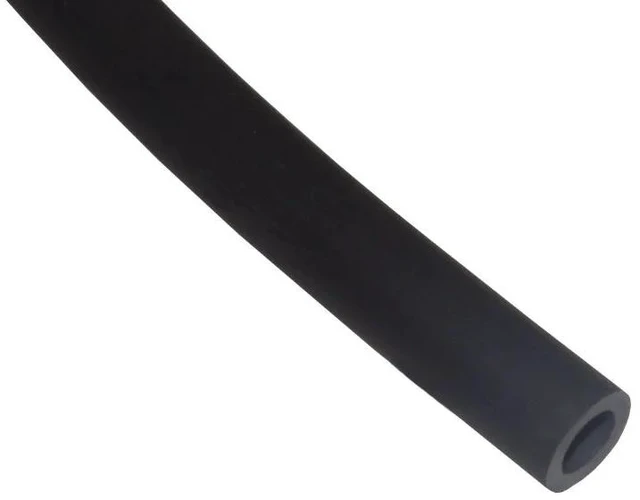

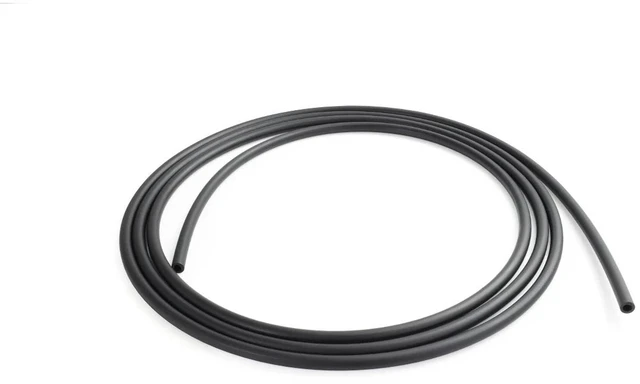

The Alphacool ES Hose Teflon/PA/TPV 8/5mm - Black - 3m is soft tubing with a 5 mm inner and 8 mm outer diameter, 3 m in the pack. It is made of Teflon (PTFE), polyamide (PA) and thermoplastic vulcanizate (TPV) in matte black. The ES hose is optimized for use in data centers, workstations and industrial cooling systems.

Properties

• Inner diameter: 5 mm
• Outer diameter: 8 mm
• Length in the pack: 3 m
• Material: Teflon (PTFE), PA and TPV
• Color: Matte black

Resistance

Alphacool says the robust construction ensures not only exceptional durability but also exceptional resistance. The hose offers high resistance to acids, bases and a wide range of aggressive substances that can occur in industrial or scientific environments. External influences such as heat, humidity or mechanical stress hardly affect how it performs. Alphacool says these properties make the ES Teflon/PA/TPV hose a sustainable and cost-effective solution for continuous use.

Temperature

Alphacool's text calls the hose significantly more temperature-resistant and says it allows operating temperatures well above 100 °C. Its table of technical data lists 100 °C (212 °F) as the maximum operating temperature. Even at higher water temperatures the hose remains dimensionally stable, which prevents it from warping in places with tighter bend radii or connections.

Laying it

The construction also gives the hose high dimensional stability, so kinks or deformations are effectively reduced, ensuring a consistent coolant flow in any operating situation. At the same time it stays flexible enough to be easily installed even in tight server racks or complex workstation setups.

Where it is used

Alphacool says the hose plays a key role in ensuring reliability and operational continuity. In its words, it meets the high demands of modern IT infrastructures, where reliable cooling is a crucial factor for hardware performance and longevity.

What a run needs

A tube run takes two fittings, one at each end, and the fitting connection size is 8/5 mm.

Technical data

• Length: 3 m
• Material hose: Teflon (PTFE), polyamide (PA) and thermoplastic vulcanizate (TPV)
• Hose size: 8/5 mm
• Hose inner diameter: 5 mm (tolerances according to DIN ISO 33-02-1 E1)
• Hose outer diameter: 8 mm (tolerances according to DIN ISO 33-02-1 E1)
• Fitting connection size: 8/5 mm
• Color: matte black
• Weight: 97 g
• Hardness: Shore 75A
• Maximum operating pressure at 60 °C (140 °F): 6.0 bar
• Maximum operating pressure at 90 °C (194 °F): 4.0 bar
• Maximum operating temperature: 100 °C (212 °F)
• Minimum operating temperature: -40 °C (-40 °F)
• Flame retardancy class: UL94-HB

In the box

• 1x Alphacool ES Hose Teflon/PA/TPV 8/5mm - Black - 3m
