Alphacool Core Geforce RTX 5090 Solid + AMP Waterblock with Backplate, G1/4, Chrome Plated Copper, ARGB (14730)
- Item #: 9SIV1R4KMK0299
- Mfr. Part #: 1026324
- Alphacool introduces its new series of graphics card water coolers for the latest Nvidia GeForce RTX generation
- Part of the Core product series, these coolers combine the highest quality with exceptional performance
- Thanks to an optimized technical design, these GPU coolers deliver outstanding cooling performance.
- Alphacool introduces its new series of graphics card water coolers for the latest Nvidia GeForce RTX generation.
- Part of the Core product series, these coolers combine the highest quality with exceptional performance.
+
+
Overview
Specs
Reviews

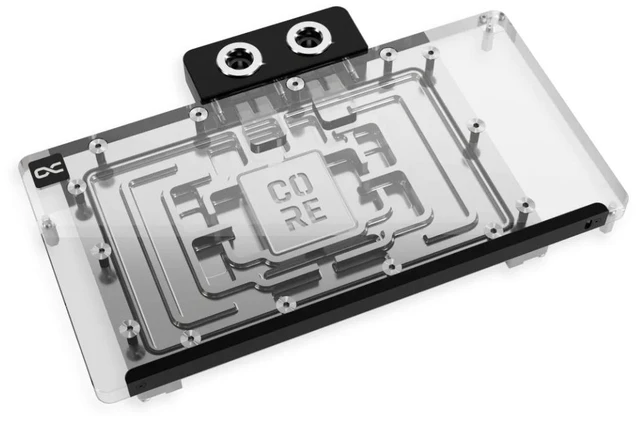

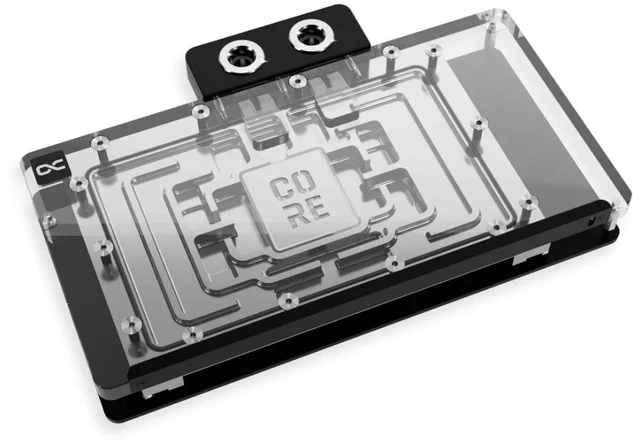

The Alphacool Core Geforce RTX 5090 Solid + AMP Waterblock with Backplate is a GPU water block for three Zotac Gaming GeForce RTX 5090 graphics cards with an Nvidia chip. They are the Solid, the Solid OC and the AMP Extreme Infinity. A chrome-plated copper block under an acrylic top cools the card, and the aluminum backplate is in the box.
Properties
- Fits: Zotac Gaming GeForce RTX 5090 Solid, Solid OC and AMP Extreme Infinity

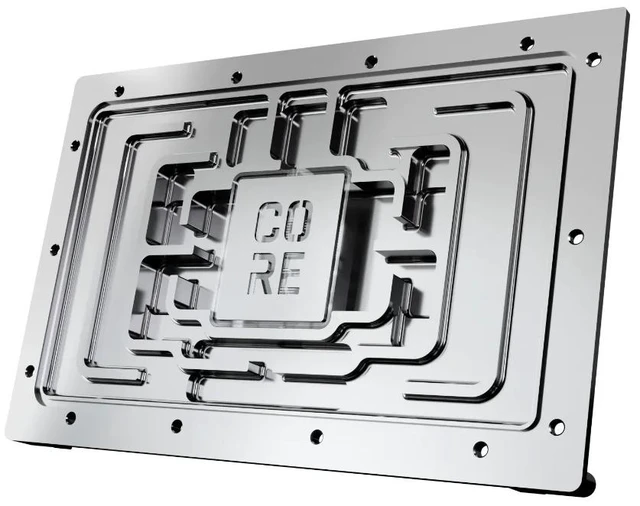

- Cold plate: Chrome-plated copper
- Top: Acrylic, transparent
- Ports: 4 x G1/4
- Backplate: Aluminum, included
- Lighting: 11 digital aRGB LEDs, 5V
Compatibility
Alphacool lists these cards for this block:
- Zotac Gaming GeForce RTX 5090 AMP Extreme Infinity (ZT-B50900B-10P)
- Zotac Gaming GeForce RTX 5090 Solid (ZT-B50900D-10P)
- Zotac Gaming GeForce RTX 5090 Solid OC (ZT-B50900J-10P)
The block was designed for one PCB layout, and card makers sometimes revise a board so that a cooler no longer fits later models. Before ordering, compare your card and its part number with the pictures in Alphacool's GPU configurator, or look it up in its Compatibility List for Nvidia cards.
Technical data cooler
- Dimensions total (L x W x H): 234.00 x 150.53 x 34.10 mm
- Material cooler: chrome-plated copper
- Material cooler top: Acrylic
- Material terminal: Acetal
- Material Connection thread: Brass
- Max working temperature: 60 °C
- Pressure tested: 0.8 bar
- Threads: 4 x G1/4
- Thickness cooler bottom: 3.25 mm
- Thickness cooling fins: 0.4 mm
- Distance cooling fins: 0.4 mm

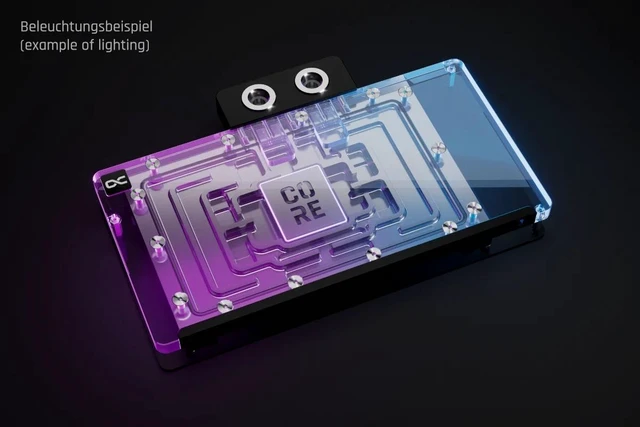

- Illumination: digital aRGB LEDs
- Power connector digital aRGB LEDs: 3-Pin JST
- Power digital aRGB LEDs: 5V
- Number of digital aRGB LEDs: 11
- Color: transparent

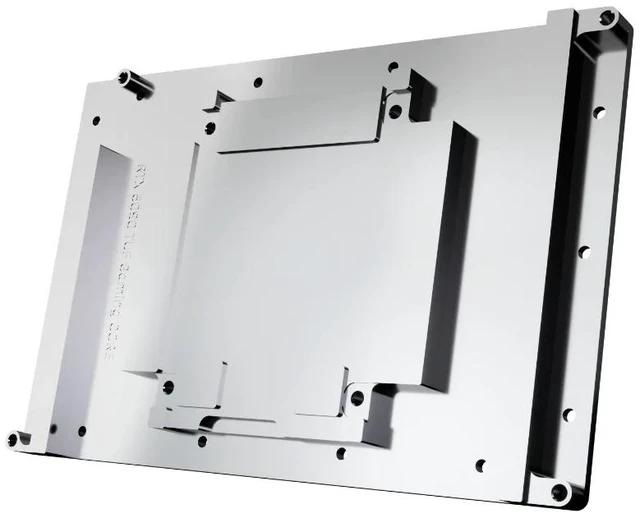

Technical data backplate
- Dimensions (L x W x H): 234.00 x 122.00 x 6 mm
- Thick backplate without spacers: 3 mm
- Material: Aluminum
Notes
- Alphacool asks that the block be used only with clear transparent water cooling fluids. It warns that the particles and additives in Pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, and that this can void the manufacturer's warranty.
- Remove the original cooler on an antistatic mat and clean the card of thermal paste and pad residues before fitting the block.
In the box
- 1x Core Geforce RTX 5090 Solid + AMP cooler
- 1x Backplate
- 2x 68x15x1mm Pad
- 1x 54x15x1mm Pad
- 4x 8x8x1mm Pad
- 2x 12x15x1mm Pad
- 1x 91x8x1mm Pad
- 1x 100x8x1mm Pad
- 2x 68x8x3mm Pad
- 1x 54x8x3mm Pad
- 1x 45x45x3mm Pad
- 1x 20x8x3mm Pad
- 1x Thermal Grease
- 1x Putty tool
- 1x ARGB Adapter
- 1x PCIe Bracket
- 1x Plug tool
- 1x Screwdriver
- 2x G1/4 Plug
- 6x M2x10mm screws
- 1x M2x5mm spring screw
- 1x washer
- 1x M2x4mm screw
