Alphacool Core Geforce RTX 5080/5070Ti Aorus Master + Windforce with Backplate GPU Water Block, G1/4, Chrome Plated Copper, ARGB (10290)
- Item #: 9SIV1R4KMK0318
- Mfr. Part #: 1026460
- Alphacool introduces its new series of graphics card water coolers for the latest Nvidia GeForce RTX generation
- Part of the Core product series, these coolers combine the highest quality with exceptional performance
- Thanks to an optimized technical design, these GPU coolers deliver outstanding cooling performance.
- Alphacool introduces its new series of graphics card water coolers for the latest Nvidia GeForce RTX generation.
- Part of the Core product series, these coolers combine the highest quality with exceptional performance.
+
+
Overview
Specs
Reviews

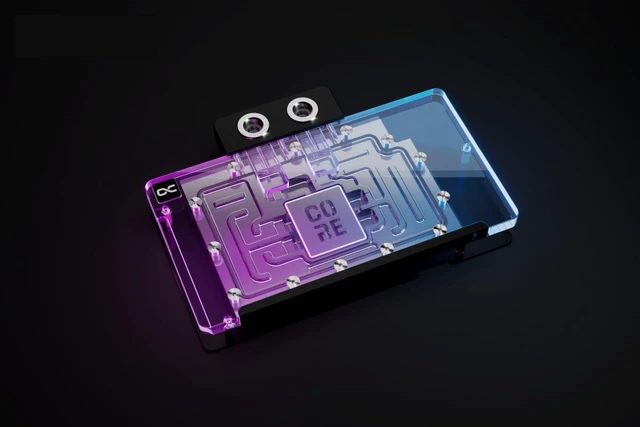

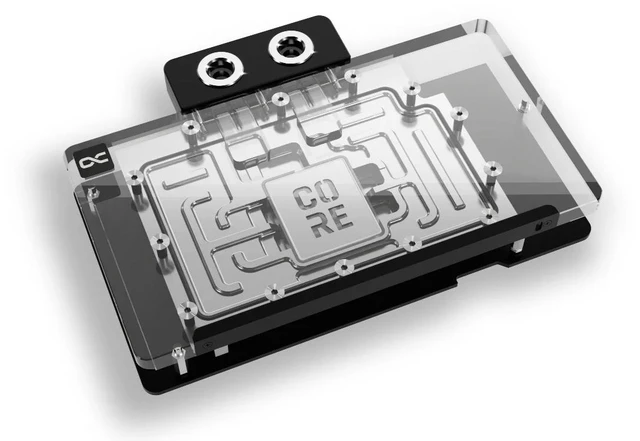

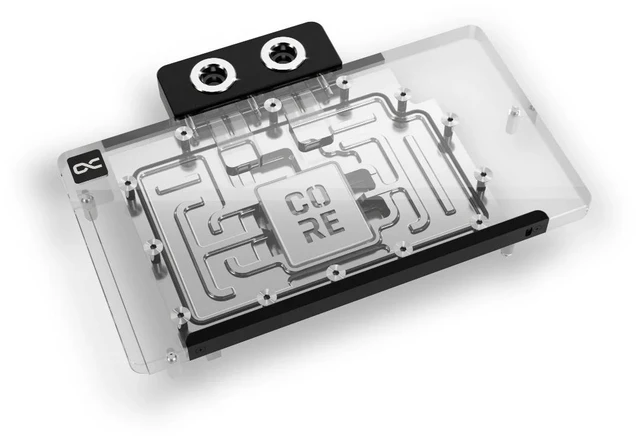

The Alphacool Core Geforce RTX 5080/5070Ti Aorus Master + Windforce with Backplate is a GPU water block for Gigabyte's Nvidia GeForce RTX 5080 and RTX 5070 Ti graphics cards. The AORUS GeForce RTX 5080 MASTER 16G and the GeForce RTX 5080 WINDFORCE OC SFF 16G are two of the nine cards on Alphacool's list, which also has GAMING OC and AERO OC cards. It cools the card with a chrome-plated copper block under an acrylic top, and the aluminum backplate is in the box.
Properties
- Fits: Gigabyte GeForce RTX 5080 and RTX 5070 Ti: AORUS MASTER, WINDFORCE, GAMING OC, AERO OC
- Cold plate: Chrome-plated copper
- Top: Acrylic, transparent
- Ports: 4 x G1/4
- Backplate: Aluminum, included
- Lighting: 8 digital aRGB LEDs, 5V
Compatibility
Alphacool lists these cards for this block:
- Gigabyte GeForce RTX 5070 Ti AERO OC 16G (GV-N507TAERO OC-16GD)
- Gigabyte GeForce RTX 5070 Ti GAMING OC 16G (GV-N507TGAMING OC-16GD)
- Gigabyte GeForce RTX 5070 Ti WINDFORCE OC SFF 16G (GV-N507TWF3OC-16GD)
- Gigabyte GeForce RTX 5070 Ti WINDFORCE SFF 16G (GV-N507TWF3-16GD)
- Gigabyte AORUS GeForce RTX 5080 MASTER 16G (GV-N5080AORUS M-16GD)
- Gigabyte GeForce RTX 5080 AERO OC SFF 16G (GV-N5080AERO OC-16GD)
- Gigabyte GeForce RTX 5080 GAMING OC 16G (GV-N5080GAMING OC-16GD)
- Gigabyte GeForce RTX 5080 WINDFORCE OC SFF 16G (GV-N5080WF3OC-16GD)
- Gigabyte GeForce RTX 5080 WINDFORCE SFF 16G (GV-N5080WF3-16GD)
The block was designed for one PCB layout, and card makers sometimes revise a board so that a cooler no longer fits later models. Before ordering, compare your card and its PCB number with the pictures in Alphacool's GPU configurator, or look it up in its Compatibility List for Nvidia cards.
Technical data cooler
- Dimensions total (L x W x H): 205.50 x 140.93 x 34.19 mm
- Material cooler: chrome-plated copper
- Material cooler top: Acrylic
- Material terminal: Nylon
- Material Connection thread: Brass
- Max working temperature: 60 °C
- Pressure tested: 0.8 bar
- Threads: 4 x G1/4
- Thickness cooler bottom: 3.25 mm
- Thickness cooling fins: 0.4 mm
- Distance cooling fins: 0.4 mm
- Illumination: digital aRGB LEDs
- Power connector digital aRGB LEDs: 3-Pin JST
- Power digital aRGB LEDs: 5V
- Number of digital aRGB LEDs: 8
- Color: transparent

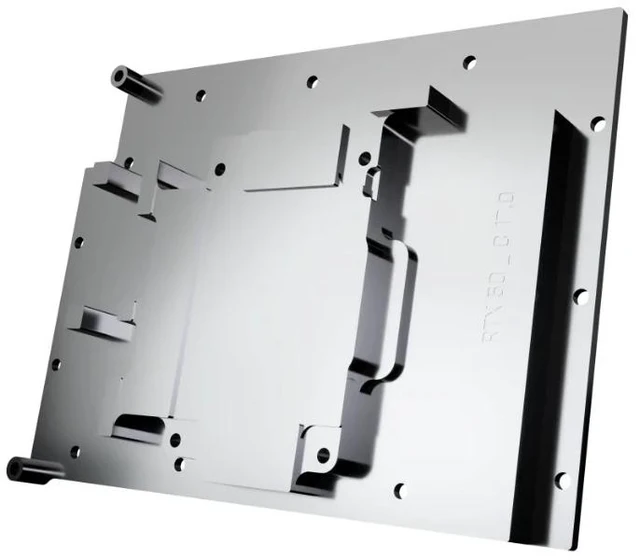

Technical data backplate
- Dimensions (L x W x H): 205.50 x 112.40 x 6 mm
- Thickness backplate without spacers: 3 mm
- Material: Aluminum
In the box
- 1x Core Geforce RTX 5080 Aorus Master + Windforce cooler
- 1x Backplate
- 9x M2x10mm screws
- 1x 55x15x1mm Pad
- 2x 26x15x1mm Pad
- 1x 83x8x1mm Pad
- 3x 15x8x1mm Pad
- 3x 8x8x1mm Pad
- 1x 55x8x3mm Pad
- 2x 26x8x3mm Pad
- 1x 45x45x3mm Pad
- 1x 20x8x3mm Pad
- 1x Thermal Grease
- 1x Putty tool
- 1x ARGB Adapter
- 1x Plug tool
- 1x Screwdriver
- 2x G1/4 Plug
- 1x PCI Bracket
- 1x Washer
- 1x M2x5mm Screw
