Alphacool ES RTX 5080 Reference 1-Slot-Design Waterblock with Backplate, G1/4, Chrome Plated Copper, ARGB (10261)
- Item #: 9SIV1R4KMK0305
- Mfr. Part #: 1026791
- Alphacool expands its Enterprise series with the latest 1-slot water coolers for the current Nvidia GeForce RTX generation
- These solutions are specifically designed for use in server enclosures and workstations, enabling efficient cooling even in densely packed systems.
- Alphacool expands its Enterprise series with the latest 1-slot water coolers for the current Nvidia GeForce RTX generation.
- Ports: 4x G1/4
- Cooling plate material: Chrome Plated Copper
+
+
Overview
Specs
Reviews

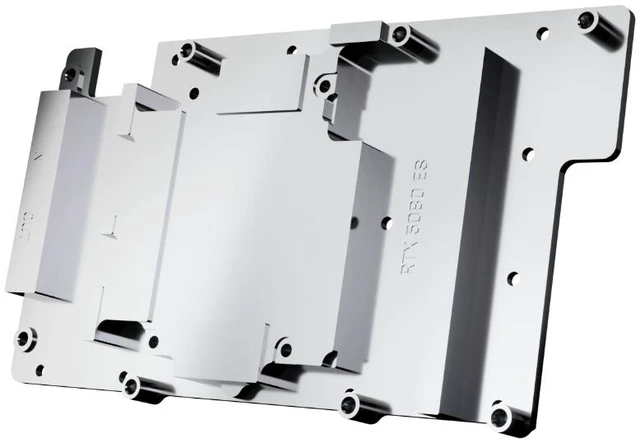

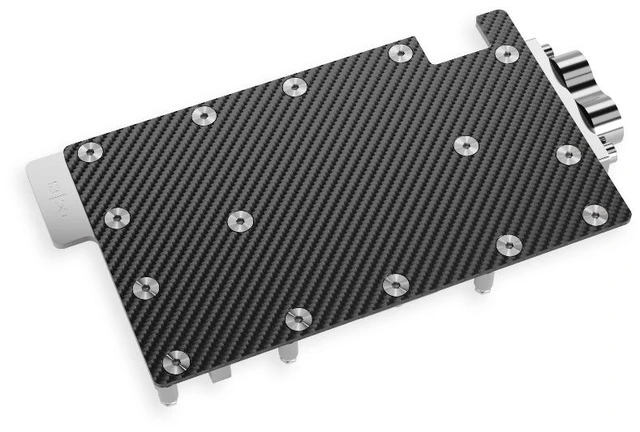

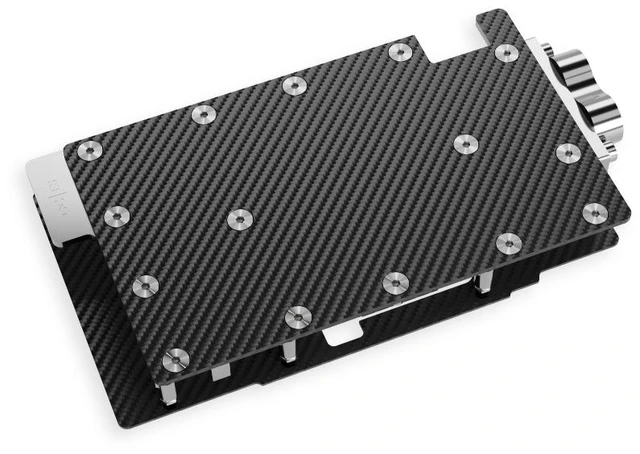

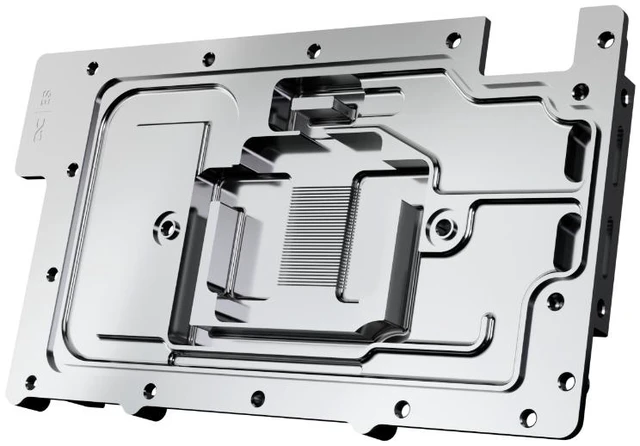

The Alphacool ES RTX 5080 Reference 1-Slot-Design Waterblock with Backplate is a GPU water block for Nvidia GeForce RTX 5080 and RTX 5070 Ti graphics cards built on the Reference board. The MSI VENTUS 3X OC and the Inno3D X3 are two of them. It is a 1-slot cooler for server cases and workstations, with both ports at the rear, and the carbon backplate is in the box.
Properties
- Fits: GeForce RTX 5080 and RTX 5070 Ti, Reference board
- Cold plate: Chrome-plated copper
- Top: Carbon plate
- Ports: 2 x G1/4, at the rear
- Backplate: Carbon, included
- Height: 1-slot, 21.19 mm
Compatibility
Alphacool lists these cards for this block:
- Inno3D GeForce RTX 5070 Ti iCHILL X3 (C507T3-16D7X-176069H)
- Inno3D GeForce RTX 5070 Ti X3 (N507T3-16D7-176068N)
- Inno3D GeForce RTX 5070 Ti X3 OC (N507T3-16D7X-176068N)
- Inno3D GeForce RTX 5070 Ti X3 OC WHITE (N507T3-16D7X-176068W)
- MSI GeForce RTX 5070 Ti 16G INSPIRE 3X OC (MS-V531 Ver:3.0)
- MSI GeForce RTX 5070 Ti 16G SHADOW 3X OC
- MSI GeForce RTX 5070 Ti 16G VENTUS 3X OC (V531-092R)
- Inno3D GeForce RTX 5080 iChill Frostbite (C50803-16D7X-1760FB)
- Inno3D GeForce RTX 5080 iChill X3 (C50803-16D7X-176069H)
- Inno3D GeForce RTX 5080 X3 (N50803-16D7-176068N)
- Inno3D GeForce RTX 5080 X3 GAMING OC (G50803-16D7X-17603930)
- Inno3D GeForce RTX 5080 X3 OC (N50803-16D7X-17603930)
- Inno3D GeForce RTX 5080 X3 OC White (N50803-16D7X-17605211)
- MSI GeForce RTX 5080 16G INSPIRE 3X OC (MS-V531 Ver:3.0)
- MSI GeForce RTX 5080 16G SHADOW 3X OC (G5080-16S3C)
- MSI GeForce RTX 5080 16G VENTUS 3X OC (V531-095R)
- MSI GeForce RTX 5080 16G VENTUS 3X OC Plus (V531-001R)
The block was designed for one PCB layout, and card makers sometimes revise a board so that a cooler no longer fits later models. Before ordering, compare your card and its PCB number with the pictures in Alphacool's GPU configurator, or look it up in its Compatibility List for Nvidia cards. Alphacool's Core block for the Reference board is the Core Geforce RTX 5080/5070Ti Reference Waterblock.
Technical data cooler
- Dimensions total (L x W x H): 186.50 x 95.75 x 21.19 mm
- Material cooler: chrome-plated copper
- Material cooler top: Carbon
- Material terminal: Brass
- Material Connection thread: Brass
- Max working temperature: 60 °C
- Pressure tested: 4 bar
- Threads: 2 x G1/4
- Thickness cooler bottom: 3.25 mm
- Thickness cooling fins: 0.4 mm
- Distance cooling fins: 0.4 mm

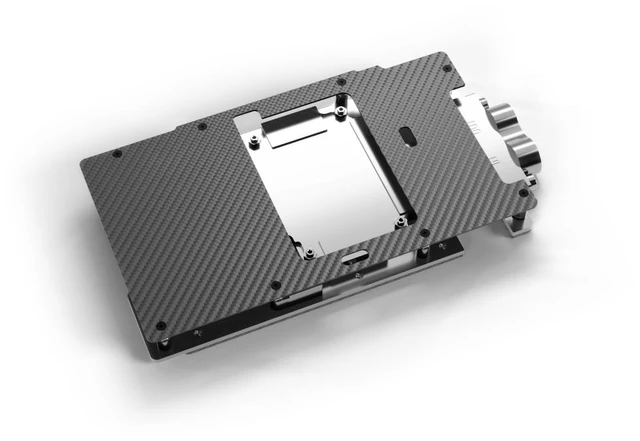

Technical data backplate
- Dimensions (L x W x H): 171.50 x 95.75 x 3 mm
- Thickness backplate without spacers: 1 mm
- Material: Carbon
In the box
- 1x ES RTX 5080 Reference 1-Slot-Design cooler
- 1x Backplate
- 1x 55x15x1mm Pad
- 2x 26x15x1mm Pad
- 1x 83x8x1mm Pad
- 3x 15x8x1mm Pad
- 1x 8x8x1mm Pad
- 1x Thermal Grease
- 1x Putty tool
- 1x PCIe Bracket
- 8x M2x8mm screws
- 4x M2x8mm screws
