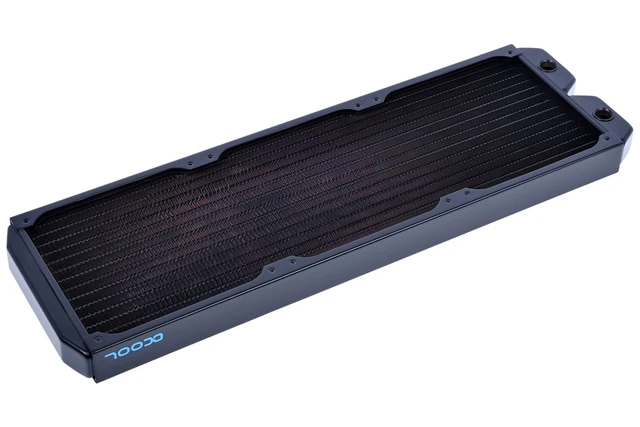

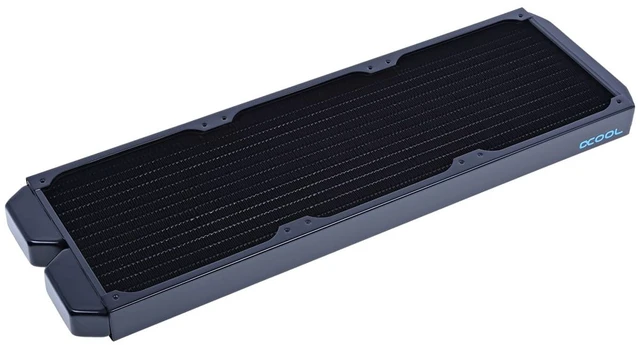

Alphacool NexXxos ST30 Full Copper Radiator 420, 140mm x 3, Triple Fan, Black

The Alphacool NexXxoS ST30 Full Copper 420mm Radiator is a 420 mm radiator for three 140 mm fans, 30 mm thick. It measures 457 x 144 x 30 mm and has M3 fan threads. Alphacool's technical data lists two G1/4 connections for it: the three fitting positions and the de-aeration plug of the thicker NexXxoS radiators are not on the ST30.

Properties

• Fans: 3 x 140 mm, M3 fan thread
• Size (L x W x H): 457 x 144 x 30 mm
• Thickness: 30 mm (Alphacool's 29 - 39mm class)
• Ports: 2x G1/4
• Material: Copper cooling channels and slats, steel housing
• Fins per inch: 16

Full copper

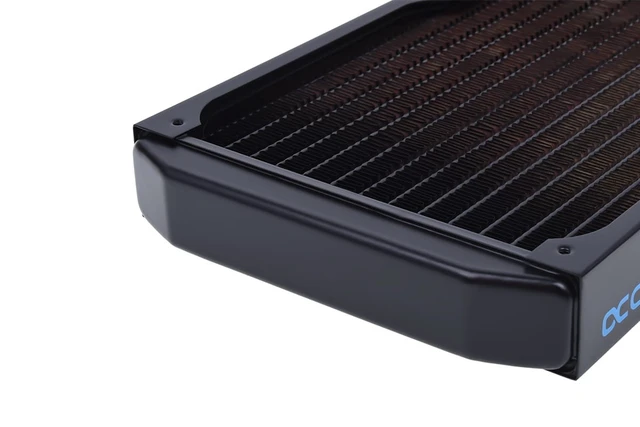

Alphacool says the new NexXxoS radiators are the first to truly deserve the "Full copper" attribute. Not only the fins and channels but the chambers also are made from copper, which covers all main parts. Alphacool claims this brings an improvement in performance where other radiators are left without a chance. By its account the material already gives an advantage over the competition, and the inner structure is up to par with it. Separated chambers give the coolant a clear direction, allowing high flow rates which improve the performance of the whole cooling loop. The chambers on the heat exchanger are flat, and thanks to the reduced overall length they increase mounting flexibility.

Ports and mounting

Versatile and easy mounting is one of the main points on which the research and development department at Alphacool focused. On the thicker radiators of the series the chamber offers three possibilities for fitting installation on both inlet and outlet (not on the NexXxoS ST30). Where they exist, less angled fittings are needed, improving flow rates and offering more mounting possibilities. Hence the radiator can even be installed in tight enclosures, where internal installation is otherwise not a possibility. A G1/4 screw plug (on all UT60 and NexXxoS Monsta) allows easy de-aeration of the radiator and hassle-free vertical installation of the heat exchanger. That threaded opening can even be used for filling, e.g. in combination with a Fillport.

What the loop needs

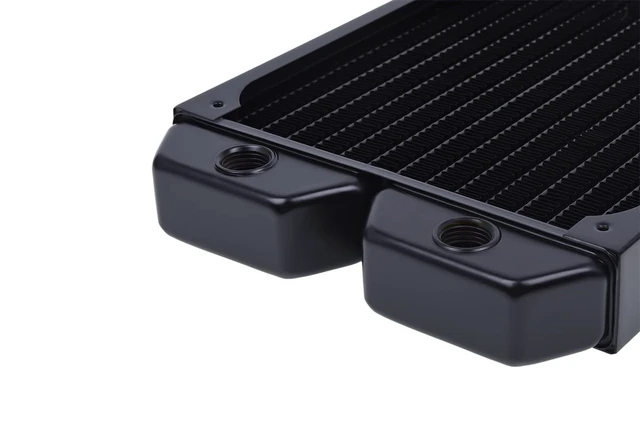

With two G1/4 connections, one inlet and one outlet, the radiator takes two fittings. There are no plugs in the box. It takes three 140 mm fans, and the box holds twelve M3x30mm and twelve M3x35mm screws for them.

The next thickness up in this fan size is the NexXxoS XT45 Full Copper 420mm Radiator.

Technical data

• Dimensions (L x W x H): 457 x 144 x 30 mm
• Quantity of cooling channels: 14
• Cooling channels: Copper
• Color: black
• Fan thread: M3
• Number of fans: 3
• Slats: Copper
• Connection: 2x G1/4
• Housing: Steel
• Manufacturer: Alphacool
• Thickness: 29 - 39mm
• Fins per inch: 16
• Pressure tested: 0.8 bar
• Fan size: 140mm

Notes

• Alphacool asks that the radiator be used only with clear, transparent water cooling fluids. It warns that the particles and additives in pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. That can also void the manufacturer's warranty.

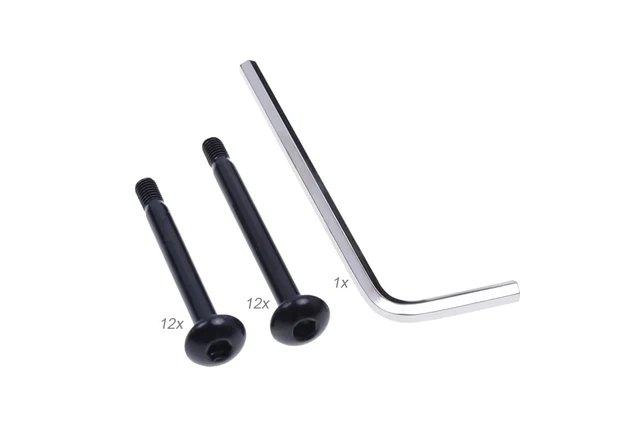

In the box

• 1x Radiator
• 12x M3 x 30mm mounting screws
• 12x M3 x 35mm mounting screws
