Alphacool NexXxoS UT60 Full Copper 420mm Radiator | White Special Edition (14208)

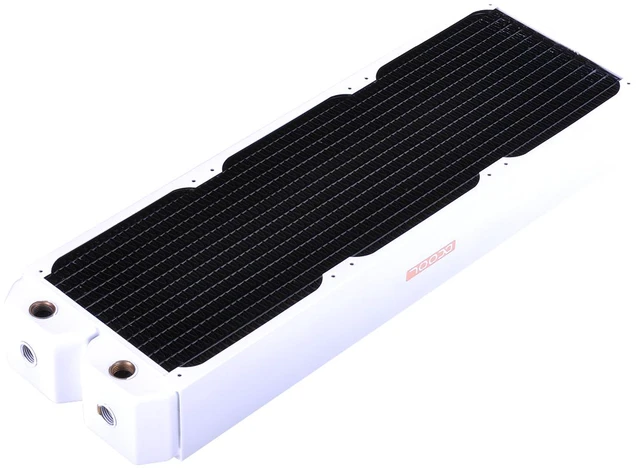

The Alphacool NexXxoS UT60 Full Copper 420mm Radiator in the White Special Edition is a 420 mm radiator for three 140 mm fans, 60 mm thick. It measures 466 x 144 x 60 mm and has seven G1/4 connections and M3 fan threads. This Special Edition is white.

Properties

• Fans: 3 x 140 mm, M3 fan thread
• Size (L x W x H): 466 x 144 x 60 mm
• Thickness: 60 mm
• Ports: 7x G1/4
• Material: Copper cooling channels and slats, steel housing
• Color: White

Full copper

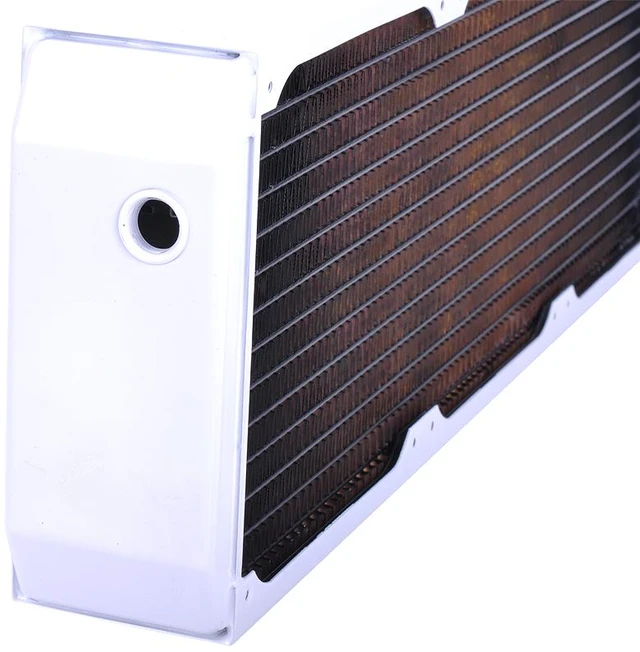

Alphacool says the new NexXxoS radiators are the first to truly deserve the "Full copper" attribute. Not only the fins and channels but the chambers also are made from copper, so all main parts are. By Alphacool's account this brings an improvement in performance where other radiators are left without a chance. In its view the material already gives an advantage over the competition, and the inner structure is up to par with the competition. The chambers are separated to give the coolant a clear direction, allowing high flow rates which improve the performance of the whole cooling loop. They are flat chambers too, and thanks to the reduced overall length of the heat exchanger they increase mounting flexibility.

Ports and mounting

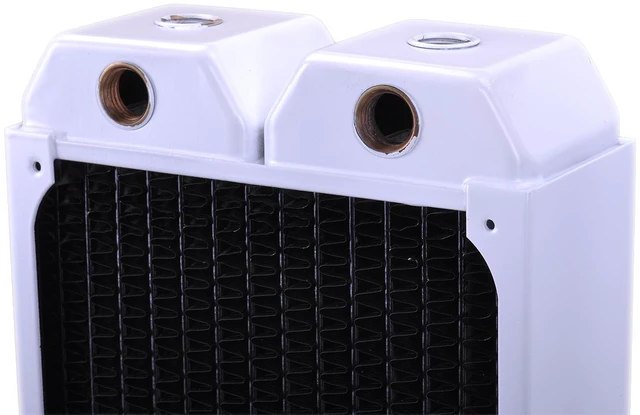

Alphacool names versatile and easy mounting as one of the main points on which its research and development department focused. On both inlet and outlet the chamber offers three possibilities for fitting installation (not on the NexXxoS ST30). With that choice less angled fittings are needed, improving flow rates and offering more mounting possibilities. Hence the radiator can even be installed in tight enclosures, where internal installation is otherwise not a possibility. On all UT60 and NexXxoS Monsta radiators a G1/4 screw plug allows easy de-aeration of the radiator and hassle-free vertical installation of the heat exchanger. Its threaded opening can even be used for filling, e.g. in combination with a Fillport.

What the loop needs

The radiator has seven G1/4 connections: three on the inlet, three on the outlet and the de-aeration port. A loop uses two of them, so it takes two fittings. It takes three 140 mm fans, and the box holds twelve M3x30mm and twelve M3x35mm screws for them.

The standard version this Special Edition is built on is the NexXxoS UT60 Full Copper 420mm Radiator.

Technical data

• Dimensions (L x W x H): 466 x 144 x 60 mm
• Quantity of cooling channels: 42
• Thickness: 49 - 69mm
• Cooling channels: Copper
• Color: white
• Fan thread: M3
• Number of fans: 3
• Connection: 7x G1/4
• Slats: Copper
• Housing: Steel
• Manufacturer: Alphacool
• Pressure tested: 0.8 bar
• Fins per inch: 10
• Fan size: 140mm

Notes

• Use the radiator only with clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses, which can also void the manufacturer's warranty.

In the box

• 1x Radiator
• 5x screw plugs
• 12x M3x30mm hexagon socket screws
• 12x M3x35mm hexagon socket screws
