Alphacool Core Geforce RTX 5080 Gamerock + Phantom Waterblock with Backplate, G1/4, Chrome Plated Copper, ARGB (10260)
- Item #: 9SIV1R4KFD3770
- Mfr. Part #: 4250197102605
- Alphacool introduces its new series of graphics card water coolers for the latest Nvidia GeForce RTX generation
- Part of the Core product series, these coolers combine the highest quality with exceptional performance
- Thanks to an optimized technical design, these GPU coolers deliver outstanding cooling performance.
- Alphacool introduces its new series of graphics card water coolers for the latest Nvidia GeForce RTX generation.
- Part of the Core product series, these coolers combine the highest quality with exceptional performance.
+
+
Overview
Specs
Reviews

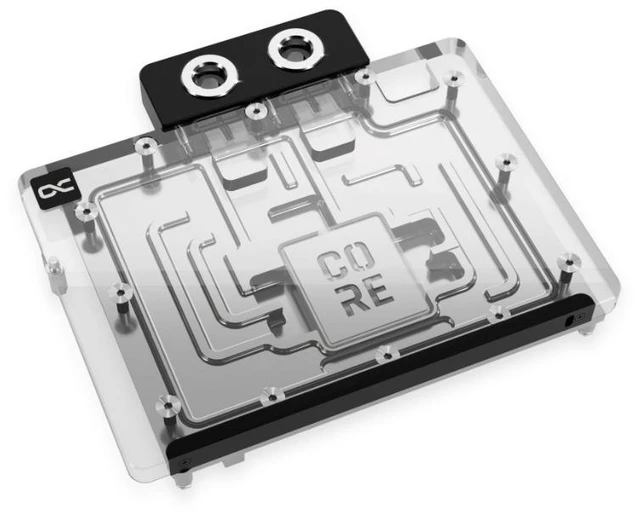

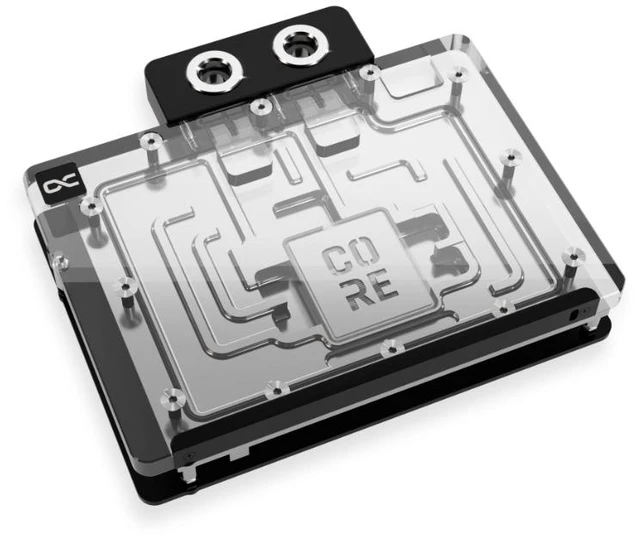

The Alphacool Core Geforce RTX 5080 Gamerock + Phantom Waterblock with Backplate is a GPU water block for Palit GameRock and Gainward Phantom graphics cards with the Nvidia GeForce RTX 5080 or RTX 5070 Ti. The Palit GeForce RTX 5080 GameRock OC and the Gainward GeForce RTX 5080 Phantom GS are two of them. A chrome-plated copper block under an acrylic top cools the card, and the aluminum backplate is in the box.
Properties
- Fits: Palit GameRock and Gainward Phantom, GeForce RTX 5080 and RTX 5070 Ti

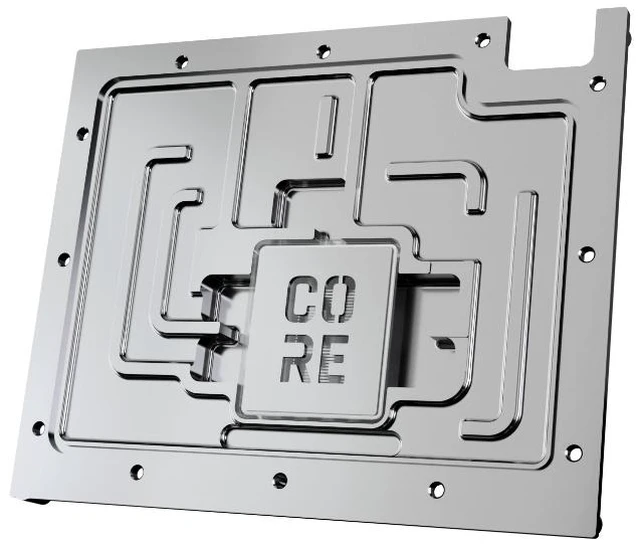

- Cold plate: Chrome-plated copper
- Top: Acrylic, transparent
- Ports: 4 x G1/4
- Backplate: Aluminum, included

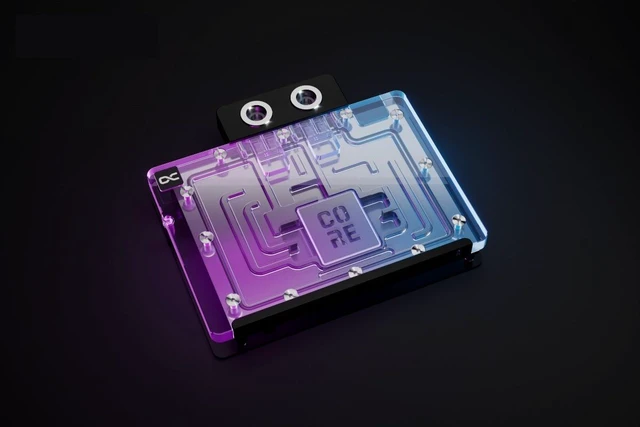

- Lighting: 8 digital aRGB LEDs, 5V
Compatibility
Alphacool lists these cards for this block:
- Gainward GeForce RTX 5070 Ti Phantom (NE7507T019T2-GB2030P)
- Palit GeForce RTX 5070 Ti GameRock (NE7507T019T2-GB2030G)
- Palit GeForce RTX 5070 Ti GameRock OC (NE7507TH19T2-GB2030G)
- Gainward GeForce RTX 5080 Phantom (4915 / NE75080019T2-GB2030P)
- Gainward GeForce RTX 5080 Phantom GS (4908 / NE75080T19T2-GB2030P)
- Palit GeForce RTX 5080 GameRock (NE75080019T2-GB2030G)
- Palit GeForce RTX 5080 GameRock OC (NE75080T19T2-GB2030G)
The block was built for one PCB layout. A card maker may revise a board slightly, and the cooler then no longer fits the later model. So match your card and its PCB number against the pictures in Alphacool's GPU configurator, or find the card in its Compatibility List for Nvidia cards, before you order.
Technical data cooler
- Dimensions total (L x W x H): 173.50 x 154.03 x 34.07 mm
- Material cooler: chrome-plated copper
- Material cooler top: Acrylic
- Material terminal: Nylon
- Material Connection thread: Brass
- Max working temperature: 60 °C
- Pressure tested: 0.8 bar
- Threads: 4 x G1/4
- Thickness cooler bottom: 3.25 mm
- Thickness cooling fins: 0.4 mm
- Distance cooling fins: 0.4 mm
- Illumination: digital aRGB LEDs
- Power connector digital aRGB LEDs: 3-Pin JST
- Power digital aRGB LEDs: 5V
- Number of digital aRGB LEDs: 8
- Color: transparent

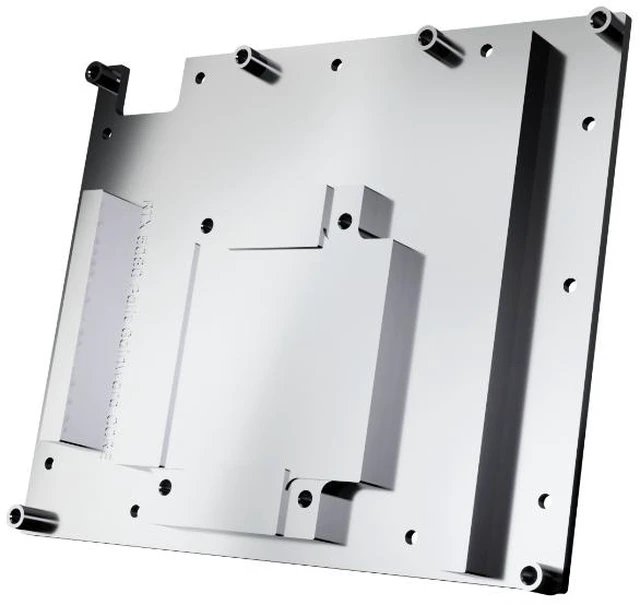

Technical data backplate
- Dimensions (L x W x H): 173.50 x 154.03 x 6 mm
- Thickness backplate without spacers: 3 mm
- Material: Aluminum
Notes
- Run the block only with clear, transparent water cooling fluids, Alphacool asks. It warns that the particles and additives in Pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can also void the manufacturer's warranty.
- Per the manual, the original cooler comes off on an antistatic mat, and thermal paste and pad residues are cleaned from the card with a solvent such as isopropanol alcohol.
- During assembly, make sure taller parts on the card have enough space around them.
In the box
- 1x Core Geforce RTX 5080 Gamerock + Phantom cooler
- 1x Backplate
- 1x 55x15x1mm Pad
- 2x 27x15x1mm Pad
- 1x 116x8x1mm Pad
- 1x 65x8x1mm Pad
- 3x 27x8x3mm Pad
- 1x 55x8x3mm Pad
- 1x 45x45x3mm Pad
- 1x Thermal Grease
- 1x Putty tool
- 1x ARGB Adapter
- 1x PCIe Bracket
- 1x Plug tool
- 1x Screwdriver
- 2x G1/4 Plug
- 11x M2x10mm screws
