Alphacool Apex 17W/mK Thermal Grease 20g, 17 W/mK, Grey (13096)

The Alphacool Apex 17W/mK Thermal Grease 20g is a gray thermal paste with a thermal conductivity of 17 W/mK, delivered in a 20g container with a screw cap. It is electrically non-conductive and suitable for high contact pressures. The same grease also comes in a 100g container.

Properties

• Thermal conductivity: 17 W/mK
• Amount: 20g
• Color: Gray
• Operating temperature: -40 °C to 120 °C
• Max working pressure: 40 psi

Who it is for

The Apex grease is aimed at all users who want to achieve optimum performance with their system. Alphacool calls this high-pressure thermal compound the clear favorite when performance and ease of processing are required.

Application

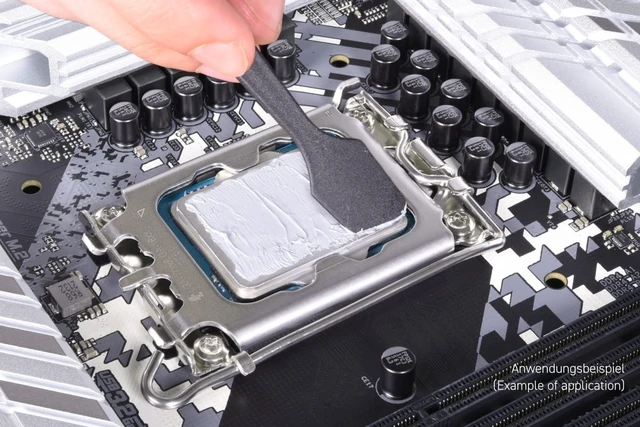

Alphacool says the grease can be optimally processed due to its high viscosity. To apply the thermal paste perfectly, a plastic spatula or a comparable tool should be used. A spatula is not included in the scope of delivery.

Characteristics

Alphacool says the grease has an extremely high thermal conductivity, making it one of the most powerful thermal greases on the market by its account. Only liquid metal thermal pastes offer better thermal conductivity, it says. The amount of thermal paste is sufficient for several applications. What is left can be stored in the container to protect it from drying out. In addition, the grease is non-caustic. If a small amount of paste spills while applying, Alphacool rates damage to the hardware as highly unlikely.

Areas of application

What Alphacool calls its high-performance thermal compound can be used to cool all types of electronic components. That means CPUs and graphics cards, and also the components of Playstation and Xbox game consoles. Alphacool says those can be cooled too and thus significantly improved in terms of their performance and durability.

Technical data

These technical specifications are Alphacool's. Its density unit, g/cc, is the same as g/cm3.

• Volatilization Rate (24H@200°C)%: less than 0.5
• Density (g/cc): 3.2 (Test method ASTM D792)
• Viscosity (mPa.s): 150~200*10³ (Test method ASTM D2196)
• Continuous Using Temperature (°C): -40 °C to 120 °C
• Breakdown Voltage (V/mil): 250 (Test method ASTM D149)
• Thermal Impedance (°C in 2/W): 0.1 +/- 0.01 (Test method ASTM D5470)
• Max. working pressure (psi): 40
• Color: gray
• Quantity: 20g

In the box

• 1x Alphacool Apex Thermal Grease, 20g
