Alphacool Eisbecher Aurora D5 Acetal/Glass - 150mm incl. Alphacool VPP Apex D5 Reservoir, G1/4, 150 mm, Borosilicate Glass (13327)

The Alphacool Eisbecher Aurora D5 Acetal/Glass - 150mm incl. Alphacool VPP Apex D5 is a 150mm glass tube reservoir with an integrated pump top for powerful D5 pumps, and it comes with a VPP Apex pump. It holds 180 ml and measures 142 x 77 x 77 mm. The same reservoir without a pump is the Eisbecher Aurora D5 150mm, and the taller one with pump is the 250mm with VPP Apex.

Properties

• Pump: VPP Apex included, 2500 - 4500 RPM
• Capacity: 180 ml
• Ports: 5x G1/4 inner thread (1x IN, 4x OUT)
• Size (L x W x H): 142 x 77 x 77 mm
• Maximum flow rate: 340 l/h

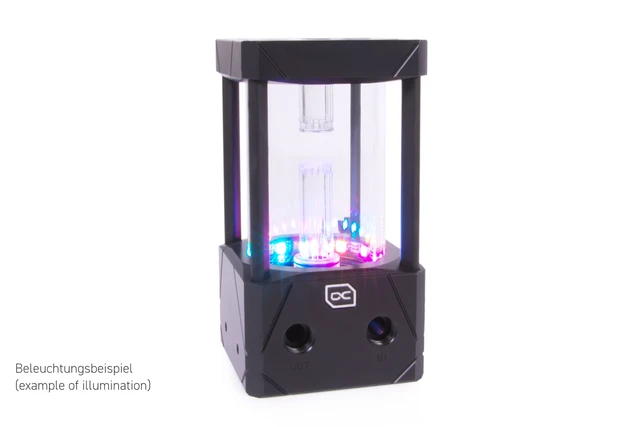

• Lighting: 12 digital aRGB LEDs, 5V

What the loop needs

The pump is in the box, so the loop still needs fittings for the G1/4 ports, tube and coolant, plus a SATA plug from the power supply and a 4-pin PWM header. Of the five ports, every opening you do not need is closed with a screw plug, and three screw plugs are included. For refilling, the manual recommends only clear cooling liquids from Alphacool's own production (CKC, Tec Protect or Eiswasser Crystal, no UV) or pure distilled or osmosis filtered water.

Technical Data

• L x W x H: 142 x 77 x 77 mm
• Pump Compatibility: D5
• Capacity: 180 ml
• Material Pump Top & Cover: Acetal
• Material Tube: Glass
• Material Framing Bar: Aluminum
• Connection: 1x G1/4 inner thread (IN) / 4x G1/4 inner thread (OUT)
• Maximum Working Temperature: 60 °C
• Pressure Tested: 0.8 Bar
• Quantity of Digital aRGB LEDs: 12
• Power Digital aRGB LEDs: 5V
• Power Connector Digital aRGB LEDs: 3-Pin JST + 3-Pin 5V
• Weight: 567 g
• Color: Black

Technical Data VPP Apex

• Dimensions (L x W x H): 65 x 65 x 41 mm
• Pump Material: Synthetic material
• Pump Cover Material: Aluminum
• Axle Material: Ceramics
• Connections: 4-Pin PWM | SATA
• Rotational Speed: 2500 - 4500 RPM
• Cable Lengths: 4-Pin PWM - 48 cm | SATA - 48 cm
• Operating Voltage: 8-13V DC / 14W IP32
• Starting Voltage: 12V DC
• Maximum Pumping Head: 4.25 m
• Max Flow: 340 l/h
• Max Working Temperature: 60 °C
• Net Weight: 276 g
• Color: Black

Notes

• Note on application: please use the reservoir only in conjunction with clear, transparent water cooling fluids. Alphacool warns that the particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

In the box

• 1x Alphacool Eisbecher Aurora D5 Acetal/Glass - 150mm, black
• 1x VPP Apex pump, black
• 4x M3x5 screws
• 12x M4x8 screws
• 4x M4x12 screws
• 4x M4 nuts
• 2x 120mm Fan bracket
• 2x 120 - 140mm Fan bracket
• 2x Stand bracket
• 3x Screw plug
• 1x Allen key
• 1x Plug tool
• 1x Digital-RGB adapter
• 1x O-Ring 53x3.5 pump
• 1x pump mounting
