Alphacool Core Double-Sided Adhesive Thermal Pad - 50x50x0.25mm, 1W/mK, White (13524)

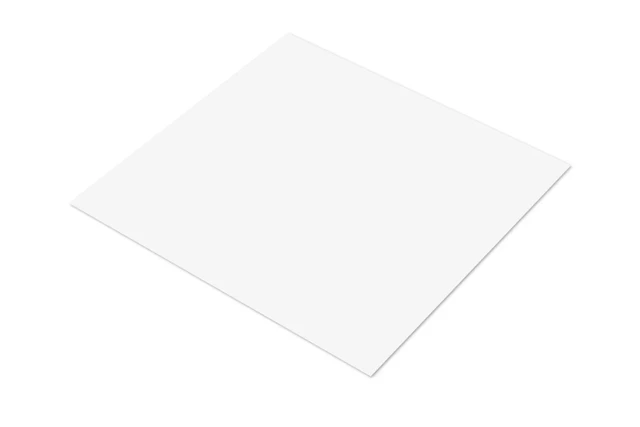

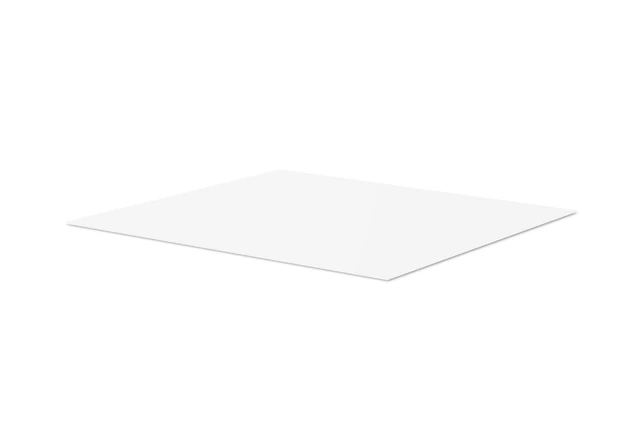

The Alphacool Core Double-Sided Adhesive Thermal Pad - 50x50x0.25mm is a thermal pad that sticks on both sides, 50 x 50 mm in area and 0.25 mm thick. Its thermal conductivity is 1 W/mK ±10%. One white pad is in the pack, and it can be cut to the size you need.

Properties

• Size (L x W x H): 50 x 50 x 0.25 mm
• Thermal conductivity: 1 W/mK ±10%
• Adhesive: Both sides
• Carrier: Fiberglass mesh
• Color: White
• Pieces in the pack: 1

What it is for

Alphacool's double-sided adhesive Core pad can be used to cool electronic components of all kinds, anywhere where it is important to dissipate waste heat effectively. Alphacool says this significantly improves the performance and durability of those components. The material itself is sticky, and installation is made much easier thanks to that stickiness, which Alphacool calls tackiness.

Flexible and powerful

Alphacool calls the thermal conductive pad reliable and powerful due to its material composition. With its low thickness it offers a wide range of application possibilities, and it can be flexibly cut to size to suit individual needs. The adhesive nature enables effortless assembly and mounting of electrical components such as DDR modules, motherboard components or power supplies.

Material and limits

The structure of the pad is a glass fiber fabric, which Alphacool's table lists as the reinforcement carrier. Its continuous operating temperature runs from -30 to +120 °C, and in short-term operation of 30 seconds it takes 180 °C. Alphacool gives the holding force as more than 3000 minutes and the 180° peel adhesion on aluminum as more than 16 N per 25 mm of width.

Technical data

• Dimensions (L x W x H): 50 x 50 x 0.25 mm
• Thermal Conductivity (ASTM D5470): 1 W/mK ±10%
• Thickness (ASTM D374): 0.25 mm
• Reinforcement Carrier: Fiberglass mesh
• Continuous Working Temperature: -30~+120 °C
• Short time use temperature (30sec): 180 °C
• Density (ASTM D792): 1.2 g/cm³
• Holding Power 1000g@25° Cusing 1 in² (PSTC-7): >3000 min
• 180° Peeling Strength (aluminum) (PSTC-101): >16 N / 25mm
• Dielectric Breakdown Voltage (AC) (ASTM D149): 3 KV ±10%
• Thermal Impedance @10psi (ASTM D5470): 1.26 C-in² / W
• Thermal Impedance @30psi (ASTM D5470): 1.06 C-in² / W
• Thermal Impedance @50psi (ASTM D5470): 1.05 C-in² / W
• Color: white

In the box

• 1x Alphacool Core double sided adhesive thermal pad 50x50x0.25mm
