Alphacool Eisball Addressable RGB - Acryl with D5 VPP655 PWM Reservoir, G1/4 (13795)
- Item #: 9SIV1R4KCZ1017
- Mfr. Part #: 4250197137959
- The Alphacool Eisball reservoir with integrated pump presents itself with a completely unique design
- With a digital RGB ring that runs completely around the circumference of the Eisball, beautiful eye-catching illumination is guaranteed
- Thanks to the versatile mounting options, the Eisball can be accommodated in many cases.
- The Alphacool Eisball reservoir with integrated pump presents itself with a completely unique design.
- With a digital RGB ring that runs completely around the circumference of the Eisball, beautiful eye-catching illumination is guaranteed.
+
+
Overview
Specs
Reviews

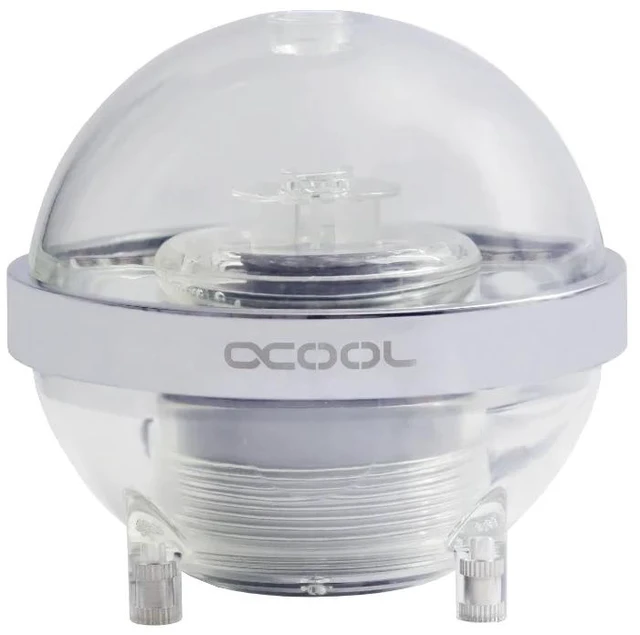

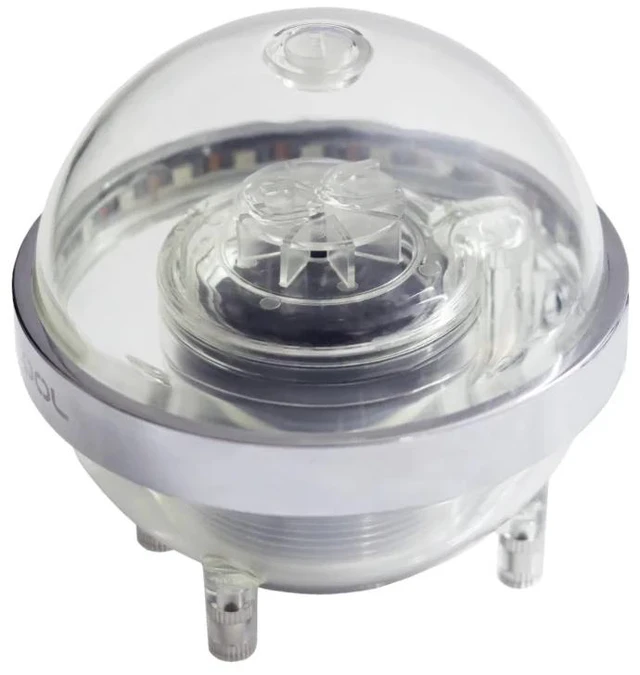

The Alphacool Eisball Addressable RGB - Acryl with D5 VPP655 PWM is a spherical 700 ml reservoir with an integrated pump top and the Eispump D5 VPP655 already pre-installed. Alphacool's note: the Eisball cannot be operated upside down with the VPP655 pump! The Eisball without a pump is the Eisball D5/VPP Ready.
Properties

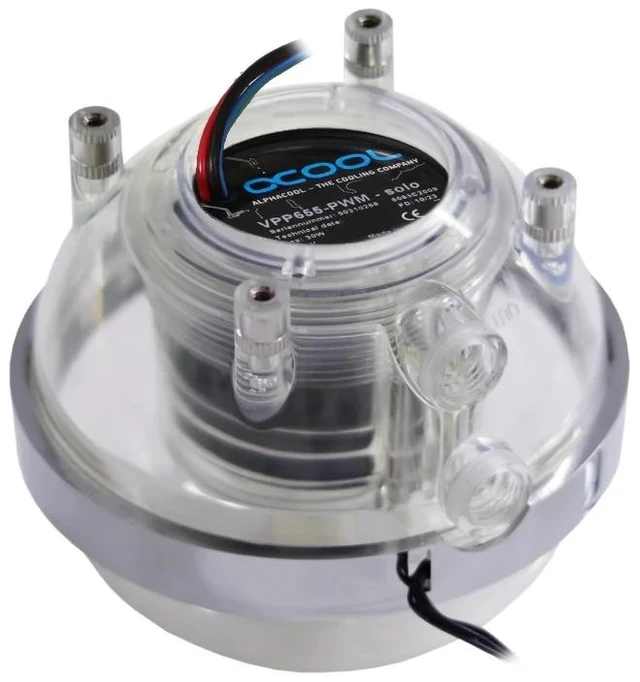

- Pump: D5 VPP655 PWM, pre-installed
- Capacity: 700 ml

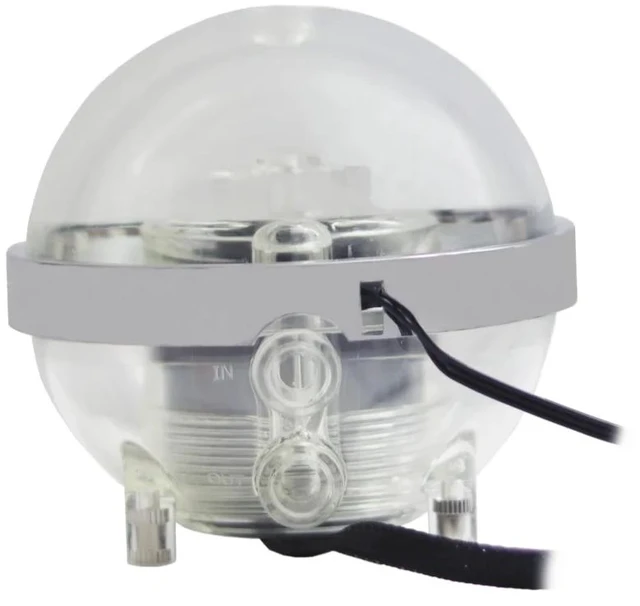

- Ports: 3x G1/4 (IN, OUT and fill port)
- Size (W x D x H): 117.51 x 128 x 128 mm

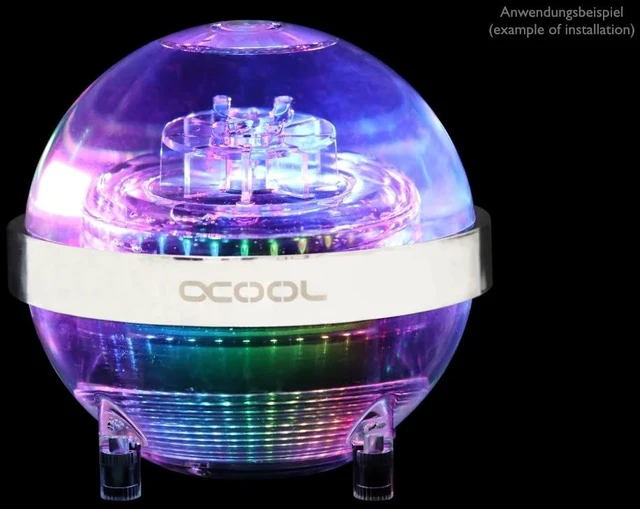

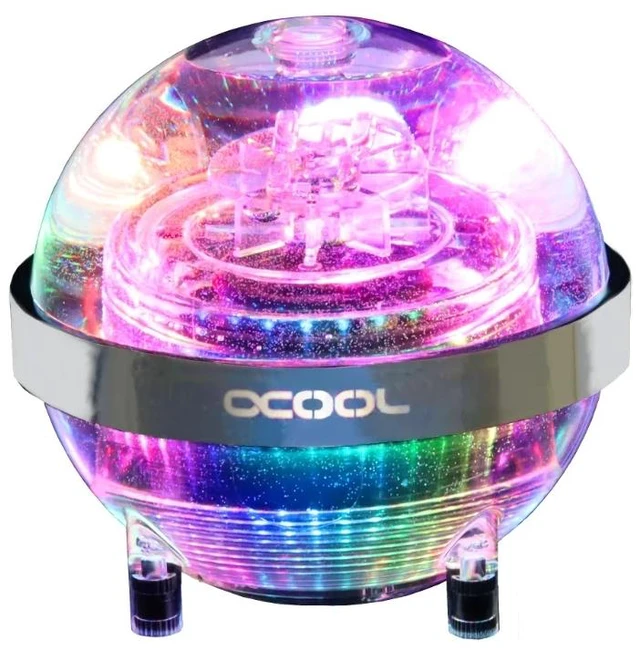

- Lighting: 22 digital RGB LEDs, 5 VDC, 4-Pin
What the loop needs
With the pump pre-installed, the loop needs two G1/4 fittings, one for the thread marked IN and one for OUT. The third thread is the fill port on top, which the manual says must be closed with the screw plug, using the screw plug tool. The pump is a PWM version, so its speed is set by the PWM signal from the mainboard or a fan controller. Fill it with a funnel through the upper fill port: the manual gives the optimal filling height as 10 mm below the opening. After the pump first runs the water level drops, so top it up.
Technical data
- Dimensions (W x D x H): 117.51 x 128 x 128 mm
- Dimensions (W x D x H) with mounting material and decoupler: 130.01 x 128 x 128 mm
- Net weight: 510 g
- Max. operating temperature: 60 °C
- Material Eisball: transparent nylon
- Material screw plug: Brass
- Material pump holder: Acetal
- Material Digital RGB ring: Acetal
- Threads: 3x G1/4 (IN, OUT and fill port)
- Capacity: 700 ml
- Digital RGB connector: 4-Pin
- Voltage Digital RGB: 5 VDC
- Mounting: drillings Eisball feet: 4 x M4x10
- Mounting plate: size of drillings: 8 x M3 / 4 x M4 (for decoupler)
- Mounting plate on radiator or fans: 120 / 140 mm fans or radiators - 4 x M3x5
- Pumps compatibility: VPP655/755 or Laing D5 pumps
- Color Digital RGB Ring: chrome
- Color: transparent
Notes
- Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in Pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturer's warranty.
- The manual recommends clear coolants from Alphacool's own production (CKC or Eiswasser Crystal, no UV) or pure distilled or osmosis filtered water.
In the box
- 1x Eisball reservoir
- 1x D5 VPP655 PWM Pump
- 1x screw plug
- 1x screw plug tool
- 1x mounting plate
- 1x velcro mat
- 1x mounting bracket for mounting on fan slots
- 4x decoupler
- 4x M3x5 screws
- 4x M4x5 screws
- 1x Eisball Digital RGB lighting ring
- 1x Digital RGB-Controller
- 1x Digital RGB-Adapter
