Alphacool Core Geforce RTX 5080 Solid + AMP Waterblock with Backplate, G1/4, Chrome Plated Copper, ARGB (14733)
- Item #: 9SIV1R4KMK0303
- Mfr. Part #: 4250197147330
- Alphacool introduces its new series of graphics card water coolers for the latest Nvidia GeForce RTX generation
- Part of the Core product series, these coolers combine the highest quality with exceptional performance
- Thanks to an optimized technical design, these GPU coolers deliver outstanding cooling performance.
- Alphacool introduces its new series of graphics card water coolers for the latest Nvidia GeForce RTX generation.
- Part of the Core product series, these coolers combine the highest quality with exceptional performance.
+
+
Overview
Specs
Reviews

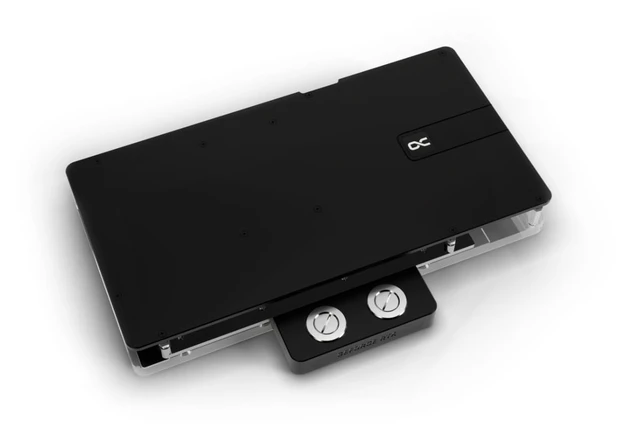

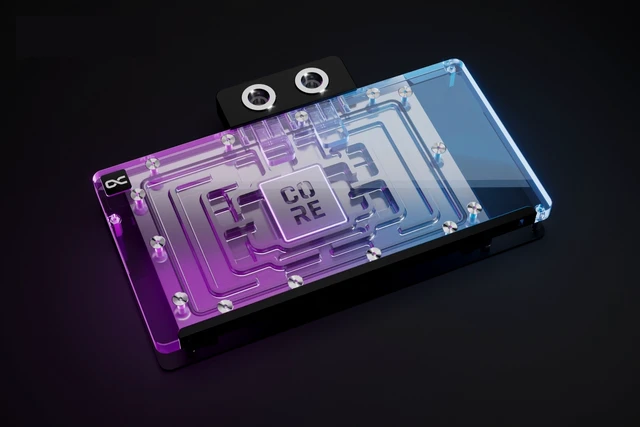

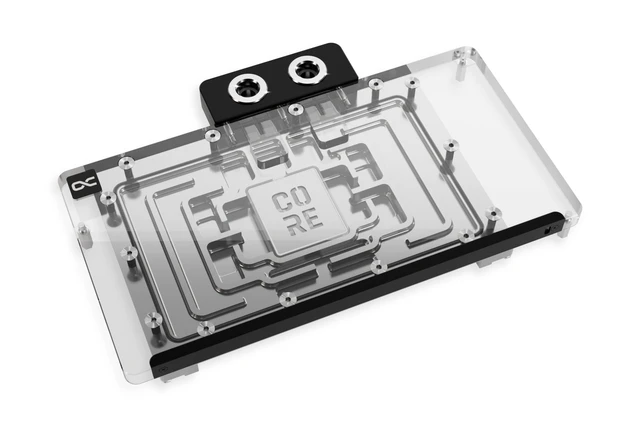

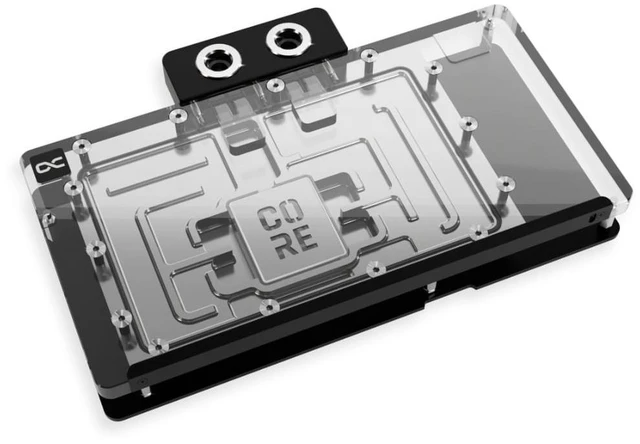

The Alphacool Core Geforce RTX 5080 Solid + AMP Waterblock with Backplate is a GPU water block for Zotac's Nvidia GeForce RTX 5080 Solid and AMP Extreme Infinity graphics cards. Alphacool also lists two Zotac Gaming GeForce RTX 5070 Ti cards for it, the Solid OC and the AMP Extreme Infinity. It cools the card with a chrome-plated copper block under an acrylic top, and the aluminum backplate is in the box.
Properties
- Fits: Zotac Gaming GeForce RTX 5080 and RTX 5070 Ti, Solid and AMP Extreme Infinity
- Cold plate: Chrome-plated copper
- Top: Acrylic, transparent
- Ports: 4 x G1/4
- Backplate: Aluminum, included
- Lighting: 11 digital aRGB LEDs, 5V
Compatibility
Alphacool lists these cards for this block:
- Zotac Gaming GeForce RTX 5070 Ti AMP Extreme Infinity (ZT-B50710B-10P)
- Zotac Gaming GeForce RTX 5070 Ti Solid OC (ZT-B50710J-10P)
- Zotac Gaming GeForce RTX 5080 AMP Extreme Infinity (ZT-B50800B-10P)
- Zotac Gaming GeForce RTX 5080 AMP Extreme Infinity Ultra (ZT-B50800BU-10P)
- Zotac Gaming GeForce RTX 5080 Solid (ZT-B50800D-10P)
- Zotac Gaming GeForce RTX 5080 Solid OC (ZT-B50800J-10P)
The block was designed for one PCB layout, and card makers sometimes revise a board so that a cooler no longer fits later models. Before ordering, compare your card and its PCB number with the pictures in Alphacool's GPU configurator, or look it up in its Compatibility List for Nvidia cards.

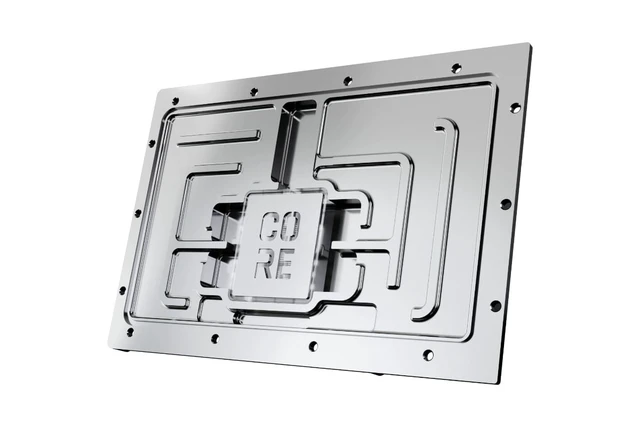

Technical data cooler
- Dimensions total (L x W x H): 235.60 x 150.57 x 34.10 mm
- Material cooler: chrome-plated copper
- Material cooler top: Acrylic
- Material terminal: Nylon
- Material Connection thread: Brass
- Max working temperature: 60 °C
- Pressure tested: 0.8 bar
- Threads: 4 x G1/4
- Thickness cooler bottom: 3.25 mm
- Thickness cooling fins: 0.4 mm
- Distance cooling fins: 0.4 mm
- Illumination: digital aRGB LEDs
- Power connector digital aRGB LEDs: 3-Pin JST
- Power digital aRGB LEDs: 5V
- Number of digital aRGB LEDs: 11
- Color: transparent

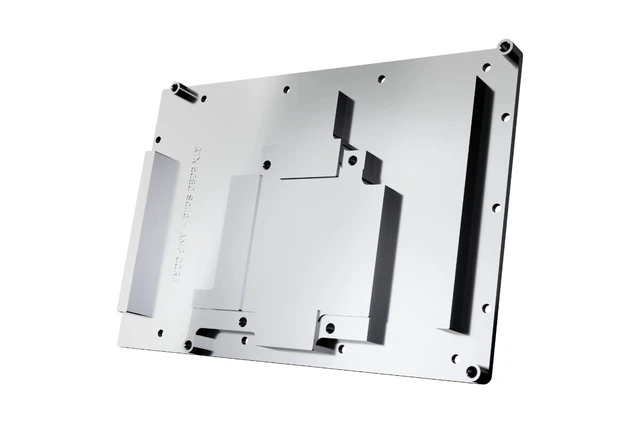

Technical data backplate
- Dimensions (L x W x H): 235.60 x 122.00 x 6 mm
- Thickness backplate without spacers: 3 mm
- Material: Aluminum
Notes
- Alphacool asks that the block be used only with clear transparent water cooling fluids. It warns that the particles and additives in Pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, and that this can void the manufacturer's warranty.
- Remove the original cooler on an antistatic mat and clean the card of thermal paste and pad residues before fitting the block.
In the box
- 1x Core Geforce RTX 5080 Solid + AMP cooler
- 1x Backplate
- 1x 55x15x1mm Pad
- 2x 27x15x1mm Pad
- 1x 72x8x1mm Pad
- 1x 90x8x1mm Pad
- 3x 15x8x1mm Pad
- 1x 8x8x1mm Pad
- 2x 27x8x3mm Pad
- 1x 55x8x3mm Pad
- 1x 45x45x3mm Pad
- 1x 20x8x3mm Pad
- 1x Thermal Grease
- 1x Putty tool
- 1x ARGB Adapter
- 1x PCIe Bracket
- 1x Plug tool
- 1x Screwdriver
- 2x G1/4 Plug
- 11x M2x10mm screws
- 1x Washer
- 1x M2x4mm screw
