Alphacool Core Distro Plate 240 Right VPP/D5 Reservoir, G1/4, 164 ml, Acrylic, Clear (15474)

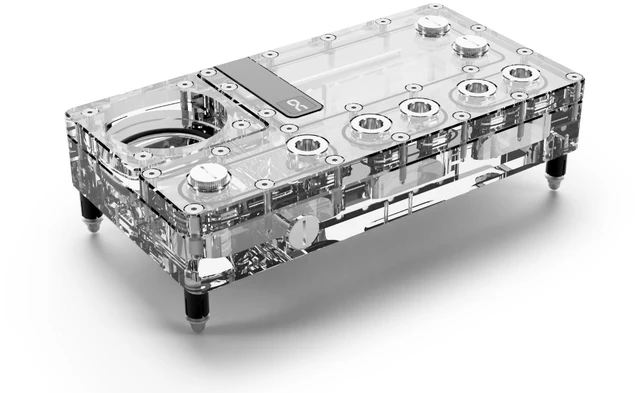

The Alphacool Core Distro Plate 240 Right VPP/D5 is a 240 mm acrylic distro plate with an integrated reservoir of 164 ml and a pump top for VPP or D5 pumps on the right. The pump is not in the box. The plate can be mounted on the radiator or on a case panel.

Properties

• Pump: VPP or D5, not included
• Capacity: 164 ml
• Ports: 9x G1/4
• Size (L x W x H): 240.00 x 125.00 x 42.00 mm without pump
• Material: Acrylic

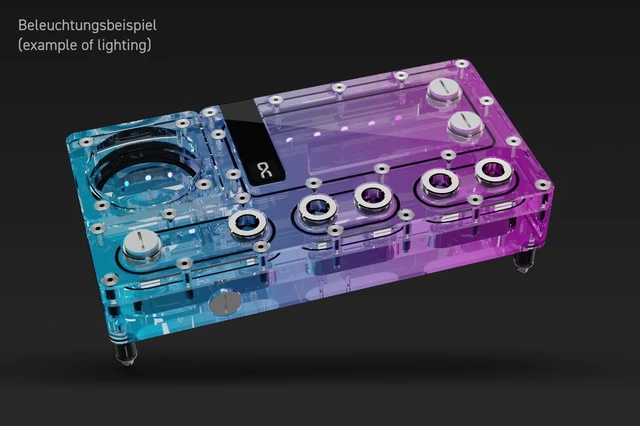

• Lighting: 12 digital aRGB LEDs, 5V

Core Design

The chrome-plated, brass G1/4 connectors are a core element of Alphacool's Core Design series. On this plate the ports are recessed instead of screwed into a thread as is usually the case. Screwing the connectors directly into the acrylic can crack it, and this allows Alphacool to overcome that problem of potential leakage due to cracking. Each connector is made of two parts and has an O-ring, and the parts counter each other when mounted in the acrylic. According to Alphacool this not only ensures absolute leak proofing of each connector but also allows for the clean and functional look of the series.

Easy Installation

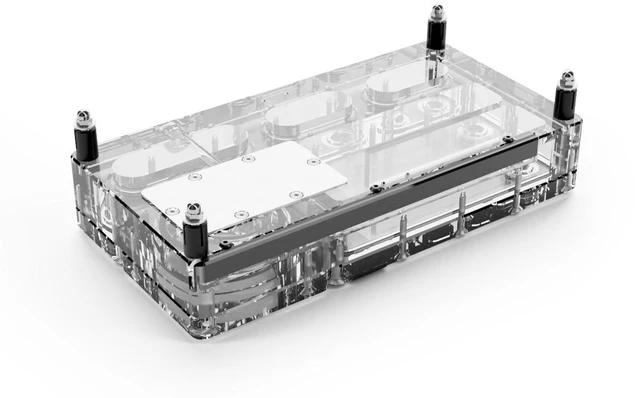

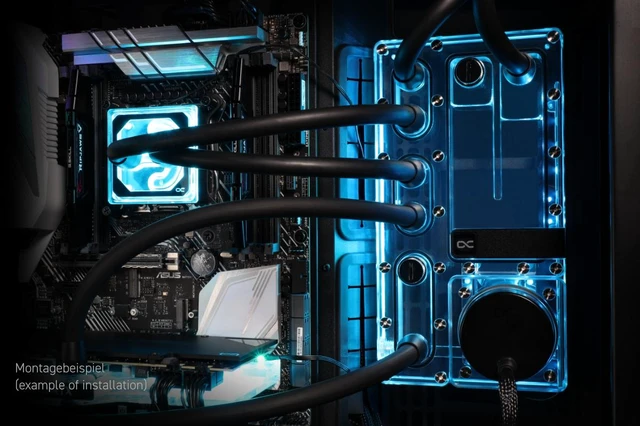

Using the included Core Push Mounting kit, the plate goes on a case panel or on a radiator. To do this, the metal pins are attached to the radiator or the panel of the PC case, and the matching female sockets to the plate (see manual). The next assembly step is to simply push the plate onto the pins, without the need for any tools. Alphacool says its push-mounting allows for a tight fit and for easy removal for maintenance or expansion projects. On a radiator, use the screws of the set with the appropriate thread for your radiator.

What the loop needs

The plate needs a VPP or D5 pump. For pump installation an O-ring is inserted first, then the four M4x22 pump screws from the box are tightened with 1.5Nm. Ports you do not use take the three screw plugs in the box, and the plug tool for them is in the box too. For inlet and outlet, choose the port closest to your GPU configuration.

Technical data

• Dimensions (L x W x H): 240.00 x 125.00 x 42.00 mm
• Dimensions (L x W x H) with pump: 240.00 x 125.00 x 61.00 mm
• Dimensions (L x W x H) with push mounting: 240.00 x 125.00 x 72.80 mm
• Dimensions (L x W x H) with pump + push mounting: 240.00 x 125.00 x 88.80 mm
• Material: Acrylic
• Volume: 164 ml
• Pump compatibility: VPP/D5
• Threads: 9x G1/4 inner thread
• Maximum working temperature: 60 °C
• Pressure tested: 0.8 Bar
• Quantity digital aRGB LEDs: 12
• Power digital aRGB LEDs: 5V
• Power connection digital aRGB LEDs: 3-Pin JST + 3-Pin 5V
• Weight: 1260 g
• Color: transparent

Notes

• Please note Alphacool's note on application: use the plate only in conjunction with clear, transparent water cooling fluids. The particles and additives in pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. That can result in voiding the manufacturer's warranty as well.

In the box

• 1x 240 Distroplate
• 1x M4 Allen Key
• 4x M4x22 Pump Screw
• 3x Screw Plug
• 1x Plug tool
• Core Push Mount Set
• 1x ARGB Adapter
