Alphacool Eiszapfen Temperature Sensor Flat Fitting G1/4 - Chrome (17597)

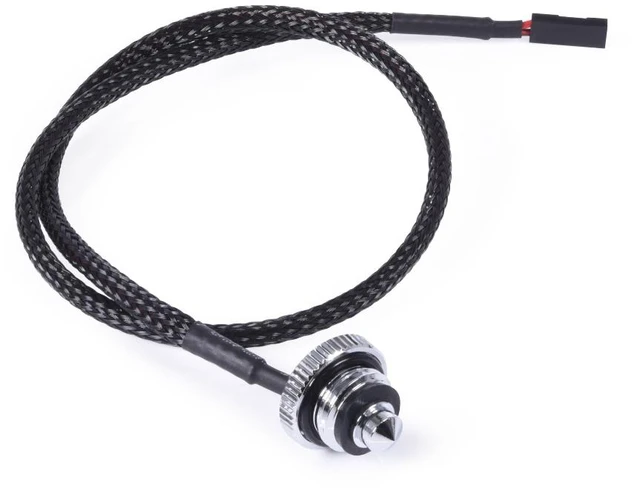

The Alphacool Eiszapfen Temperature Sensor Flat Fitting G1/4 - Chrome is a simple, flat water temperature sensor with a G1/4 thread for G1/4 female connectors. It carries an NTC 10 kOhm thermistor on a 40 cm cable with a 2-Pin connector, and one sensor comes per pack.

Properties

• Thread: G1/4, 5 mm thread length
• Thermistor: NTC 10 kOhm, -40 to 125 °C
• Cable: 40 cm, 2-Pin connector
• Size (H x D): 17 mm x 18 mm
• Material and color: Brass, chrome
• Pieces in the pack: 1

Integration made easy

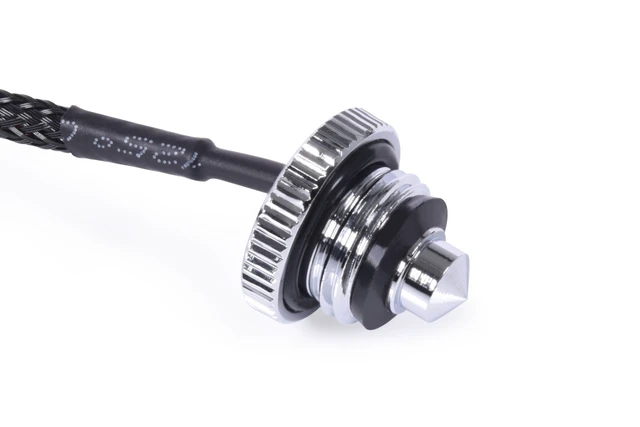

The sensor is very compact, and due to its G1/4 external thread it can be easily integrated into any water loop or circuit. It is simply screwed into the corresponding G1/4 connection, at any position in the loop. The screw-in depth is small, so Alphacool calls it compatible with all Alphacool products that have a free G1/4 connection.

Sensor

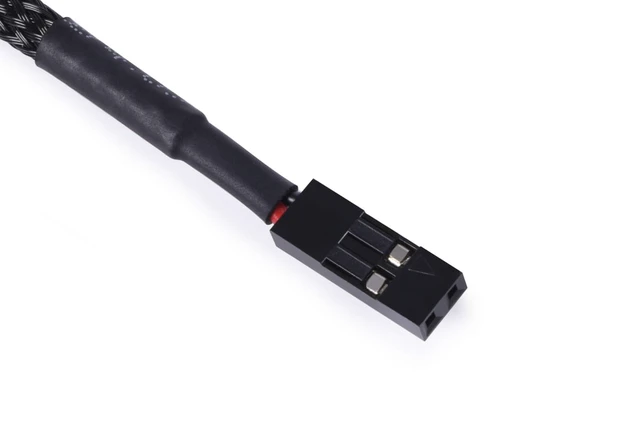

A classic NTC 10 kOhm thermistor is used as the sensor, and the readable temperature range is between -40 and 125 °C. The cable is 40 cm long and leads into a typical 2-pin connector.

What it needs

The sensor only measures, so the connector has to go somewhere that reads it. Many mainboards now offer direct connection options for such sensors: please check the manual of your mainboard. Of course there are also several external controllers that offer a connector for it, such as a fan controller with a sensor input.

Design

Alphacool kept the design very simple, so that the sensor can be installed almost invisible in the system.

Compatibility

G1/4 female connectors.

Technical data

• H x D: 17 mm x 18 mm
• Material: brass
• Color: chrome
• Cable length: 40 cm
• Connection: 2-Pin
• Thermistor: NTC 10 kOhm
• Thread: G1/4 IT
• Thread length: 5 mm
• Total screw-in depth: 13 mm

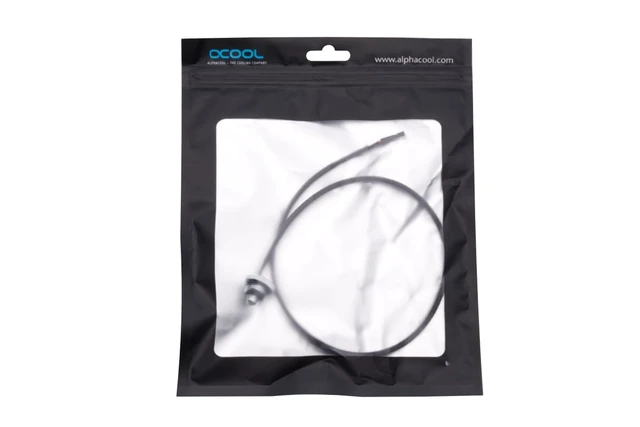

In the box

• Alphacool Eiszapfen temperature sensor flat G1/4 - chrome
