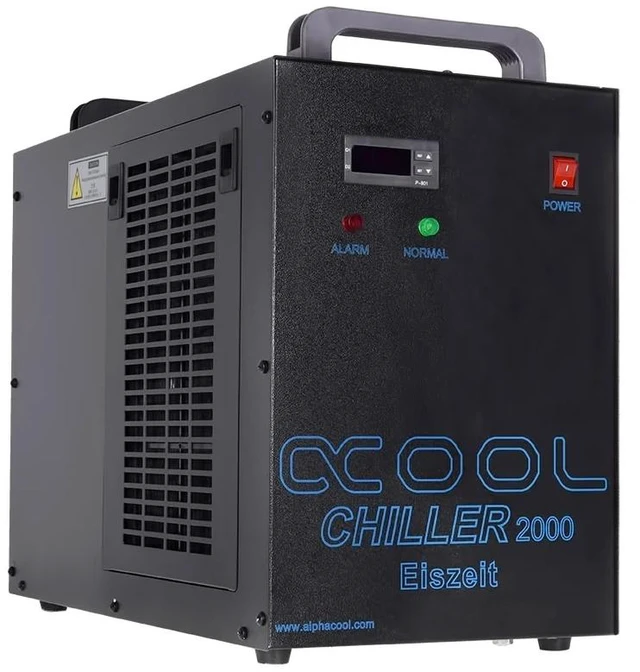

Alphacool Eiszeit 2000 Chiller - Black 110-120V / 60hz, 9L (5100104)

The Alphacool Eiszeit 2000 Chiller - Black 110-120V / 60hz is a compressor cooler for water cooling loops with a cooling capacity of 1.41/1.70 kW, an integrated pump and a 9L reservoir. It runs on 110-120V and connects through two G1/4 threads on the rear, one IN and one OUT. Unlike most so-called Chillers or circulating coolers, it brings its own pump.

Properties

• Pump: Integrated, 10 m maximum head
• Capacity: 9L reservoir

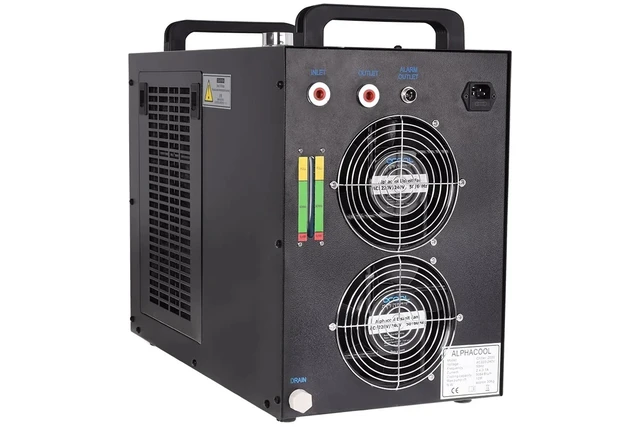

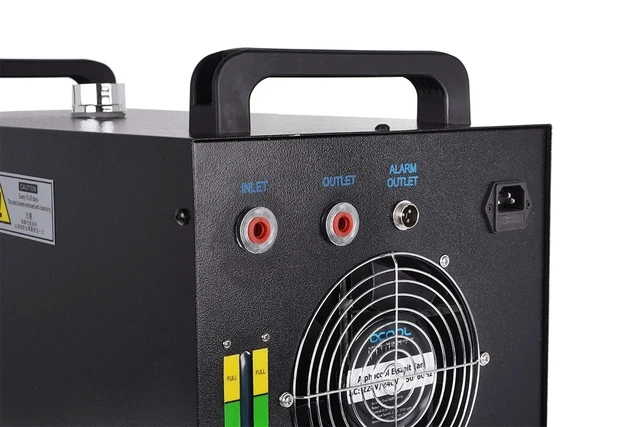

• Ports: G1/4, 1x IN / 1x OUT, rear
• Size (L x W x H): 560 x 280 x 470 mm
• Maximum flow rate: 600 L/h
• Voltage: 110-120V

Temperature control

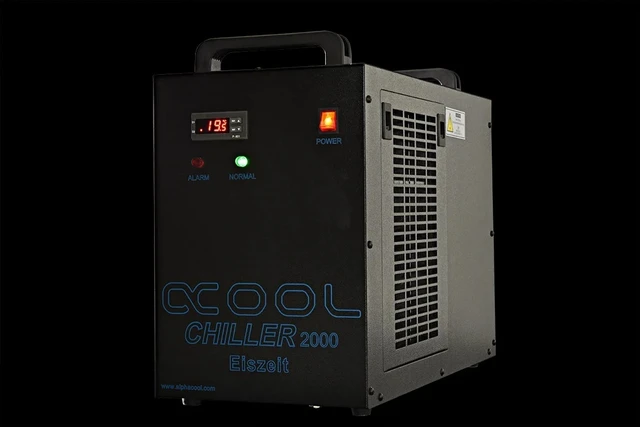

What you get with the "Eiszeit" is a compressor cooler designed by Alphacool. It will keep your system, or more than one system, at the temperature you pre-set, automatically regulated for you. Entering the settings is easily done through the Eiszeit's display, in precise increments of 0.3° Kelvin. You can reach and hold temperatures down to the adjustable minimum temperature of 20 °C.

Pump and connections

Alphacool names the integrated high-performance pump as another highlight: this means a separate one is no longer necessary. If the pump performance proves to be too strong for your parts, a restrictor goes into the cooling loop via a ball valve or check valve. Nearly all standard water cooling attachments can fit the G1/4 connectors. Alphacool says this gives the chiller outstanding compatibility compared to other current products like CPU coolers and graphics card coolers.

What the loop needs

Alphacool calls using the chiller relatively simple. It is connected to the cooling loop with two G1/4 fittings, and after connecting it the loop needs to be filled via the fill port on top. Besides the 9L the integrated reservoir holds, you will additionally need enough coolant to fill the complete loop, however far it runs through your system.

Technical data

• Dimensions (L x W x H): 560 x 280 x 470 mm
• Voltage: 110-120V
• Power consumption: 660W
• Compressor power: 0.49/0.57kW (0.66/0.77HP)
• Cooling capacity: 1.41/1.70kW
• Refrigerant: R1234YF
• Refrigerant charge: 380 g
• Pump capacity: 0.03kW
• Pump Max. Delivery head: 10 m
• Pump max flow rate: 600 L/h
• Liquid tank filling quantity: 9L

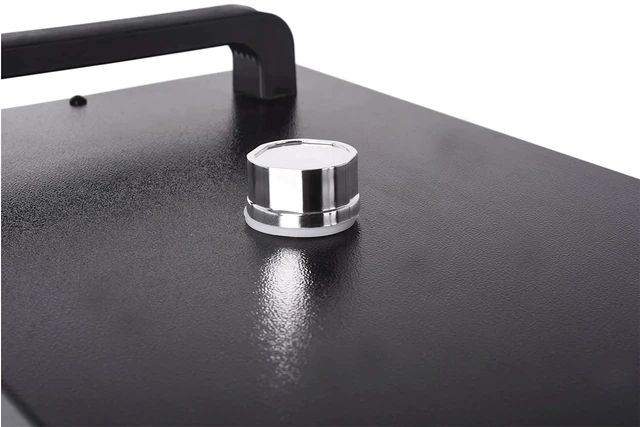

• Filling opening: 1x top
• Threads: G1/4 (1x IN / 1x OUT) rear
• Noise: 65 dB(A)
• Adjustable minimum temperature: 20 °C
• Temperature accuracy: +/- 0.3 °C
• Reservoir: Polypropylene
• Internal soft hoses: Silicone
• Internal hard hoses: PU
• IP rating: IP44
• Recommended operating temperature (in degrees Celsius): 5 °C ~ 40 °C
• Recommended storage temperature (in degrees Celsius): 0 °C ~ 40 °C
• Color: black

Notes

• Please note: in the event of a return (RMA), the product must be shipped exclusively via freight carrier. Using a parcel delivery service for the return will result in the loss of warranty claims.

In the box

• 1 x Alphacool Eiszeit 2000 Chiller
• 1 x USA - Plug
• 1 x Multilingual installation instructions
• 1 x Alarm output plug
