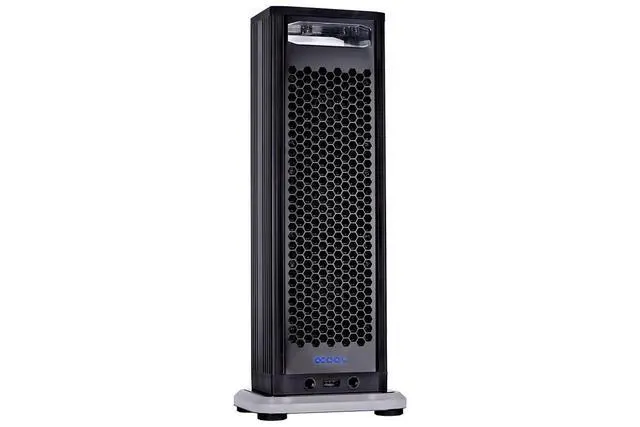

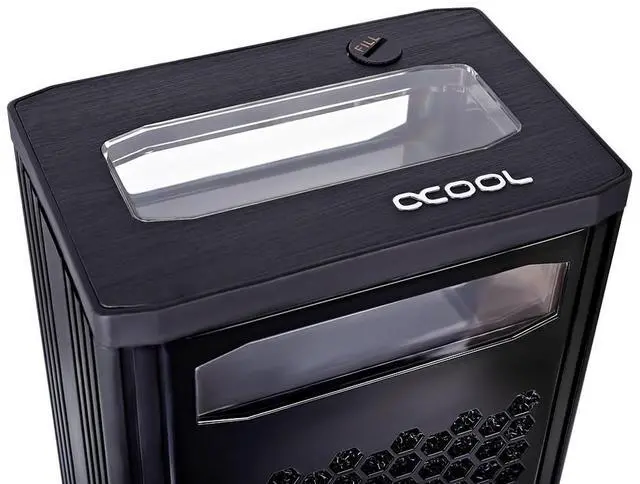

Alphacool Eiswand 360 CPU All In One External Cooling System

The Alphacool Eiswand 360 CPU All In One External Cooling System is an external water cooling system for the CPU, built around a 360mm XT45 copper radiator with a total of six 700rpm Eiswind fans. It is suited to those with small PC chassis that don't naturally support a 360mm radiator and a cooling loop. The same unit without the CPU block, tubing, fittings and coolant is the Eiswand 360 Solo.

Properties

• Radiator: 360mm XT45 copper
• Fans in the box: 6x Eiswind, 700rpm, push-pull
• Pump: 2x DC-LT low noise ceramic
• Tubing: 11/8mm soft tubing, black, 4m
• Coolant: 2x 1L Kelvin Catcher
• Lighting: LED base, blue

How it is built

This Eiswand is the newest iteration of Alphacool's external cooling system: compact, powerful and expandable. The radiator makes up the bulk of the unit. The fans are set up in a push-pull configuration to keep the system cool. Two DC-LT low noise ceramic pumps act as the heart of the Eiswand, keeping coolant flowing even through multiple waterblocks.

Lighting

The LED base lights up blue when the unit is powered. At a LAN party it is sure to grab the attention of everyone in the room.

What the loop needs

For a basic CPU centric loop, nothing more: inside the box you will find all of the soft tubing, fittings and coolant it would need, along with the universal CPU block. To add a block later, the tube runs take 11/8mm compression fittings and 8mm ID x 11mm OD soft tubing.

Spare parts for the unit are the nylon replacement reservoir and the black replacement top.

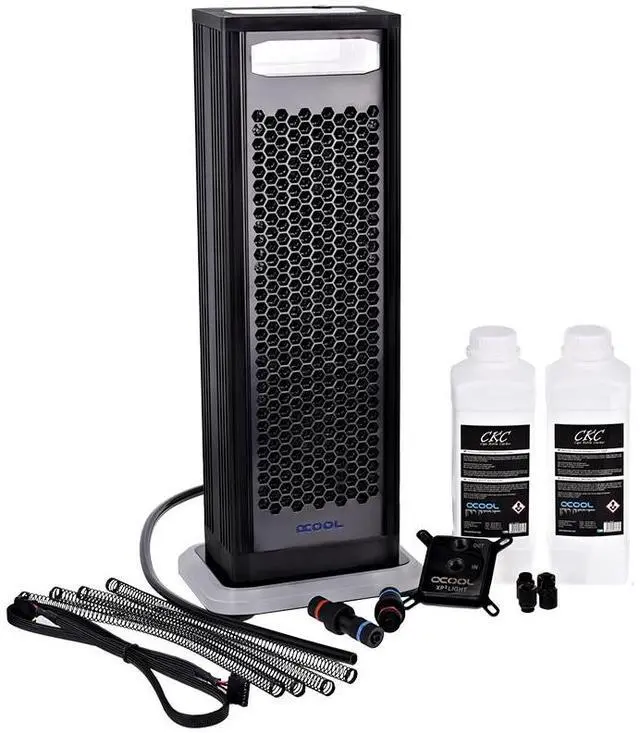

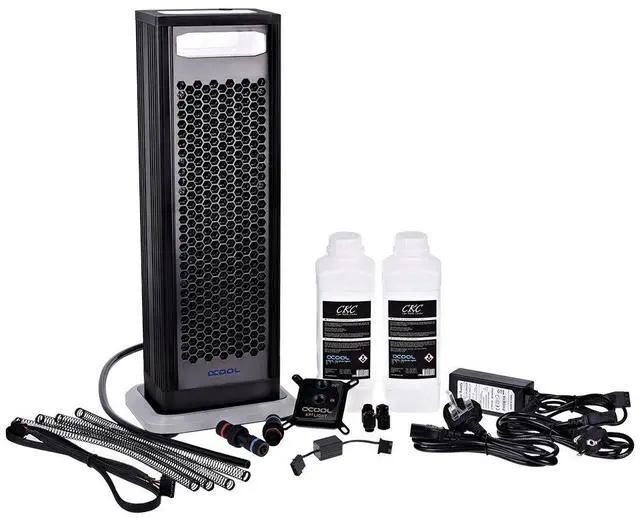

In the box

• Eiswand Cooling Unit x 1
• Eiswind 700rpm Fans x 6
• Black 11/8mm Soft Tubing x 4m
• Liquid Kelvin Catcher Coolant 1L Bottles x 2
• 30cm Anti-Kink Spring x 4
• 4-Pin Molex Extender Cable 90cm x 1
• Quick Disconnect Fittings x 2
• Black 11/8mm Fittings x 4
• Universal CPU Block x 1
