| Color | White |
|---|
| Type | ATX 3.1 / ATX12V |
|---|
| Maximum Power | 1000 W |
|---|

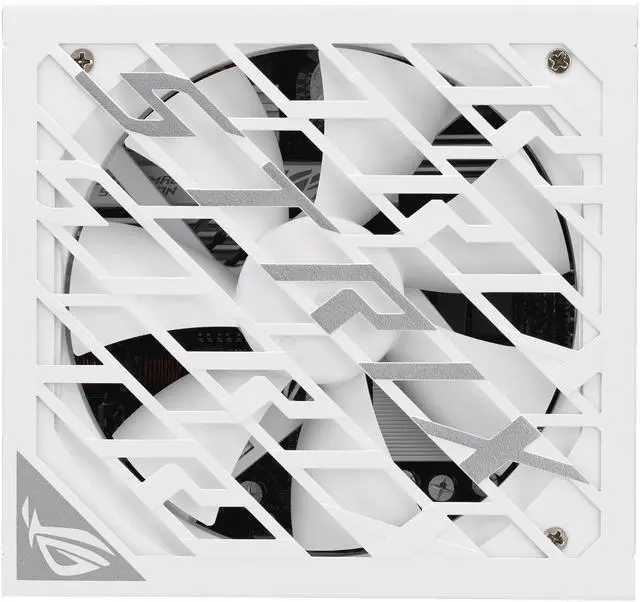

| Fans | 1 |
|---|
| Main Connector | 20+4Pin |
|---|
| +12V Rails | Single |
|---|
| PCI-Express Connector | 1 x 16-Pin, 4 x 6+2-Pin |
|---|
| SATA Power Connector | 6 |
|---|
| Max PSU Length | 160 mm |
|---|
| Modular | Full Modular |
|---|
| Energy-Efficient | 80 PLUS PLATINUM Certified |
|---|
| PSU Noise Level | Cybenetics A+ |
|---|
| Protection | OPP/OVP/UVP/SCP/OCP/OTP |
|---|
| Input Voltage | 100 - 240 V |
|---|
| Output | +3.3V@25A, +5V@25A, +12V@83.3A, -12V@0.3A, +5Vsb@3A |
|---|
| MTBF | >120,000 hrs @ 25°C |
|---|

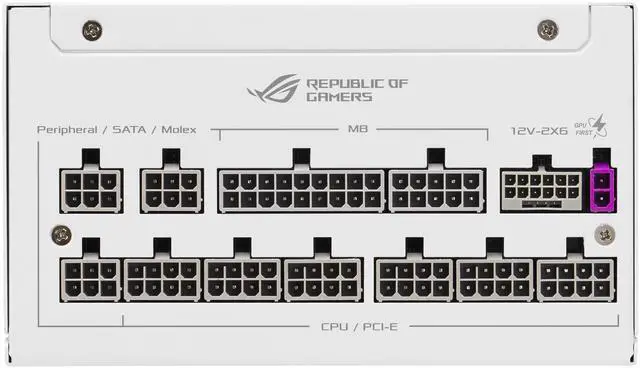

| Connectors | 1 x MB 24/20-pin 2 x CPU 4+4-pin 1 x PCI-E 16-pin (12V-2x6) 4 x PCI-E 6+2-pin 6 x SATA 3 x Peripheral |
|---|

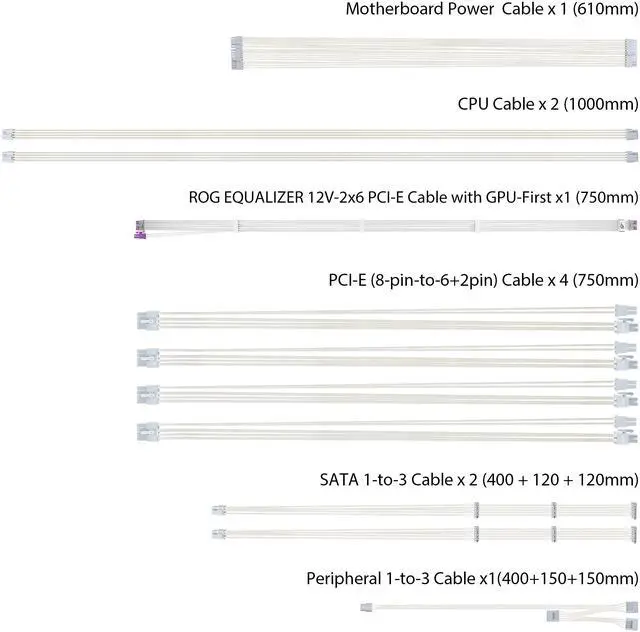

| Cable Spec | 1 x Motherboard Power Cable (610mm) 2 x CPU Cable (1000mm) 1 x ROG EQUALIZER 12V-2x6 PCI-E Cable with GPU-First (750mm) 4 x PCI-E (8-pin-to-6+2-pin) Cable x 4 (750mm) 2 x SATA 1-to-3 Cable (400+120+120mm) 1 x Peripheral 1-to-3 Cabel (400+150+150mm) |
|---|
