    Athena Power AP-U3ATX70FEP8 20+4Pin 700W Single 3U Server Power Supply - 80 Plus Bronze

    • Item #: 9SIV1WTJDM3672
    • Mfr. Part #: AP-U3ATX70FEP8
    • UNSPSC: 39121004
    Be the first to review this product...
    • 700W Single
    • 20+4Pin
    • 2 Fans
    +
    +
    Specs
    Reviews

    Learn more about the Athena Power AP-U3ATX70FEP8

    Model
    Brand Athena Power
    Model AP-U3ATX70FEP8
    Details
    Single/Redundant Single
    Maximum Power 700W
    Fans 2
    Main Connector 20+4Pin

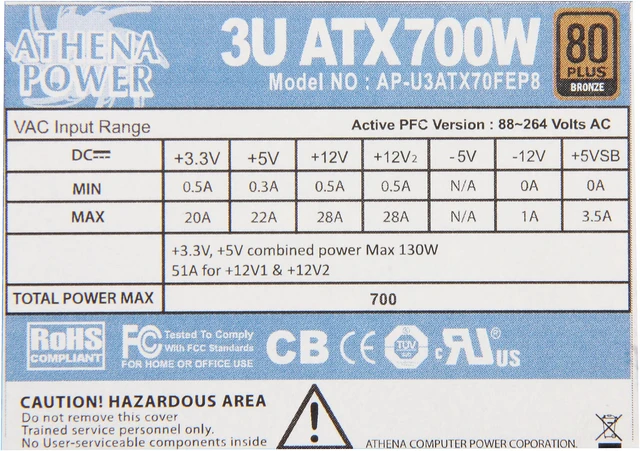

    Output +3.3V@20A,+5V@22A,+12V1@28A, +12V2@28A, -12V@1A, [email protected]
    Input Voltage 100 - 264 Volts Ac
    Input Frequency Range 47 - 63 Hz
    MTBF 100,000 Hours on Maximum Load at +25 degree C
    Hold-up Time 17 ms Minimum at Nominal Input Voltage
    Protection Over voltage, short circuit and overload protection.
    Features

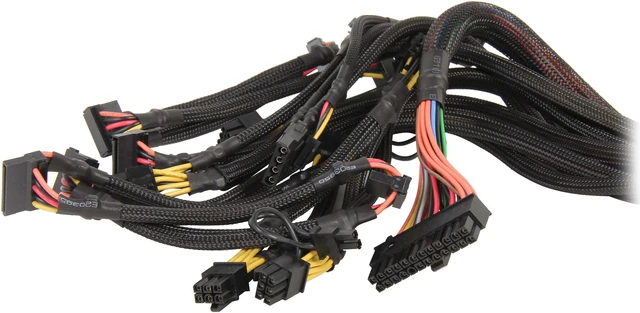

    Features Connectors
    ATX 24(20+4) Pin x 1
    P4-12V 4 Pin x 1
    EPS-12V 8 Pin x 2
    PCIE 6 Pin x 2
    PCIE 6+2 Pin x 2
    SATA 15 Pin x 6
    Molex 4 Pin x 2
    Floppy 4 Pin x 1

    80PLUS Bronze Certification

    Active PFC (Power Factor Correction) meets EN61000-3-2

    Full Range Input: 100~264 Volts AC

    Smart Auto Fan Speed Controller

    100% Hi-pot, ATE and Burn-in Tested

    Output Over Voltage, Short Circuit and Overload Protection.

    Low Noise and Ripple

    RoHS Compliance
    Dimensions & Weight
    Dimensions 4.55" x 3.4" x 7.87"
    Weight 5lbs
    Environmental
    Humidity 5~90% on Operating. 5~95% on Storage
    Temperature 0 degree C ~ +50 degree C on Full Load
    Packaging

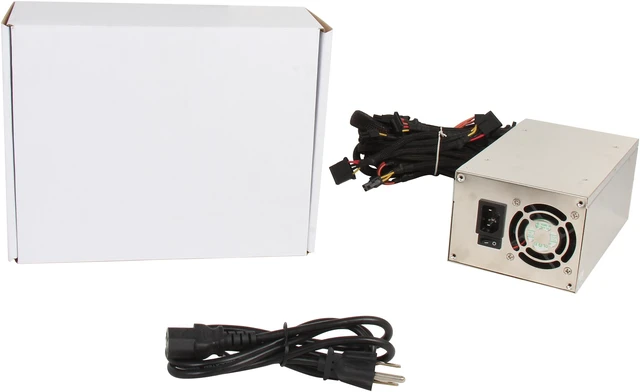

    Package Contents 1 x AP-U3ATX70FEP8
    1 x Power Cord
    Manufacturer Warranty
    Parts 3 year limited
    Labor 3 year limited
