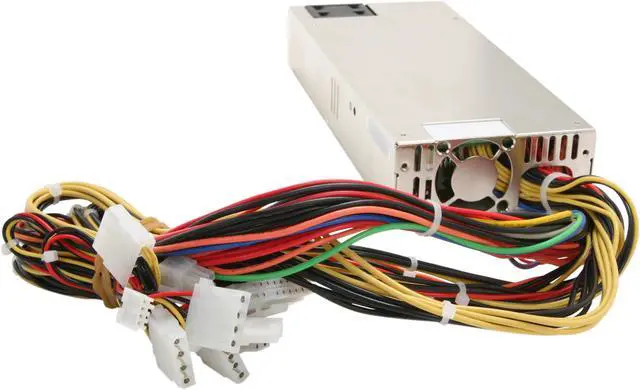

Athena Power Zippy P1H-5500V 500W Single 1U Server Power Supply
- 500W Single
- One 40mm DC Fan Fans
+
+
Specs
Reviews
Learn more about the Athena Power P1H-5500V
| Brand | Athena Power |
|---|---|
| Series | Zippy |
| Model | P1H-5500V |
| Single/Redundant | Single |
|---|---|
| Maximum Power | 500W |

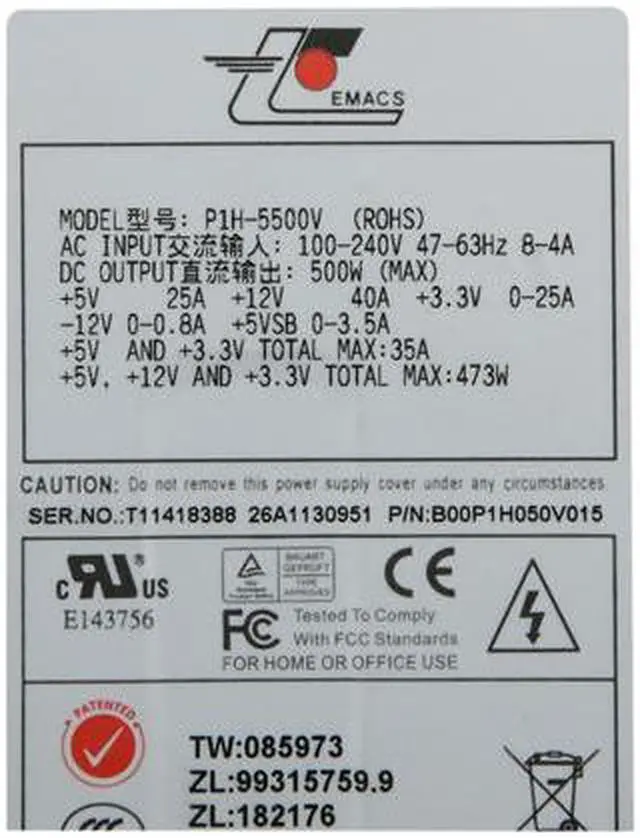

| Output Current | +5V@25A, +12V@40A, +3.3V@25A, [email protected], [email protected] |
| Input Voltage | 90 - 264 V |
| Input Frequency Range | 47 - 63 Hz |
| Input Current | 10.0 A ( RMS ) FOR 115VAC / 5.0 A ( RMS ) FOR 230VAC |

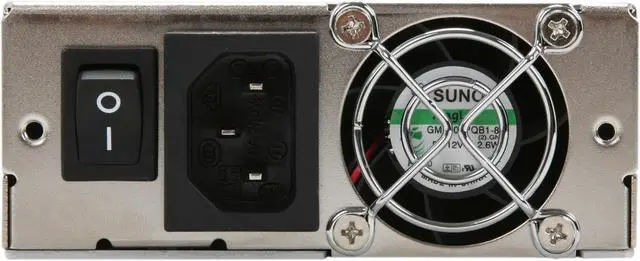

| Fans | One 40mm DC Fan |
| Efficiency | 80% Typical at 115V, Full Load |
| Hold-up Time | 16 ms Minimum at Full Load & Normal Input Voltage |
| Protection | Over Power Protection Over Voltage Protection Over Current Protection Short Circuit Protection |
| Features | ACTIVE POWER FACTOR CORRECTION MEET IEC-1000-3-2 CLASS D For: Server, Workstation, Storage System |
|---|
| Dimensions | 8.86" x 3.94" x 1.59" |
|---|
| Temperature | 0° C - 50° C |
|---|
| Parts | 30 Days |
|---|---|
| Labor | 30 Days |
| First Listed on Newegg | September 12, 2023 |
|---|
