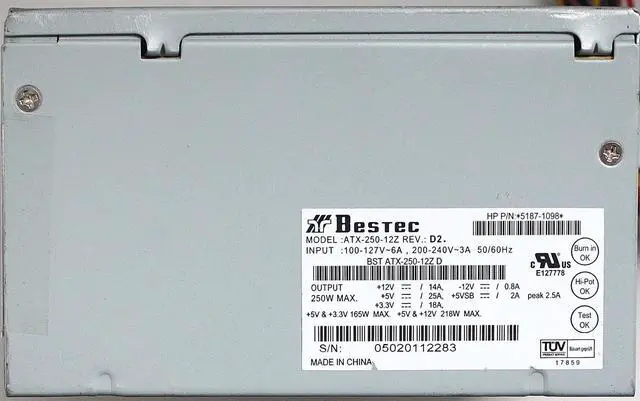

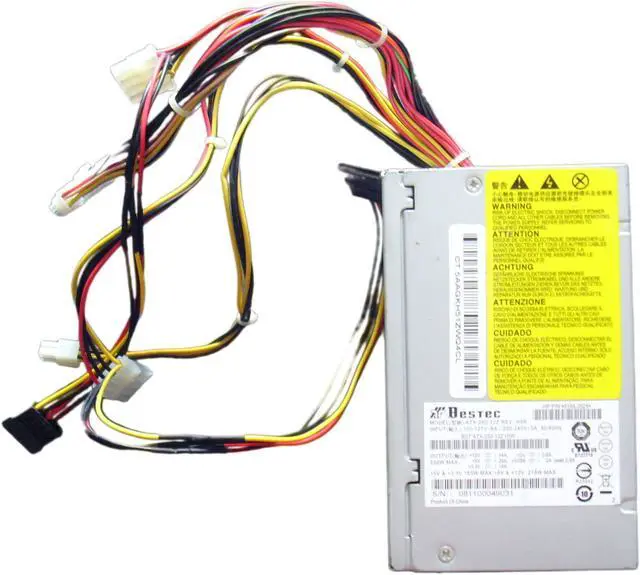

Bestec ATX-250-12Z 250W Power Supply For HP 5188-2624 440568-001 444813-001

Bestec ATX-250-12Z 250W Power Supply For HP 5188-2624 440568-001 444813-001. Used but 100% Perfect Working Condition. 250W Of Continuous Power. Item is suitable for Desktop. Bestec Brand, Ensure The Quality Of Products Item Features MTBF 100, 000 hrs at ambient conditions Efficiency 70% Min. at full load Overvoltage Protection On all outputs 100% Hi-pot, ATE, and burn-in tested Shortage Protection On all outputs Cooling Ball bearing Noise Level Maximum of 32db at 100% system loading
Specifications Manufacturer: Bestec
Model: ATX-250-12Z
P/N: 5188-2624 440568-001 444813-001
Dimensions: 150x140x86mm (LxWxH)
Load Regulation: 3% ~ 5%
Line Regulation: 1% ~ 2%
Frequency: 50/60Hz
Input: 100 - 127V 6.0A 200 - 240V 3.0A

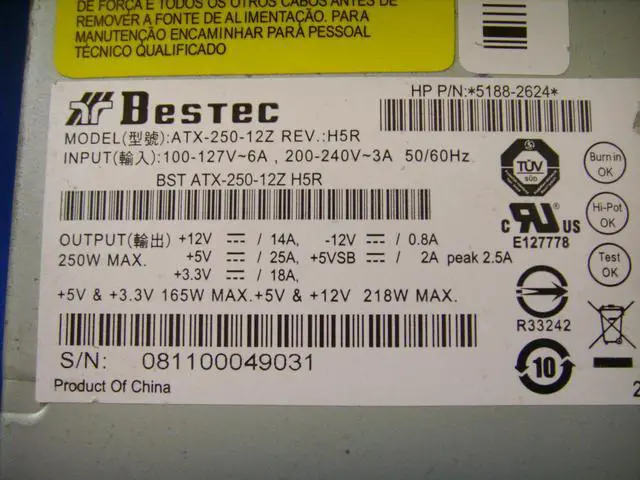

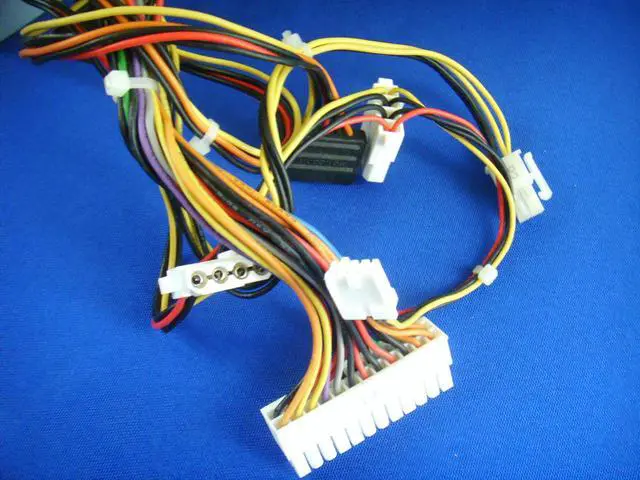

Output: Voltage + 5.0V +12V-12V + 3.3V + 5.0V sb Max Load 25A 18A 0.3A 17A 2A Cables/Connectors 1x 24_pin ATX Connector 1x 4_pin CPU Power Cable 2x 4_pin Molex IDE Connector 2x SATA Connector 1x Floppy Connector Compatible models Bestec ATX-250-12Z H1 5187-1100 Compaq Presario S6000IL home PC PE505A Compaq Presario SR1500AN home PC PY066AAR, PY066AA HP Pavilion a1220l home PC EG618AA Pavilion 6220KR DD306A Pavilion S6030AN DT082AR, DT082A, DT082R Pavilion a1017kr ED766AA Pavilion a1030l ED793AA Pavilion a305I DN062A Pavilion a308d DN066A Pavilion a320a DN035AR, DN035A, DN035R Pavilion a320d DN068A Pavilion a408d DT113A Pavilion a518I DY122A Pavilion a518d DY067A Pavilion a520d DY068A Pavilion a528d DY071A Pavilion a618l PE464AA Pavilion a625d PL331AAR, PL331AA Pavilion a716d PL404AA Pavilion a810tw PS156AA Pavilion a830tl PW788AA Pavilion t102d DD236A Pavilion t102k DD259A Pavilion t108d DK281A Pavilion t124a DD228AR, DD228A, DD228R Pavilion t132d DD238A Pavilion t134a DD229AR, DD229A, DD229R Pavilion t142d DD239A Pavilion t150d DD283A Pavilion t180d DD284A Pavilion t218d DK330A Pavilion t222k DK236A Pavilion t240a DK227AR, DK227A, DK227R Pavilion t307k DN046A Pavilion t310i DN055A Pavilion t337k DN050A Pavilion t372k DT243A Pavilion t380d DN073A Pavilion t402k DT087A Pavilion t438d DT117A Pavilion t448d DT118A Pavilion t450i DT105A Pavilion t458d DT236A Pavilion t460a DT079AR, DT079A, DT079R Pavilion t480a DT080AR, DT080A, DT080R Pavilion t482k DT093A Pavilion t488d DT121A Pavilion t510i DY061A Pavilion t511i PC172A Pavilion t517k PC154A Pavilion t528d DY072A Pavilion t530i DY062A Pavilion t548d DY074A Pavilion t567k DY048A Pavilion t580a DY036AR, DY036A, DY036R Pavilion t580d DY078A Pavilion t610i PE459AA Pavilion t639k PE449AA Pavilion t648d PE472AA Pavilion t660a PG053AAR, PG053AA Pavilion t711k PS407AA Pavilion t778l PP039AA Pavilion w1065d PL481AA Pavilion w1112kr PL465AA Pavilion w1117kr PL466AA Pavilion w1163d PN213AAR, PN213AA Pavilion w1265tw PS411AA Pavilion w5062tw PW613AA Pavilion w5072l PY111AA Presario 6225AP DD277A Presario 6230AN DB243A, DB243R Presario 6265AP DB251A Presario 6270AP DB257A Presario 6285AP DB256A, DB256R Presario S4020AP DK261A Presario S4120AP DK264A Presario S4150AP DK266A Presario S4160AP DK267A Presario S4280AP DK298A Presario S5030AN DN089AR, DN089A, DN089R Presario S5080AN DN043AR, DN043A, DN043R Presario S5180AP DN092A Presario S5300KR DN053A Presario S5480AP DN094A Presario S6150IN DT382A Presario S6280AP DT128A Presario S6480AP DT130A Presario S6500KR DT101A Presario S6540IN DT110A Presario S6650KR DW154A Presario S6800CF CTO, Intel, Cobra P8657BV Presario SR1020IL DY118A Presario SR1028AP DY080A Presario SR1040AN DY041AR, DY041A, DY041R Presario SR1055IN DY064A Presario SR1070AP DY083A Presario SR1088AP DY085A Presario SR1100CF CTO PL444AA, PL444AA Presario SR1104AL PG094AA Presario SR1105AL PG095A
