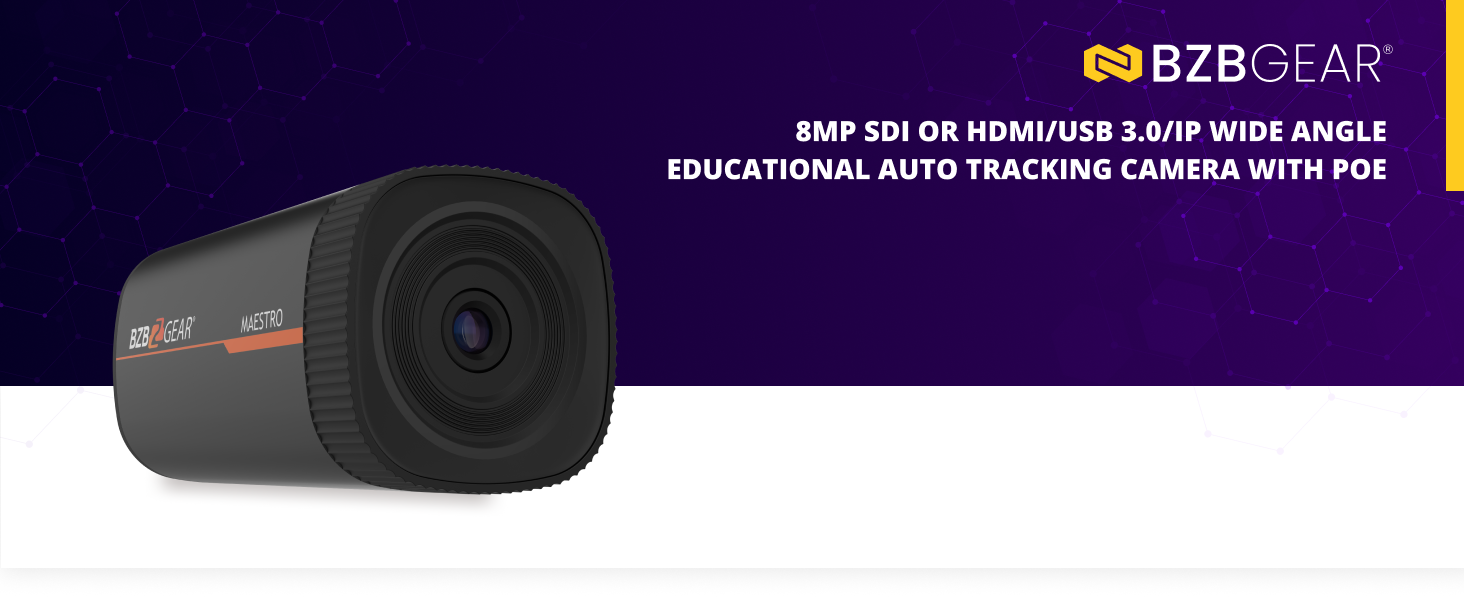

BZBGEAR 8MP HDMI/USB 3.0/IP Wide Angle Educational Auto Tracking Camera with POE

The BG-MAESTRO is a compact ePTZ auto-tracking camera that delivers extremely accurate tracking throughout its coverage area. Designed to be easily configurable, the Maestro requires no additional software to set the auto-tracking parameters which is completed through the web based interface. With electronic pan, tilt, and zoom (ePTZ) capabilities, tracking is accomplished with a fixed lens and maintains a very compact form factor. Power over ethernet (PoE) technology further simplifies installation, requiring only one cable for power and internet connectivity.

This camera supports SRT, enabling high-quality, low-latency video to be sent reliably over the internet.

The BG-MAESTRO can simultaneously output USB 3.0, 3G-SDI / HDMI, and IP streaming in resolutions up to 1080p@30Hz. The Maestro also utilizes a 1/2.8 in high quality 4K CMOS sensor to provide low noise and a high SNR for the clearest image possible. The camera is capable of up to a 3x digital zoom and ePTZ controls automatically track subjects in its field of view. It can accomplish this task between distances of 15ft to 50ft from the camera.

With 5 simultaneous output streams the BG-Maestro allows multiple angles to be broadcast at once. This camera is ideally suited for educational purposes, lectures, fitness instructors, and hobbyists. The Maestro has smooth tracking that is not affected by minor movements of subjects and it is also resistant to acquisition of interfering subjects.

This camera is further equipped with a 3.5mm stereo input for the connection of an external microphone.

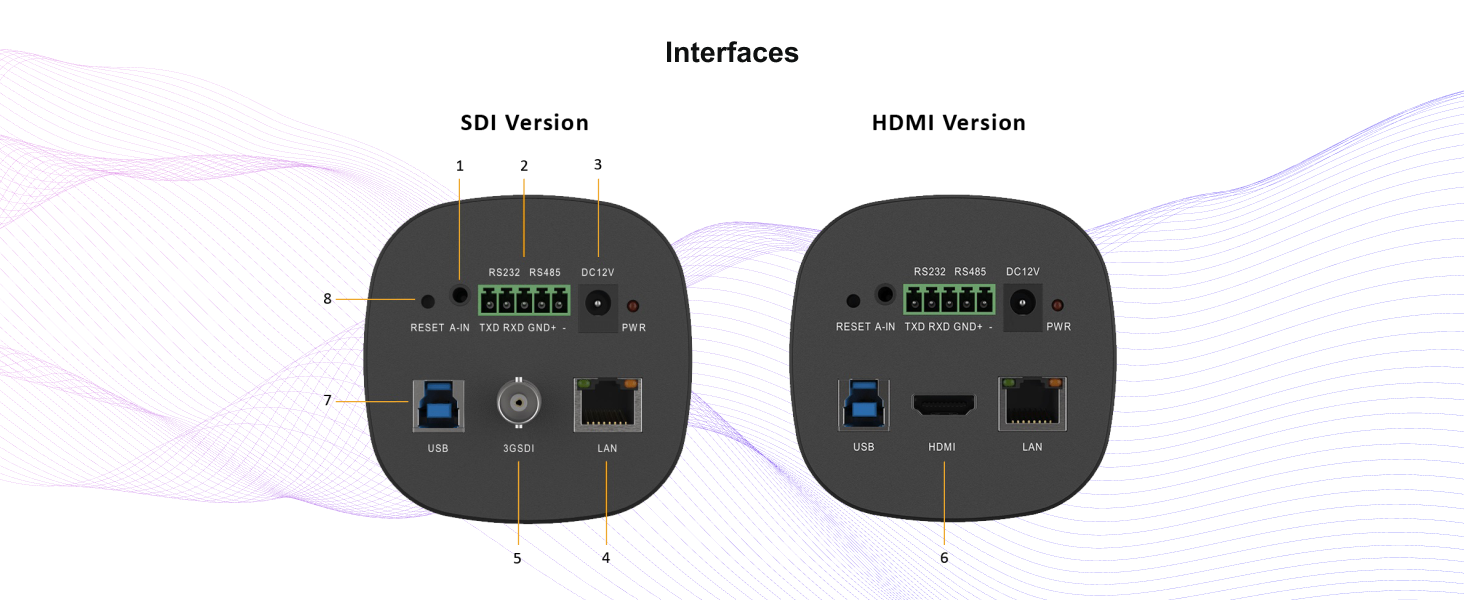

1. A-In: Connect external audio sources such as a microphone or small audio mixer to embed the sound into all video output interfaces.
2. RS-232, RS-485: Connect cascading RS-232 or RS-485 to control the camera(s) with a joystick controller or control software.
3. Power: Connect supplied 12V power adapter.
4. LAN: Connect to a network switch via category cable to supply power (PoE), control (TCP/IP or webGUI) and stream.
5. 3G-SDI: Connect to an SDI device up to 330ft such as a video production switcher or a video display at resolutions up to 3G (1080p@30Hz) over SDI cabling.
6. HDMI: Connect to an HDMI device such as a video production switcher or a video display at resolutions up to 1080p@30Hz.
7. USB: Connect USB3.0 type B cable to a PC for plug & play connectivity for any conferencing service like Skype or Zoom, supporting resolution up to 1080p@30Hz.
8. Reset: Hold Reset button to factory restore.
