BZBGEAR Compact PTZ 1080P FHD 10X Camera with HDMI/SDI/USB 3.0/POE

Introducing the BG-VPTZ-HSU3, a versatile COMPACT PTZ 1080P FHD camera with 10X/20X/30X zoom options, multiple output interfaces (HDMI, 3G-SDI, USB 3.0, IP streaming), and a compact design perfect for offices and classrooms. For enhanced audio/video over IP streaming, the BG-VPTZ-HSU3 supports NDI|HX2 with the BG-VPTZN-HSU3 model.

With the ability to capture 1080p@60Hz video, this camera delivers exceptional image quality and supports H.264/H.265 video compression and RTMP(S) for live streaming. Offering flexible control via RS-232, RS-485, LAN, or IR remote, it also boasts 255 preset positions.  Additional features include Power over Ethernet (PoE), audio embedding, and a sturdy all-aluminum chassis, making it a top choice for high-quality video capture and streaming in various settings.

The BG-VPTZ-HSU3 camera boasts impressive capabilities. It can capture images at resolutions of up to 1080p at 60Hz, ensuring that you get high-definition, sharp visuals for your applications. What sets it apart is its versatility in output options, with simultaneous HDMI, 3G-SDI, USB 3.0, and IP streaming outputs. This flexibility enables seamless integration into various workflows, making it adaptable for a wide range of settings and purposes.

Additionally, it offers 10X, 20X, or 30X optical zoom lenses, which is invaluable for capturing detailed close-ups, even in large venues. For applications where synchronized audio and video are crucial, the camera features a 3.5mm audio input jack to embed audio directly into the video stream. It supports H.264 and H.265 video compression formats and can broadcast using ONVIF, RTSP, and RTMP IP streaming protocols.

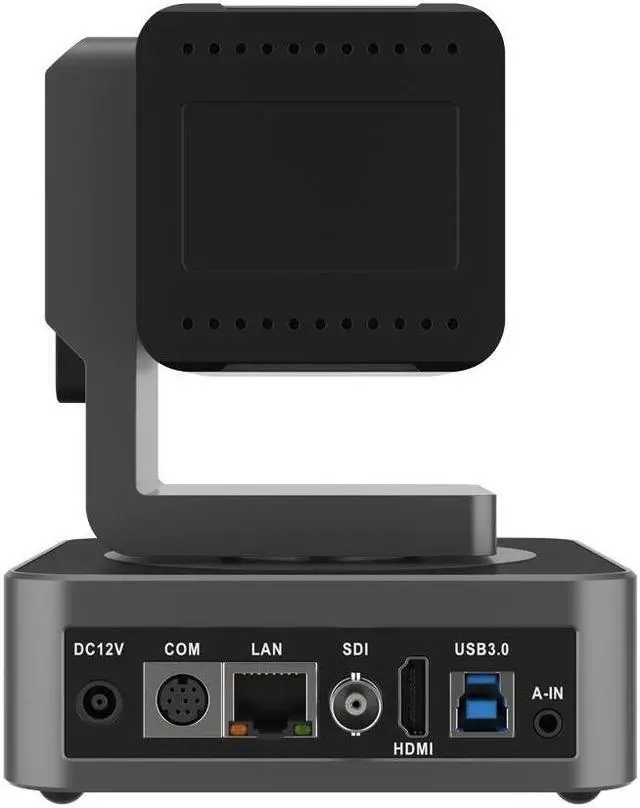

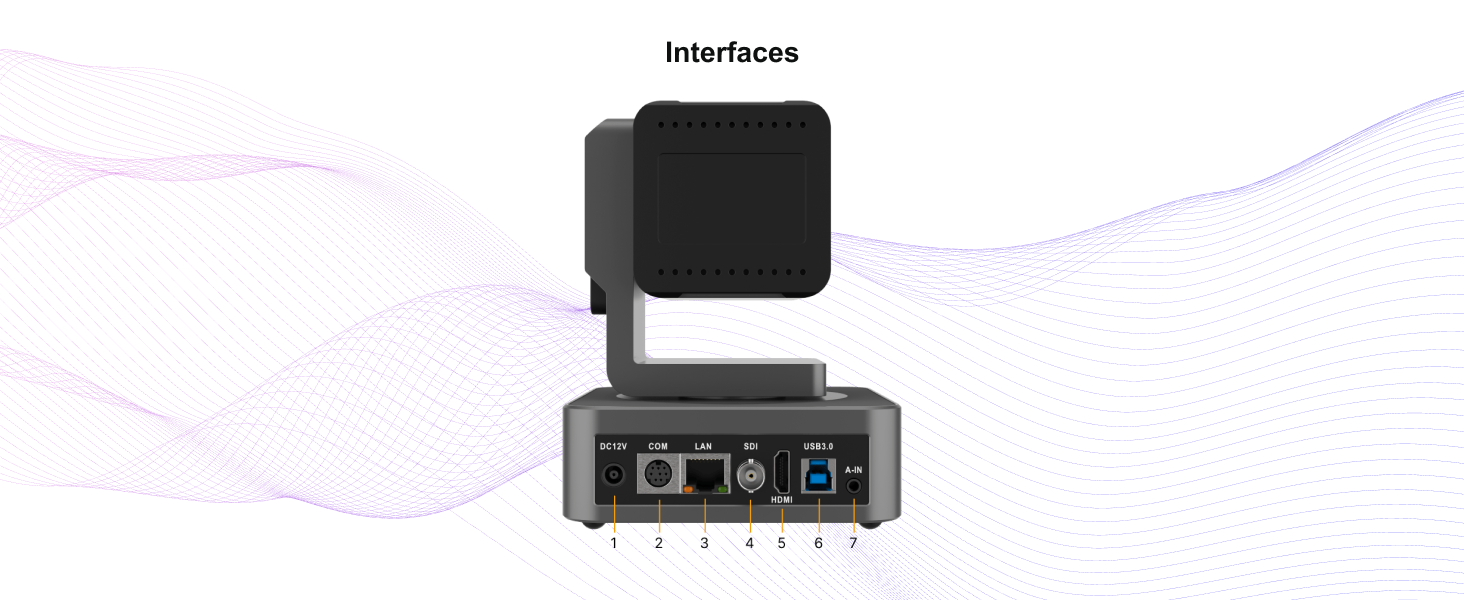

1. Power: Connect supplied 12V power adapter.
2. COM: Connect cascading RS-232 to control the camera(s) with a joystick controller or control software.
3. LAN: Connect to a network switch via category cable to supply power (PoE), control (TCP/IP or webGUI) and stream.
4. SDI: Connect to an SDI device such as a video production switcher or a video display at resolutions up to 3G (1080@60Hz) up to 330ft away over SDI cabling.
5. HDMI: Connect to an HDMI device such as a video production switcher or a video display up to 1080p@60Hz.
6. USB: Connect USB3.0 type B cable to a PC for plug & play connectivity for any conferencing service like Skype or Zoom.
7. A-In: Connect external audio sources such as a microphone or small audio mixer to embed the sound into all video output interfaces.
