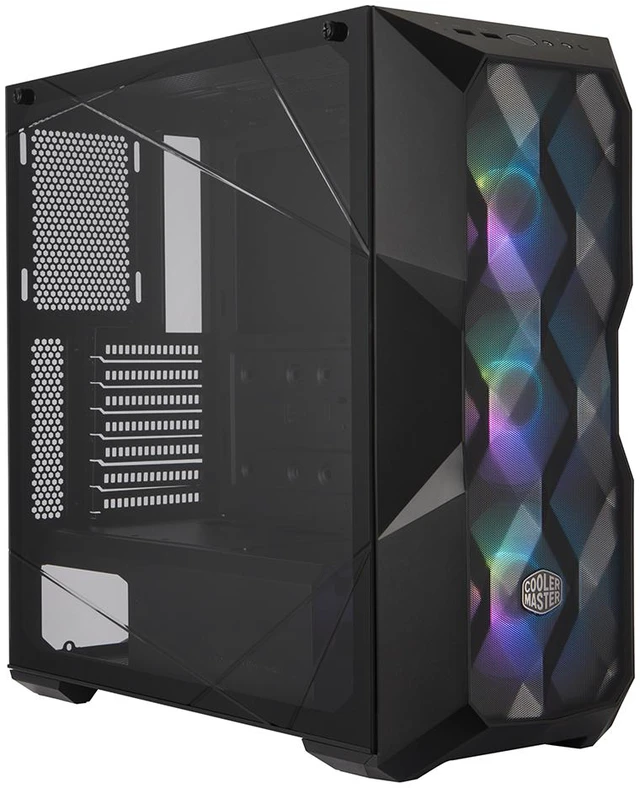

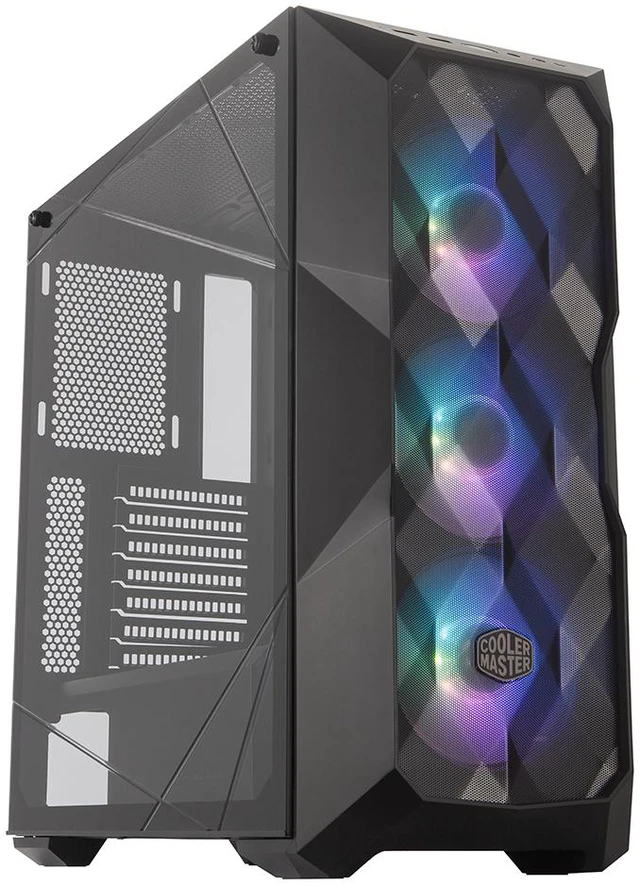

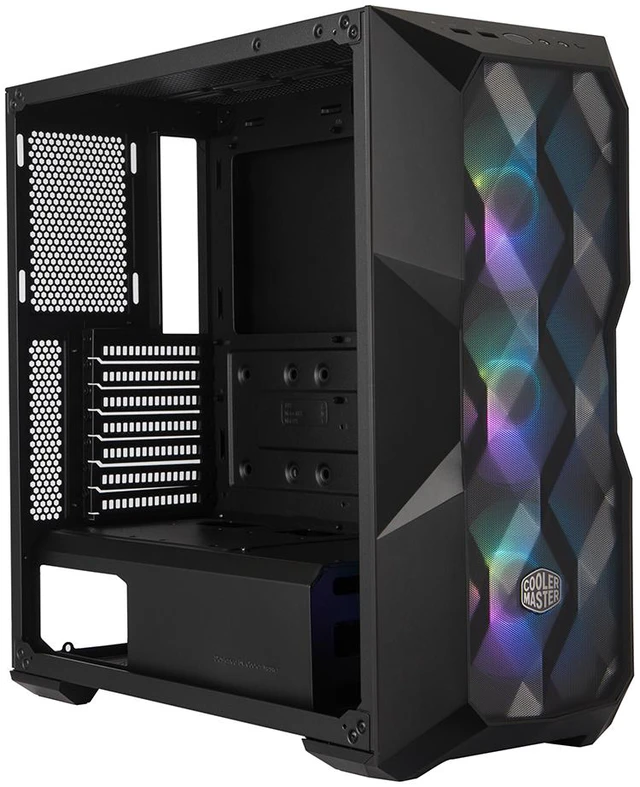

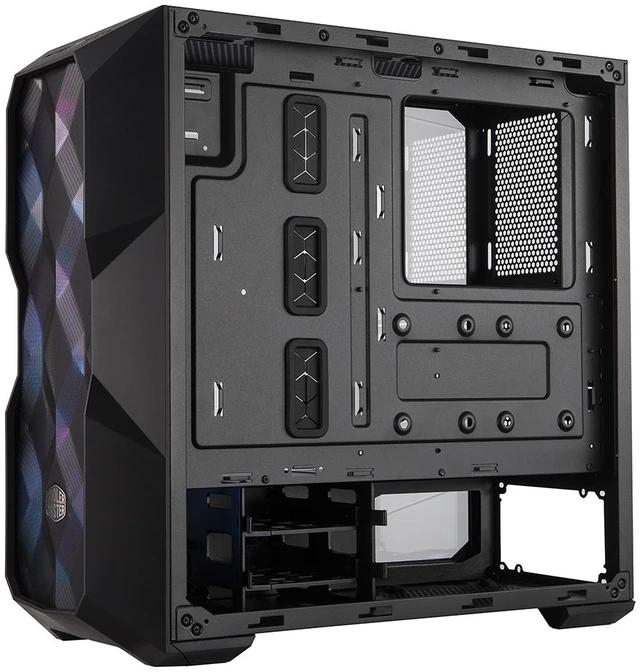

Learn more about the Cooler Master MCB-D500D-KGNN-S02
Model| Brand | Cooler Master |
|---|
| Model | MCB-D500D-KGNN-S02 |
|---|
Details| Type | ATX Mid Tower |
|---|
| Color | Black |
|---|
| Case Material | Steel, Mesh, Plastic Left Side Panel: Tempered Glass |
|---|
| Motherboard Compatibility | ATX / E-ATX / Micro ATX / Mini ITX / SSI CEB |
|---|

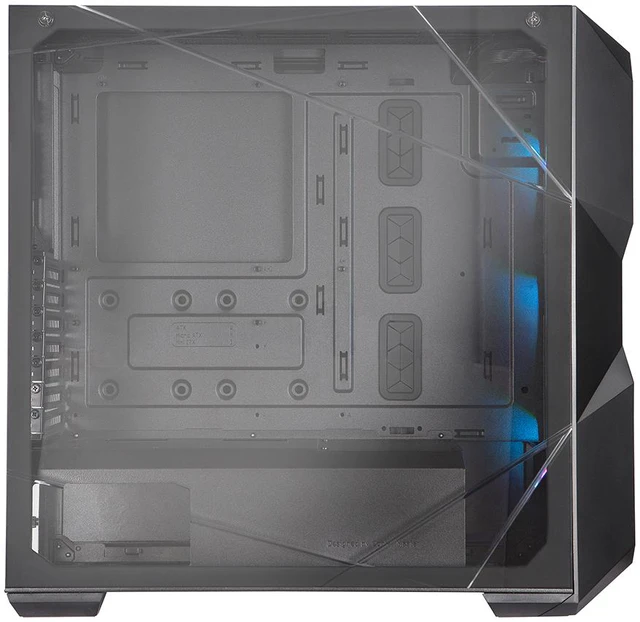

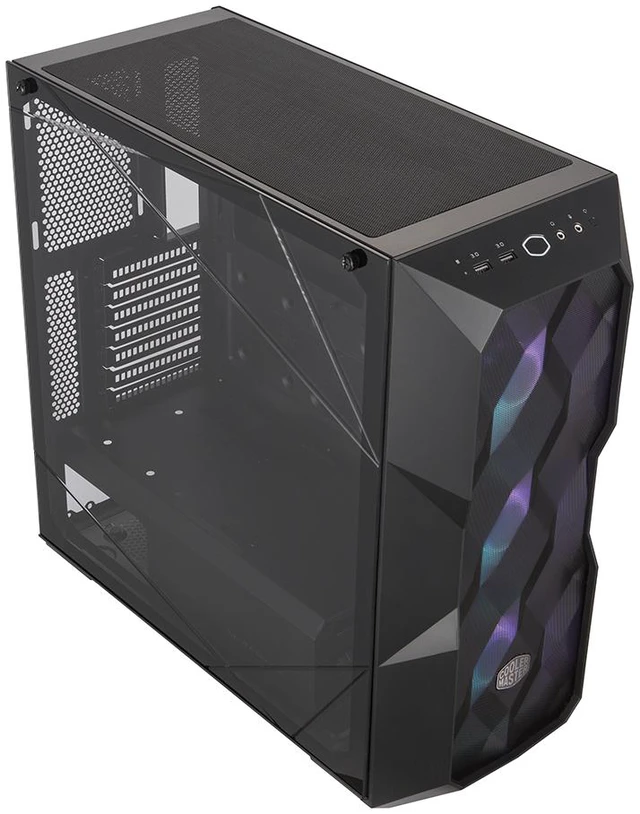

| Side Panel | 1 x Side Tempered Glass Panel |
|---|
| Dust Filters | Bottom / Front / Top |
|---|
Expansion| Internal 3.5" Drive Bays | 2 |
|---|
| Internal 2.5" Drive Bays | 4 |
|---|
| Expansion Slots | 7 |
|---|

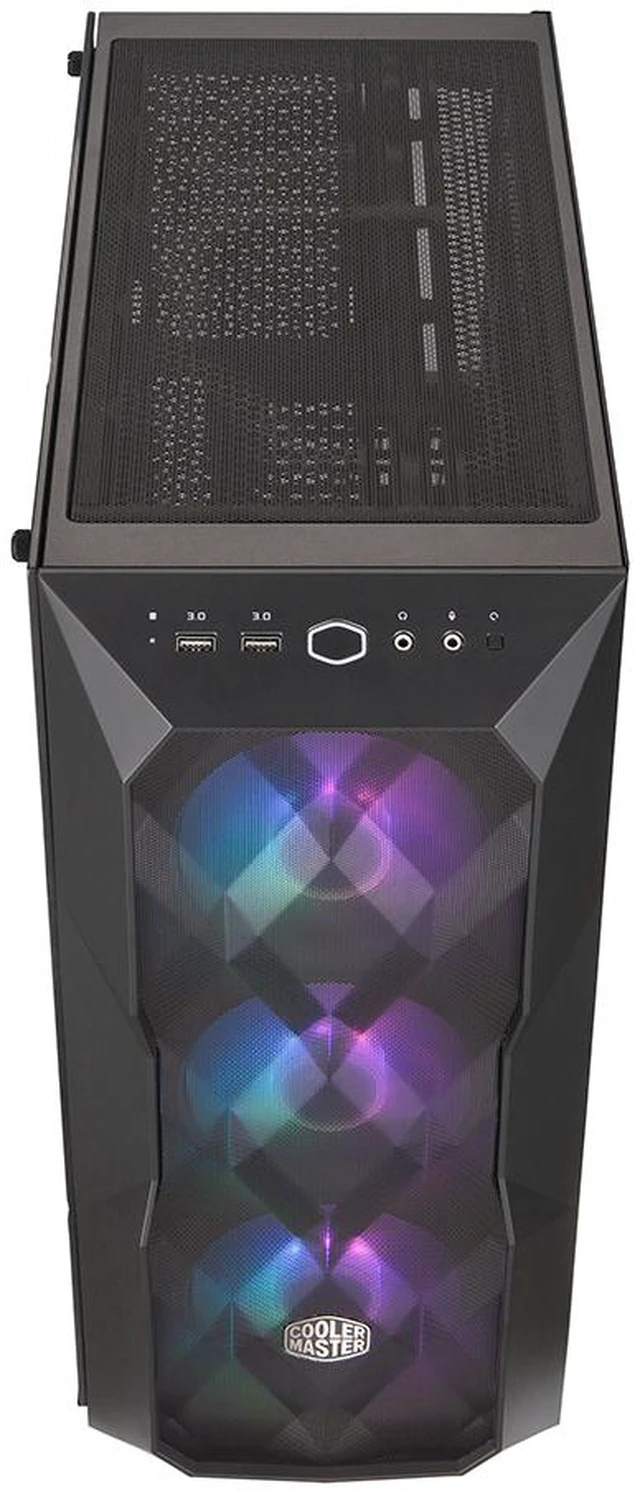

Front Panel Ports| Front Ports | USB Ports: 2 x USB 3.2 Gen 1 (USB 3.0) Audio In / Out: 1 x 3.5mm Audio Jack; 1 x 3.5mm Mic Jack |
|---|
Cooling System| Fan Options | Front - 2 x 140mm / Front - 3 x 120mm / Rear - 1 x 120mm / Top - 2 x 140mm / Top - 3 x 120mm |
|---|

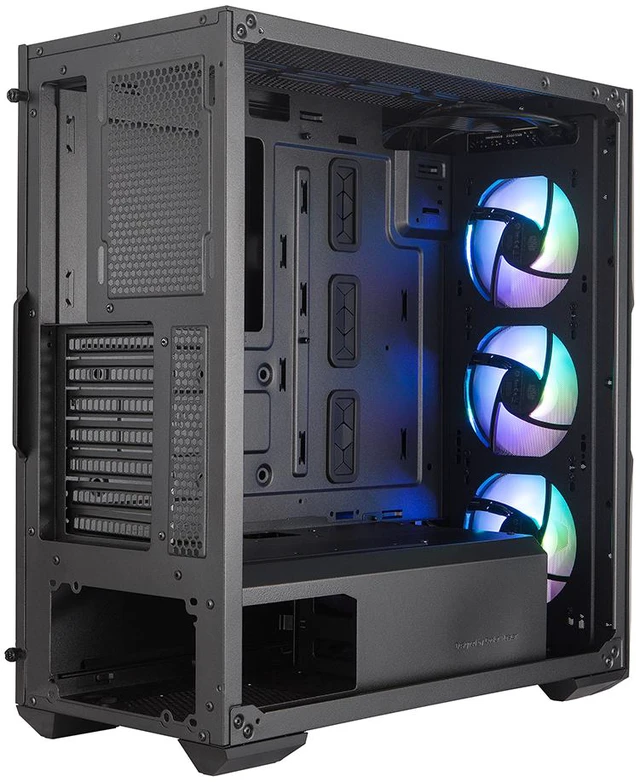

| Pre-installed Fans | Front - 3 x 120mm / Rear - 1 x 120mm |
|---|
| Radiator Options | Front - Up to 120mm / Front - Up to 140mm / Front - Up to 240mm / Front - Up to 280mm / Front - Up to 360mm / Rear - Up to 120mm / Top - Up to 120mm / Top - Up to 240mm / Top - Up to 360mm |
|---|
Dimensions & Weight| Max GPU Length | 410 mm |
|---|
| Max CPU Cooler Height | 180mm / 7.08” (295mm / 11.61” with HDD cage removed) |
|---|
| Max PSU Length | 180 mm |
|---|
| Dimensions | 493 x 217 x 469mm |
|---|
| Weight | 6.95kg |
|---|
Additional Information| First Listed on Newegg | September 18, 2026 |
|---|
