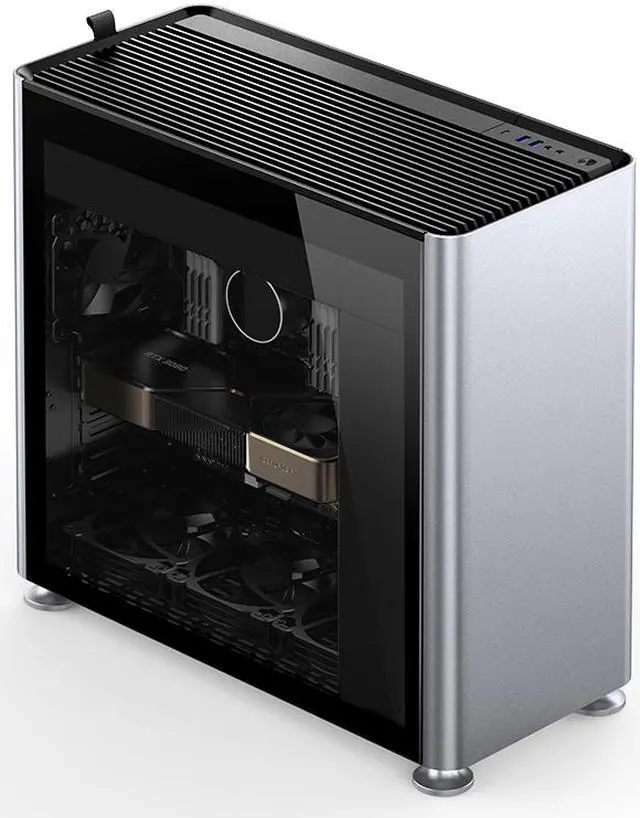

JONSPLUS i 400
The front panel of todays PC case uses multiple fan and mesh designs, which may destroy the integrated visual appearance, after our designers developed a new structural method, under good cooling performance conditions, the outline of the PC case can be presented intuitively and the comfortable way. i400 is the first ATX case of JONSPLUS, which meets our definition of the - i series
Under reasonable size control, the i400 can accommodate E-ATX motherboard and 340 graphics cards, and up to 6 x 3.5in HDD storage space to meet the needs of content creators. The space for push and pull fan setup for 360 radiator (or support of 168mm height flagship air cooler), and from bottom to tops vertical air flow to remove the heat from hardware.
Support 360/280/240/120 Liquid Cooling
With the development of PC software and hardware, graphics cards play an increasingly important role in PC gaming or design rendering. In actual use, we found that the traditional bottom-mounted + enclosed power supply compartment structure will block the airflow to graphics card. As a result, when the graphics card heats up, the fan speed will increase accordingly and increase the noise level; and the i400 has front-mounted power supply design, the cooling fans at the bottom can directly blow the graphics card, forming a good vertical air circulation. For heavy loading work projects based on GPU rendering, the i400 can continue to provide a good and stable working environment for the graphics card.

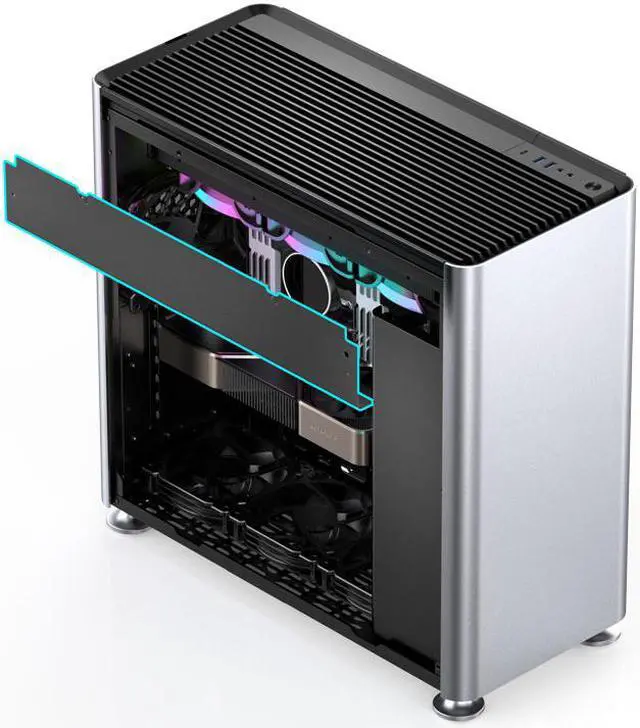

VERTICAL GRAPHICS CARD MOUNTING MODE HARDWARE SUPPORT SPECIFICATION
GPU Support: 340mm max
PCI-E riser (Optional) length:145mm
COOLING SUPPORT
Chassis fan support:
TOP: 3*120mm or 2*140mm Rear: 1*120mm BOTTOM: 3*120mm or 2*140mm (Fan is optional)
Air cooler support: Height 168mm max
Radiator support:
Top: 360/280/240/120 Bottom: 240

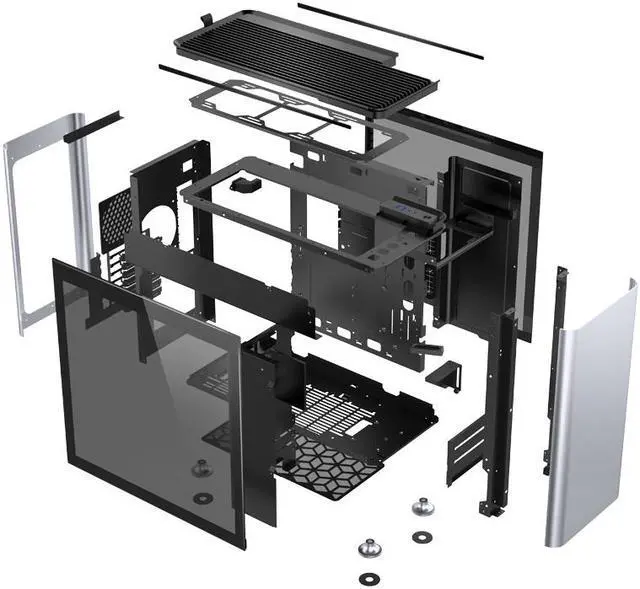

MAIN COMPONENT MATERIAL
Front & Rear Panel: 2.5mm aluminum alloy with sand blasted finishing
Grille style top cover: ABS + PC enhanced hardness plastic
Internal Structure: 0.8-1.0mm fully blackened steel plate
Side Panel: 4.0mm tempered glass
SPECIFICATION
Model name: i 400
Model version: Ver.1 (Tempered Glass version, Silver)
Product size: 502mm(L)*231mm(D)*480mm(H)(include case stand)
Case Stand height: 25mm
MB support: ITX/M-ATX/ATX/E-ATX
GPU Support: 340mm max
PCI slots: 7

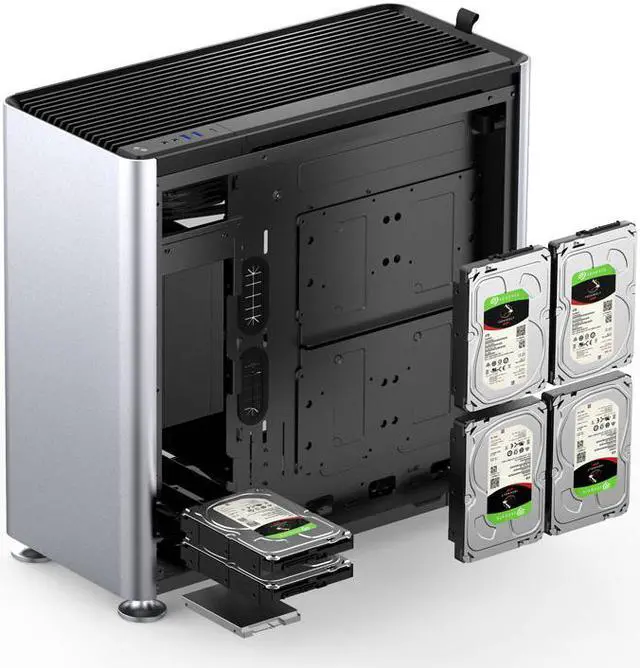

HDD Support: 3.5"HDD x6 + 2.5"SSD x1 or 3.5"HDD x2 + 2.5"SSD x5
PSU Support: ATX PSII, 185mm~270mm
Front I/O: USB 3.2 Gen 2 Type-C x1(10Gbps),USB 3.2 Gen 1 Type-A x2(5Gbps),1*AUDIO,1*MIC
Air filter system: Top, bottom, rear (pre-installed)
Weight: NW: 11.47KG/GW: 13.42KG
Package size: 605*327*554mm
Foot pad: 2.5mm aluminum alloy with sandblasted treatment
