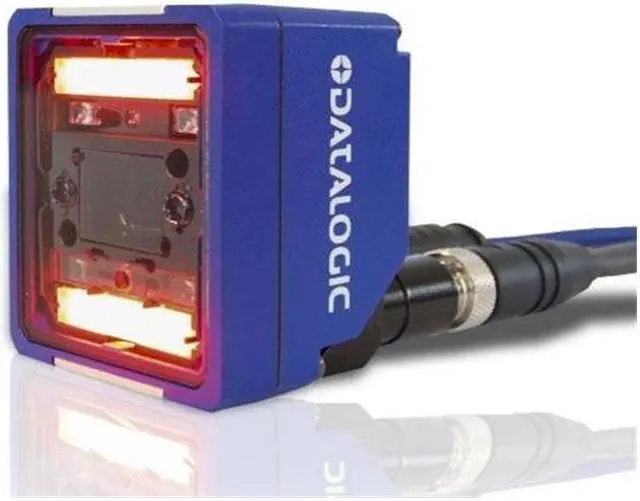

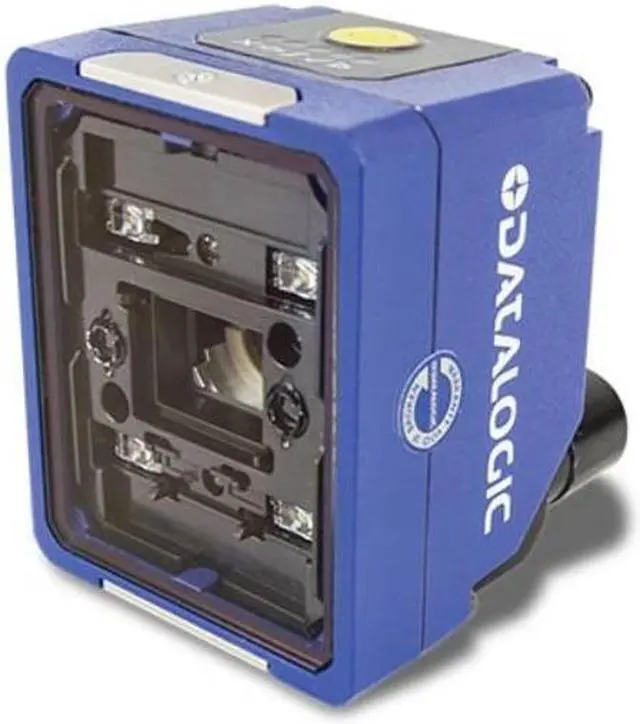

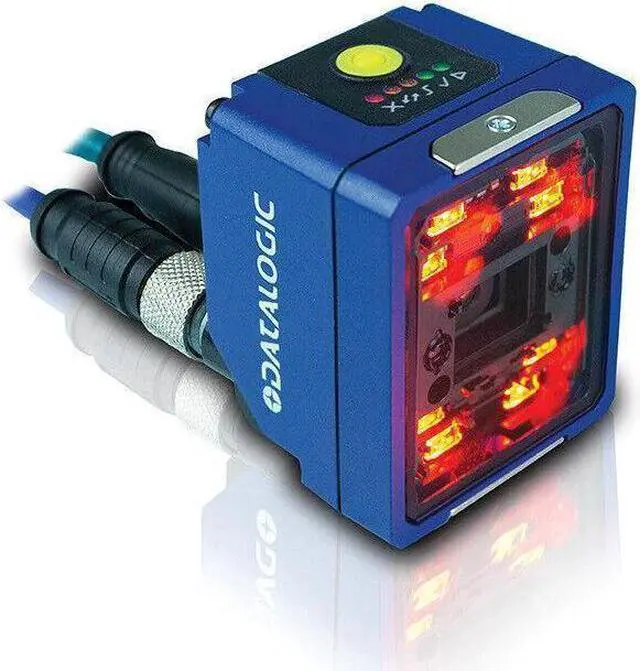

Datalogic MATRIX 220 385-010 Fixed Industrial 1D 2D DPM Barcode Scanner 1.2MP DPM-R 12MM 937900004

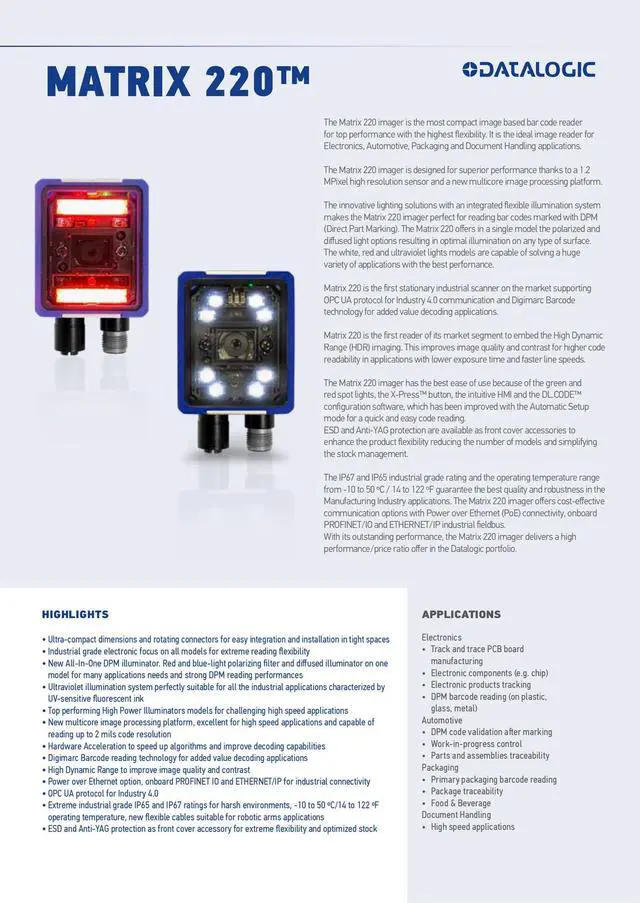

Product Introduction:

The Matrix 220 imager is the most compact image based bar code reader for top performance with the highest flexibility.

It is the ideal image reader for Electronics, Automotive, Packaging and Document Handling applications.

The Matrix 220 imager is designed for superior performance thanks to a 1.2 MPixel high resolution sensor and a new multicore image processing platform.

The innovative lighting solutions with an integrated flexible illumination system makes the Matrix 220 imager perfect for reading bar codes marked with DPM (Direct Part Marking).

The Matrix 220 offers in a single model the polarized and diffused light options resulting in optimal illumination on any type of surface.

The white, red and ultraviolet lights models are capable of solving a huge variety of applications with the best perfomance.

Matrix 220 is the first stationary industrial scanner on the market supporting OPC UA protocol for Industry 4.0 communication and Digimarc Barcode technology for added value decoding applications.

Matrix 220 is the first reader of its market segment to embed the High Dynamic Range (HDR) imaging.

This improves image quality and contrast for higher code readability in applications with lower exposure time and faster line speeds.

The Matrix 220 imager has the best ease of use because of the green and red spot lights, the X-Press button, the intuitive HMI and the DL. CODE configuration software,

which has been improved with the Automatic Setup mode for a quick and easy code reading.

ESD and Anti-YAG protection are available as front cover accessories to enhance the product flexibility reducing the number of models and simplifying the stock management.

The IP67 and IP65 industrial grade rating and the operating temperature range from -10 to 50 ºC / 14 to 122 ºF guarantee the best quality and robustness in the Manufacturing Industry applications.

The Matrix 220 imager offers cost-effective communication options with Power over Ethernet (PoE) connectivity, onboard PROFINET/IO and ETHERNET/IP industrial fieldbus.

With its outstanding performance, the Matrix 220 imager delivers a high performance/price ratio offer in the Datalogic portfolio.



Features:

highlights

Ultra-compact dimensions and rotating connectors for easy integration and installation in tight spaces

Industrial grade electronic focus on all models for extreme reading flexibility

New All-In-One DPM illuminator. Red and blue-light polarizing filter and diffused illuminator on one model for many applications needs and strong DPM reading performances

Ultraviolet illumination system perfectly suitable for all the industrial applications characterized by UV-sensitive fluorescent ink

Top performing High Power Illuminators models for challenging high speed applications

New multicore image processing platform, excellent for high speed applications and capable of reading up to 2 mils code resolution

Hardware Acceleration to speed up algorithms and improve decoding capabilities

Digimarc Barcode reading technology for added value decoding applications

High Dynamic Range to improve image quality and contrast

Power over Ethernet option, onboard PROFINET IO and ETHERNET/IP for industrial connectivity

OPC UA protocol for Industry 4.0

Extreme industrial grade IP65 and IP67 ratings for harsh environments, -10 to 50 ºC/14 to 122 ºF operating temperature, new flexible cables suitable for robotic arms applications

ESD and Anti-YAG protection as front cover accessory for extreme flexibility and optimized stock



Applications

Electronics

Track and trace PCB board manufacturing

Electronic components (e. g. chip)

Electronic products tracking

DPM barcode reading (on plastic, glass, metal) Automotive

DPM code validation after marking

Work-in-progress control

Parts and assemblies traceability Packaging

Primary packaging barcode reading

Package traceability

Food & Beverage Document Handling

High speed applications



Compatible Part Number: 937900005
