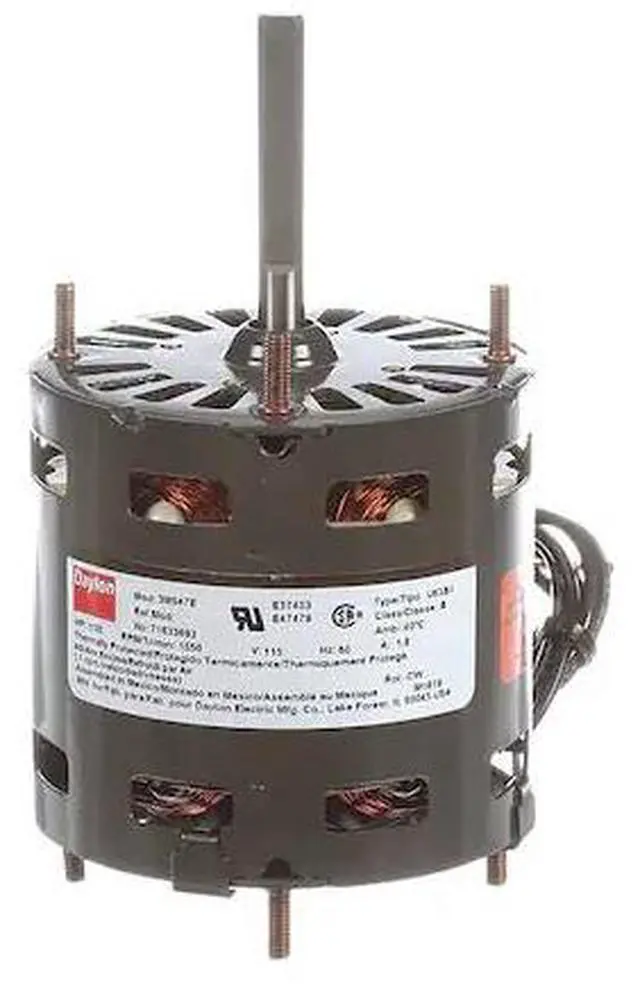

DAYTON 71633693M HVAC Motor,Open Air-Over, 1/20 HP, 1,550 Nameplate RPM, 1

The DAYTON - 71633693M is a HVAC Motor, specifically designed for heating, ventilation, and air conditioning units. This compact yet powerful motor plays an essential role in maintaining optimal environmental conditions in both commercial and residential settings. With its 3.3 inch diameter size, it offers efficient energy transfer within various HVAC systems.


Key features of the DAYTON - 71633693M include:


Voltage: Operates at an electrical input of 115V AC.

Motor Shaft Rotation: Spins in a CWSE direction ensuring proper operation.

Mounting Type: Uses Ring/Stud mounting type for secure attachment to compressors.

Design & Frame: Utilizes shaded pole motor design with a frame size of 3.3 inches.

RPM Range: Functions effectively between the range of 1,501 to 1,600 revolutions per minute (RPM).

Enclosure Design: Comes with Open Air-over enclosure design providing better cooling but less protection against dust and moisture.

Max Ambient Temperature Compatibility: Can function optimally up to temperatures as high as 40 degrees Celsius.

Nameplate RPM: 1550

Motor Bearings: Sleeve type motor bearings reducing friction between moving parts.

Motor Thermal Protection: Automatic thermal protection preventing overheating.

Full Load Amps: Capacity of up to two amperes (2 A).

Phase: Operates on single-phase power supply ideal for light commercial use or residential applications with a frequency of 60 Hz.

Standards and Certifications: Compliance with CSA Certified and UL Recognized standards ensuring quality and safety measures are met during usage by industry professionals.
