DIYmalls Nextion Enhanced 3.5 HMI Display NX4832K035 Resistive Touchscreen | DIYmalls Nextion Enhanced 3.5 inch HMI Display NX4832K035 480x320 TFT LCD Module for Arduino ESP32 Development Board
- Item #: 9SIVV5XM909554

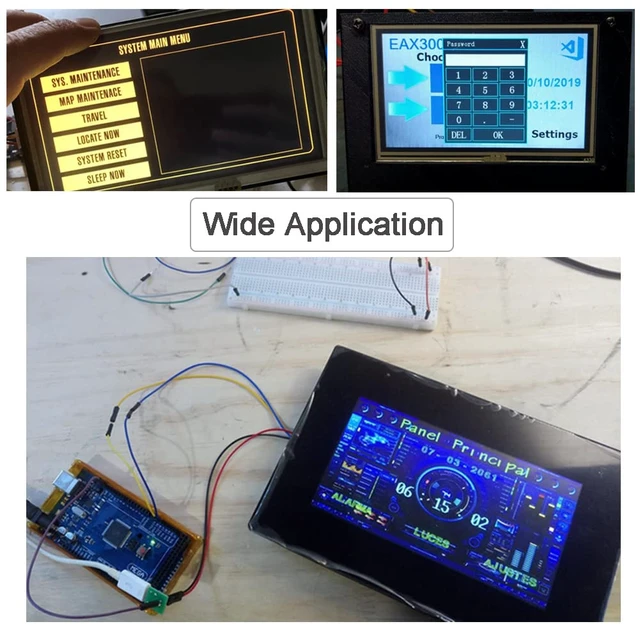

- Nextion enhanced display NX4832K035 is widely used in beauty equipment, smart home devices, household appliances, 3D printer, instrumentation etc.

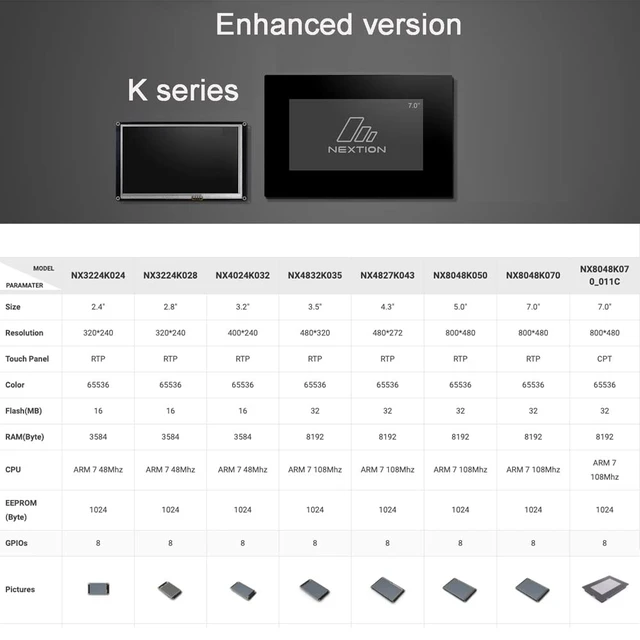

- Compared with NX4832T035, NX4832K035 add new functions: support save data to Flash, GPIO, larger flash capacity and faster CPU.
- Nextion enhanced 3.5 display is a 5V device, but many development boards are 3.3V. It won't make the display power up.

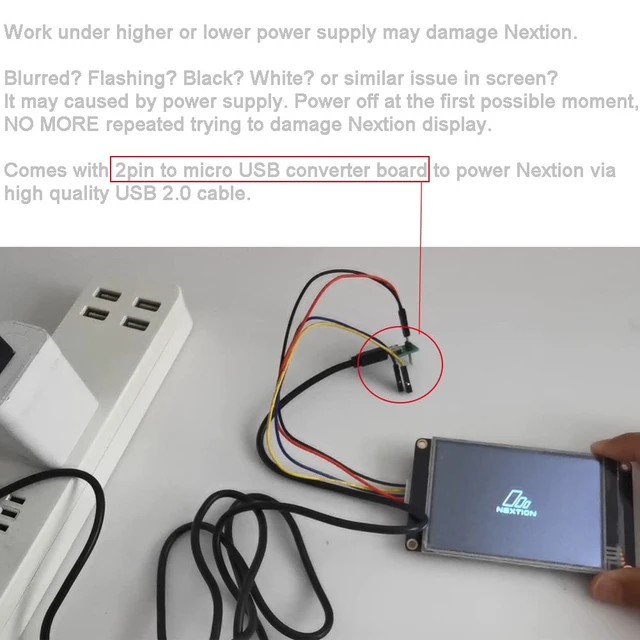

- To ensure Nextion 3.5 enhanced display work as expected, it's recommended to supply power via power adapter, not usb to ttl or boards.
- Uploading TFT file via sd card is faster than the usb to ttl, but pls ensure card: FAT32 format, only one tft file(no folder), and no more than 32GB.
+
+
Overview
Specs
Reviews
Description:
The Nextion Enhanced versions are more powerful. Compare to the basic Nextion displays, the new ones have added some new functions: support support save data to Flash, support GPIO, larger flash capacity and larger CPU clock
Features
Support GPIO
SD Card interface: support max max 32G Micro TF/SD card (FAT32 format)
Flash data storage space: 32MB
EEPROM: 1024 byte
RAM: 8192 byte
Instruction buffer: 1024 byte
Color:65K (65536) colors
Resolution:480×320 pixel
Adjustable Brightness:0~180 nit, the interval of adjustment is 1%
Specification
Visual Area:73.44mm(L)×48.96mm(W)
Layout size100.5(L)×54.94(W)×5.45(H)
Touch type: Resistive
BacklightLED
Backlight lifetime (Average): >30,000 Hours
Recommended power supply: 5V 500mA DC

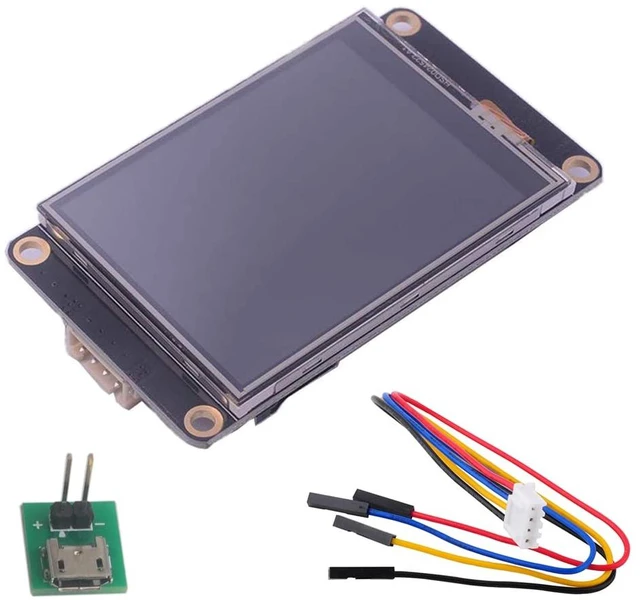

Package includes
1 x Nextion NX4832K035
1 x micro USB to 2pin male board
1 x 4pin 2.54mm to female cable
