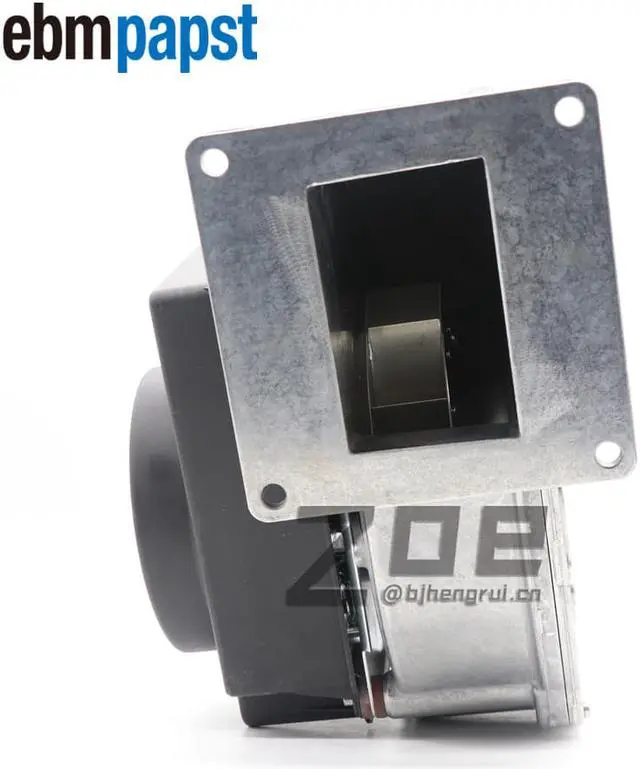

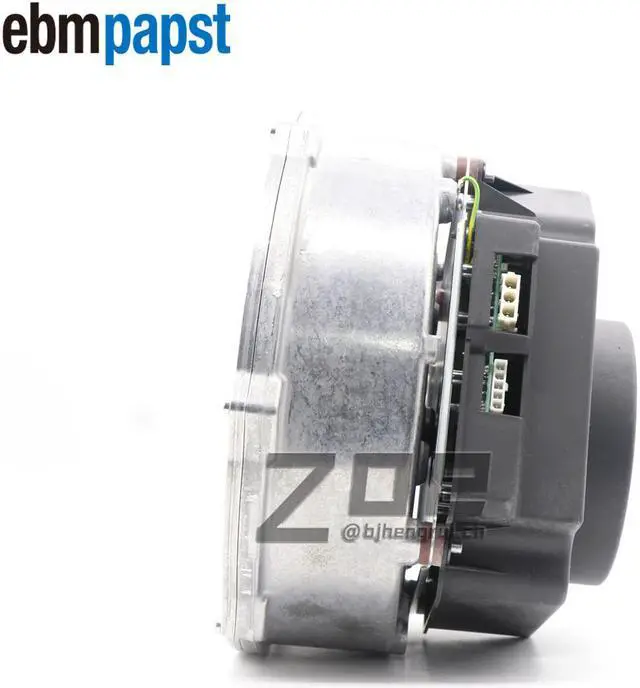

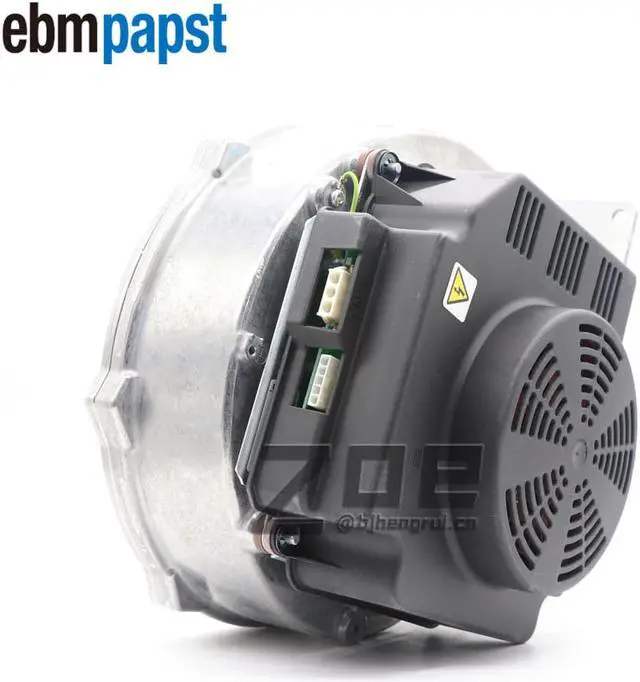

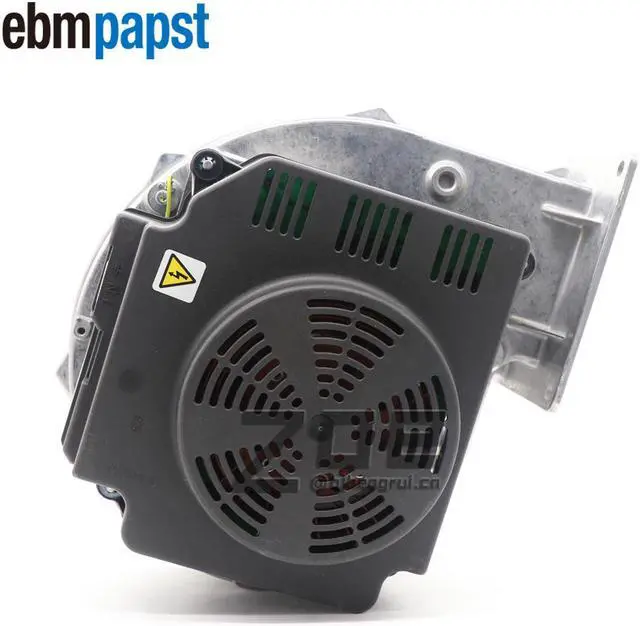

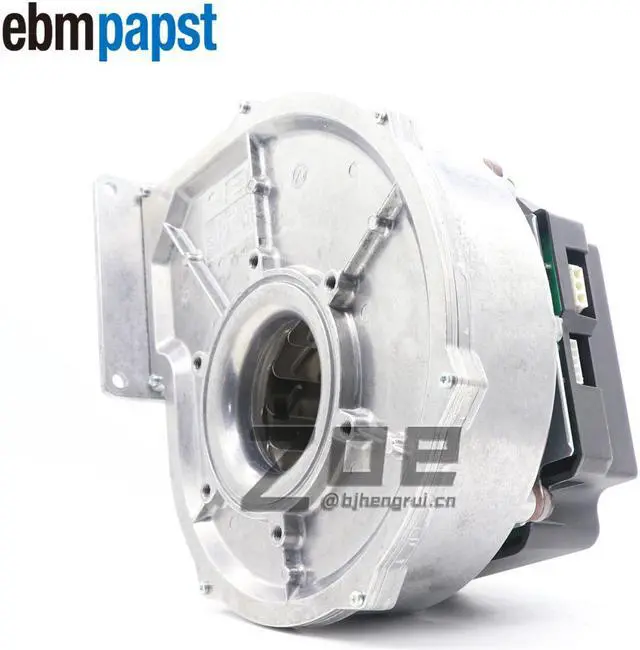

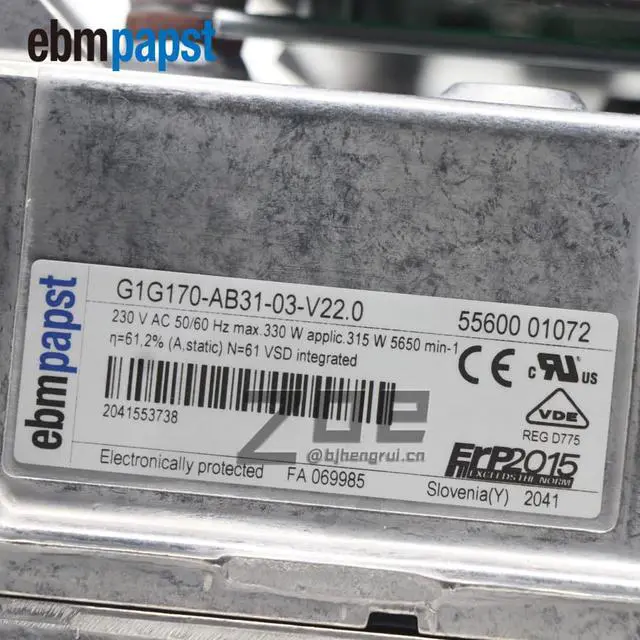

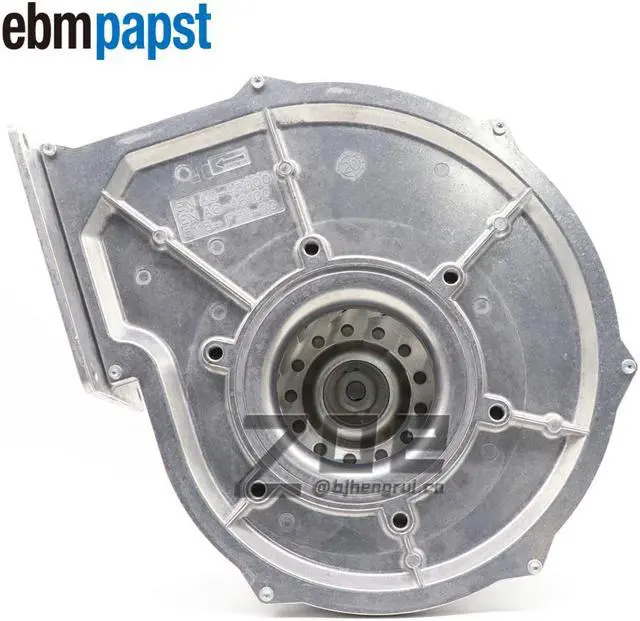

Ebmpapst G1G170-AB31-03 Centrifugal Blower AC 230V 315W 2.15A Gas Boiler Cooling Fan
- Item #: 9SIV0MWE0F6799
- Mfr. Part #: G1G170-AB31-03
- UNSPSC: 40101604
- Condition: 100% new and good quality.
- Model No.G1G170-AB31-03 ;Motor:M1G074-CF;Brand:ebmpapst ;
- Motor bearing : Ball bearing; Size:170mm ;Type:Forward Leaning Centrifugal Fan;
- Nominal voltage :230VAC; Speed (rpm) / min-1:5650(r/min); Power consumption / W :315(W); Degree of protection: IP20;Insulation class:B;
- We are professional Fan supplier,All products are New original genuine. Please rest assured to purchase, About the product parameters , please check and understand them carefully ,if not please feel free to contact us, we are pleased with serve for you.
+
+
Overview
Specs
Reviews
Product Parameter: Model.
G1G170-AB31-03 Motor: M1G074-CF
Type: Forward Leaning EC Centrifugal Fan Brand ebm-papst
Nominal voltage: 230VAC
Frequency/Hz: 50Hz
Speed: 5650RPM
Power consumption: 315W
Current draw: 2.15A
Weight: 4.5 kg
Size: 170mm
Impeller material: Aluminum sheet
Housing material: Die-cast
Aluminum Degree of protection: IP20
Insulation class: B
Motor bearing: Ball bearing
Conformity with standards: CE Min. ambient temperature / °C~Max.
ambient temperature / °C: -25~55?
Package: Fan*1
Technical features: Mass 4.5 kg Size 170 mm Surface of rotor Coated in black Material of protective cover Polyflam RPP 374-ND CS1 (UL 97-V0) Material of impeller Aluminium sheet Housing material Die-cast aluminium Direction of rotation Clockwise, seen on rotor Type of protection IP 20 Insulation class "B" Max. permissible ambient motor temp + 80 °C Min. permissible ambient motor temp - 40 °C Mounting position Any Cooling bore / aperture Rotor-side Premix If gas is premixed in the blower, a special blower must be used. Motor bearing Ball bearing Technical features - Tach output - Motor current limit - Emergency operation - PWM control input - Control interface with SELV potential safely disconnected from the mains - Over-temperature protected motor Touch current acc. IEC 60990 <= 3.5 mA Electrical leads With plug Motor protection Thermal overload protector (TOP) wired internally Product conforming to standard CE Approval CCC; CSA C 22.2 No. 113; UL 507; VDE
G1G170-AB31-03 Motor: M1G074-CF
Type: Forward Leaning EC Centrifugal Fan Brand ebm-papst
Nominal voltage: 230VAC
Frequency/Hz: 50Hz
Speed: 5650RPM
Power consumption: 315W
Current draw: 2.15A
Weight: 4.5 kg
Size: 170mm
Impeller material: Aluminum sheet
Housing material: Die-cast
Aluminum Degree of protection: IP20
Insulation class: B
Motor bearing: Ball bearing
Conformity with standards: CE Min. ambient temperature / °C~Max.
ambient temperature / °C: -25~55?
Package: Fan*1
Technical features: Mass 4.5 kg Size 170 mm Surface of rotor Coated in black Material of protective cover Polyflam RPP 374-ND CS1 (UL 97-V0) Material of impeller Aluminium sheet Housing material Die-cast aluminium Direction of rotation Clockwise, seen on rotor Type of protection IP 20 Insulation class "B" Max. permissible ambient motor temp + 80 °C Min. permissible ambient motor temp - 40 °C Mounting position Any Cooling bore / aperture Rotor-side Premix If gas is premixed in the blower, a special blower must be used. Motor bearing Ball bearing Technical features - Tach output - Motor current limit - Emergency operation - PWM control input - Control interface with SELV potential safely disconnected from the mains - Over-temperature protected motor Touch current acc. IEC 60990 <= 3.5 mA Electrical leads With plug Motor protection Thermal overload protector (TOP) wired internally Product conforming to standard CE Approval CCC; CSA C 22.2 No. 113; UL 507; VDE
