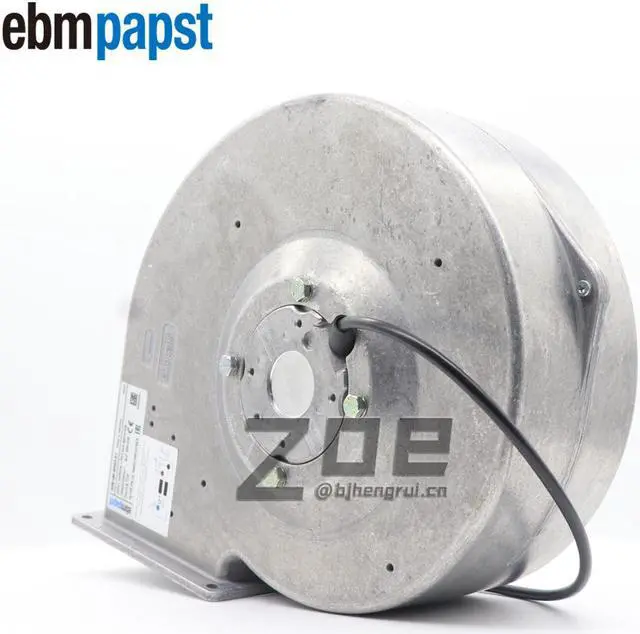

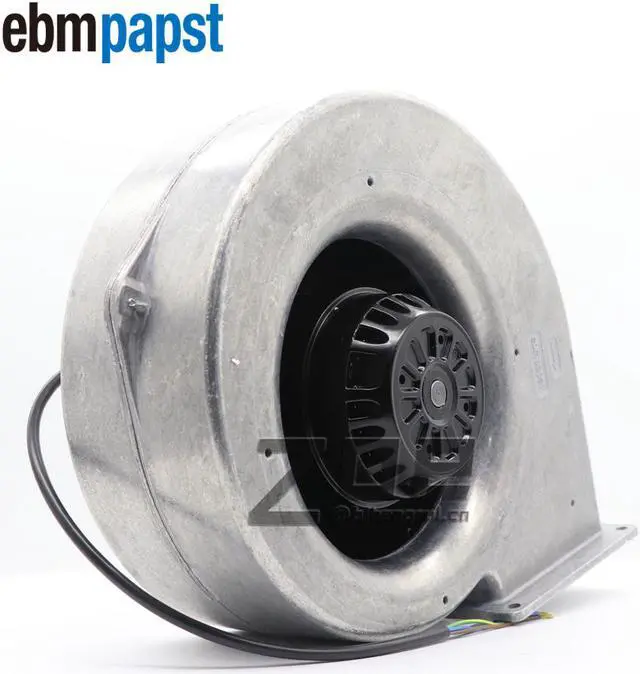

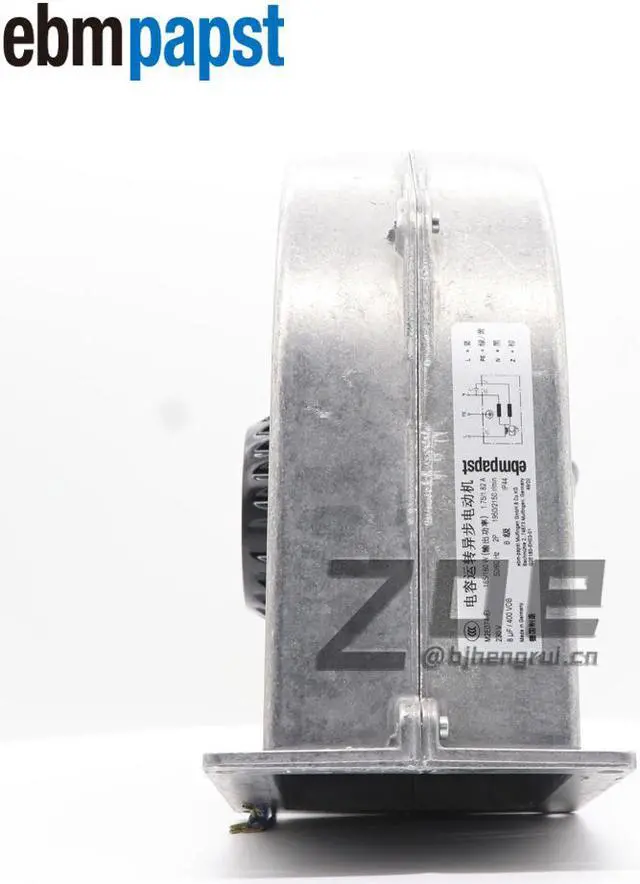

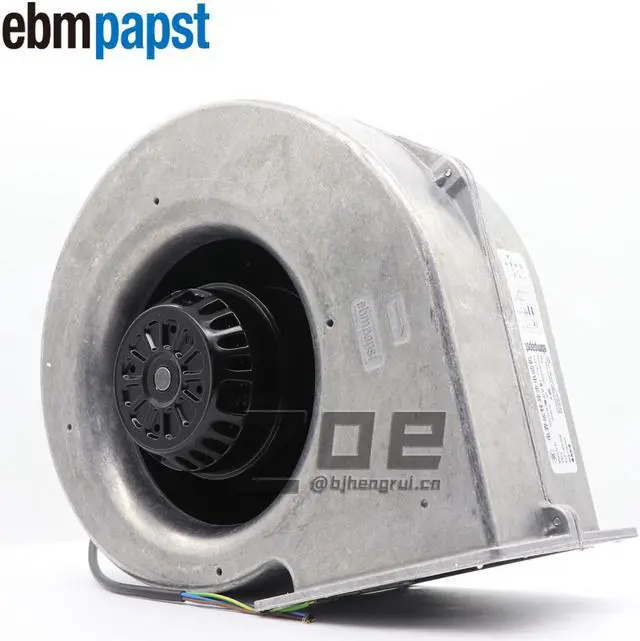

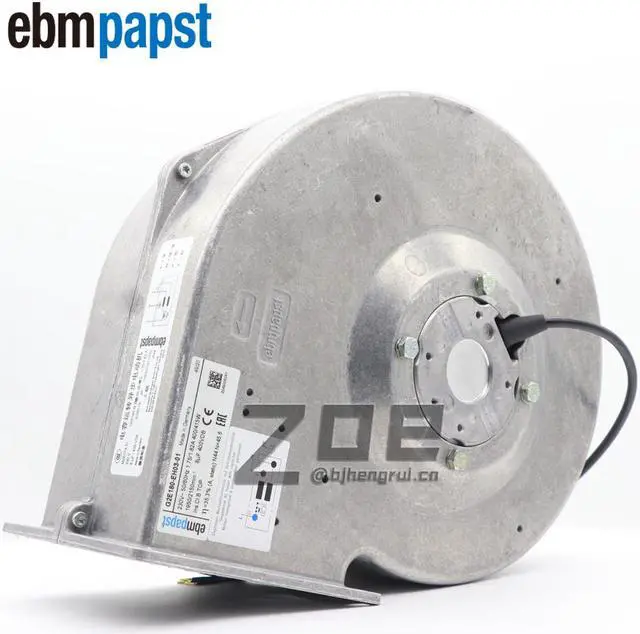

Ebmpapst G2E180-EH03-01 AC Blower Centrifugal Ball Bearing 230V 447.32CFM/370.8CFM (125 X 261 X 283mm)
- Condition: 100% new and good quality.
- Model No.G2E180-EH03-01;Motor:M2E074-EI;Brand:ebmpapst ;
- Motor bearing : Ball bearing; Size:180mm ;Type:Forward Leaning Centrifugal Fan;
- Nominal voltage :230VAC; Current draw:1.75/1.82A;Frequency/Hz:50/60Hz;Speed (rpm) / min-1:1950/2150(r/min); Power consumption / W :400/415(W); Degree of protection: IP44;Insulation class:B;
- We are professional Fan supplier,All products are New original genuine. Please rest assured to purchase, About the product parameters , please check and understand them carefully ,if not please feel free to contact us, we are pleased with serve for you.
+
+
Overview
Specs
Reviews
Product Parameter: Model.

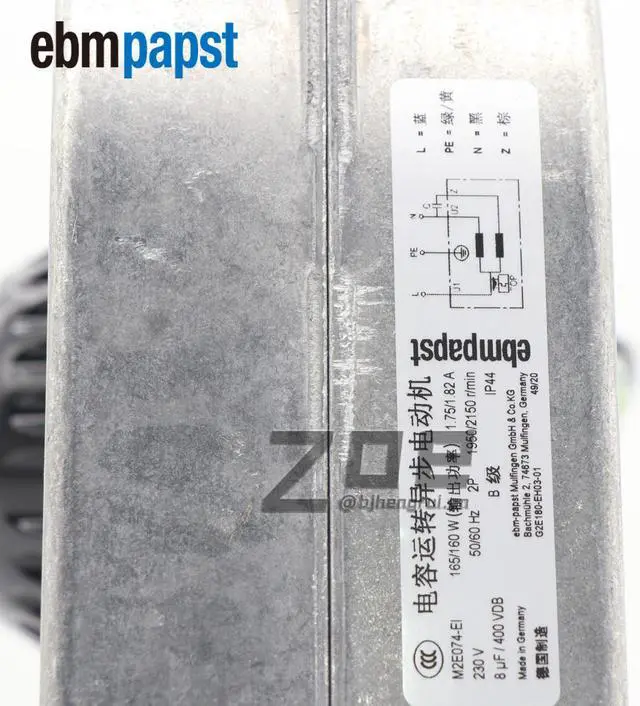

G2E180-EH03-01 Motor: M2E074-EI
Type: Forward Leaning Centrifugal Fan Brand ebm-papst
Nominal voltage: 230VAC
Frequency/Hz: 50/60Hz
Speed: 1950/2150RPM
Valid for approval/standard: CE
Power consumption: 400/415W
Current draw: 1.75 / 1.82A
Capacitor standard: S0 (CE)
Weight: 5.4 kg
Size: 180mm
Motor size: 74

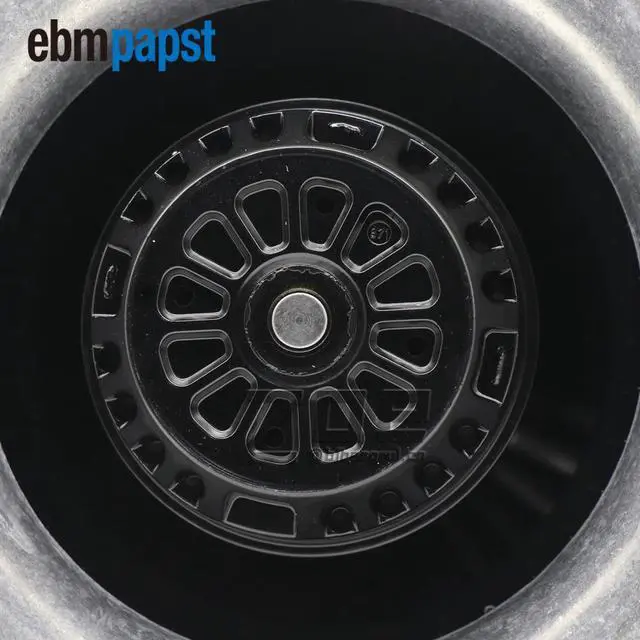

Impeller material: Sheet steel, painted black
Housing material: Die-case aluminum
Degree of protection: IP44
Insulation class: B
Motor bearing: Ball bearing
Approval: CCC; EAC; Min. ambient temperature / °C~Max.
ambient temperature / °C: -25~40?
Package: Fan*1
G2E180-EH03-01 Motor: M2E074-EI
Type: Forward Leaning Centrifugal Fan Brand ebm-papst
Nominal voltage: 230VAC
Frequency/Hz: 50/60Hz
Speed: 1950/2150RPM
Valid for approval/standard: CE
Power consumption: 400/415W
Current draw: 1.75 / 1.82A
Capacitor standard: S0 (CE)
Weight: 5.4 kg
Size: 180mm
Motor size: 74
Impeller material: Sheet steel, painted black
Housing material: Die-case aluminum
Degree of protection: IP44
Insulation class: B
Motor bearing: Ball bearing
Approval: CCC; EAC; Min. ambient temperature / °C~Max.
ambient temperature / °C: -25~40?
Package: Fan*1
