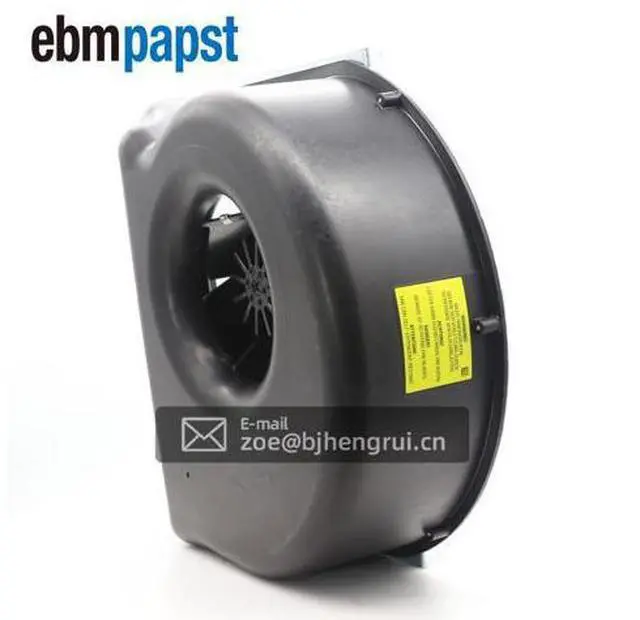

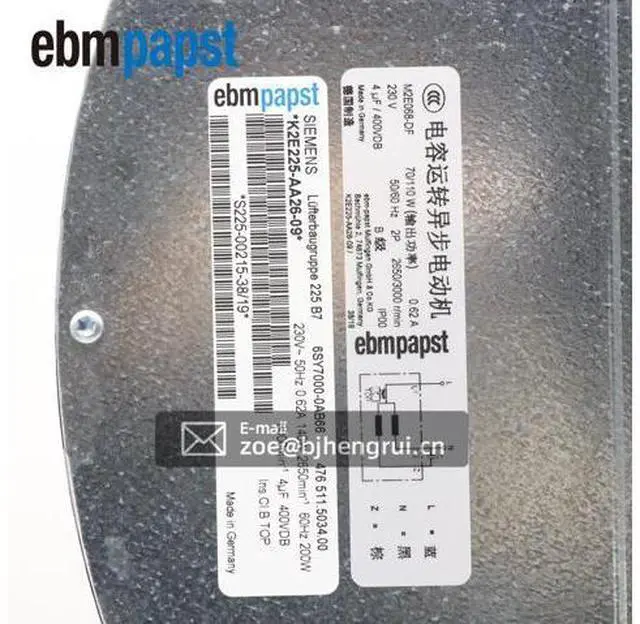

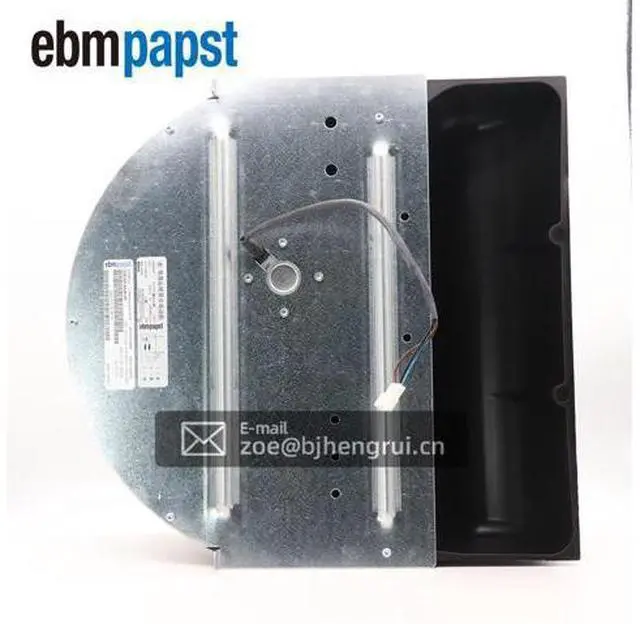

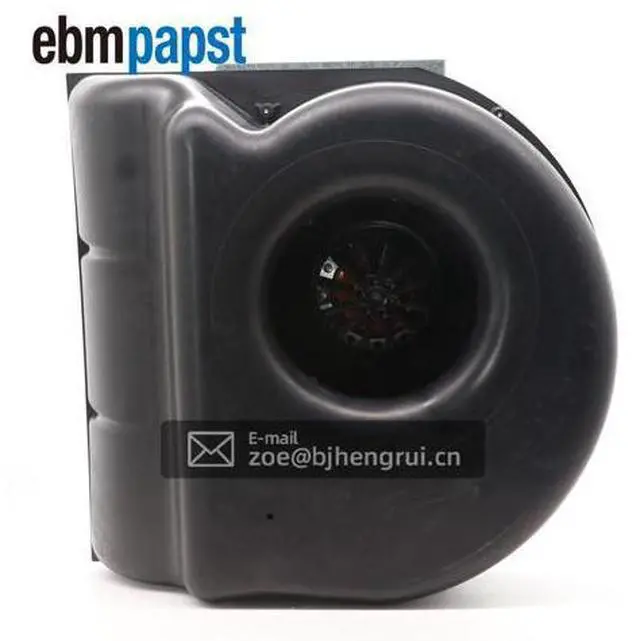

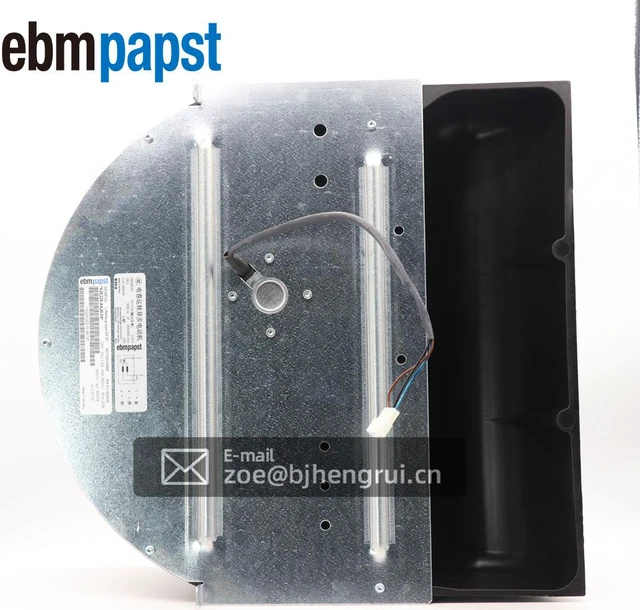

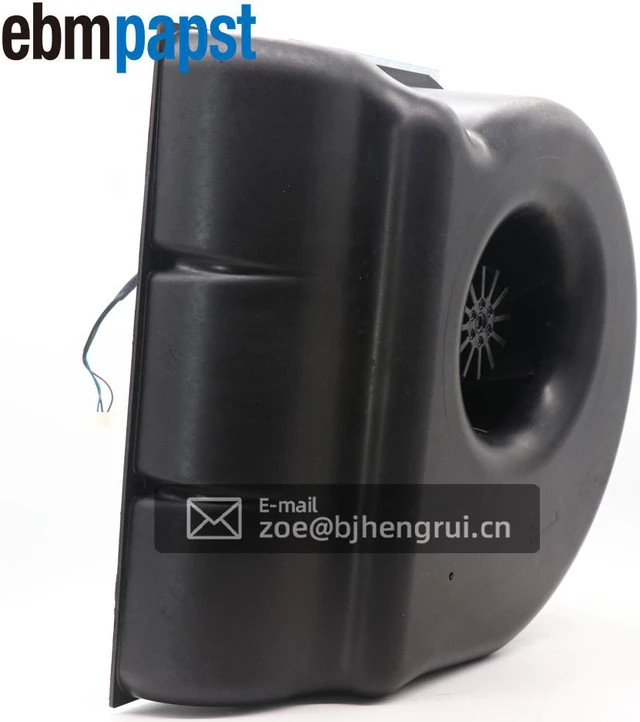

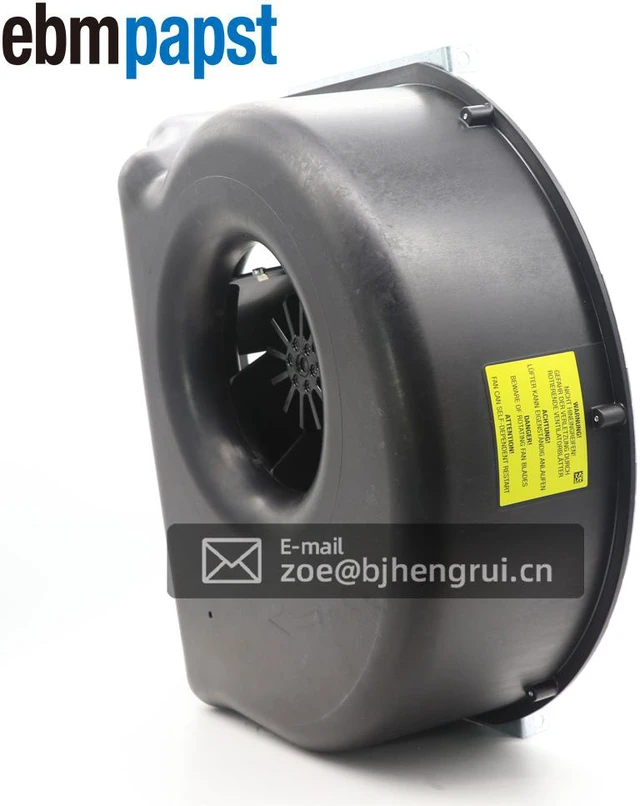

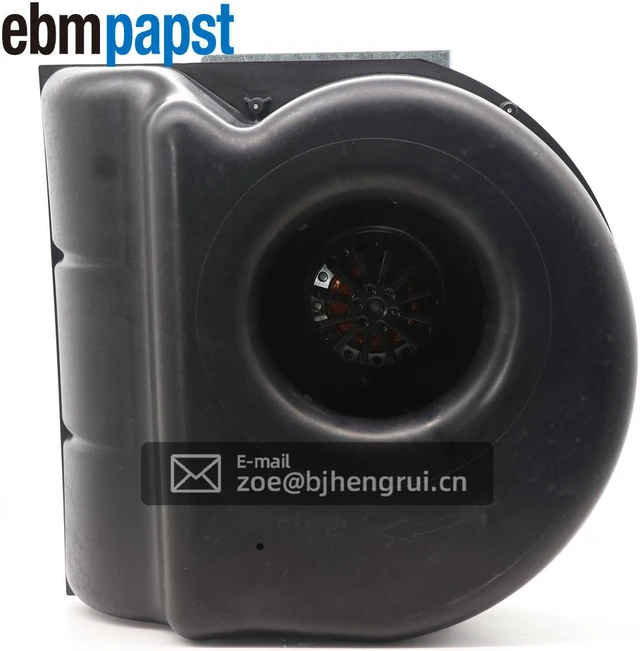

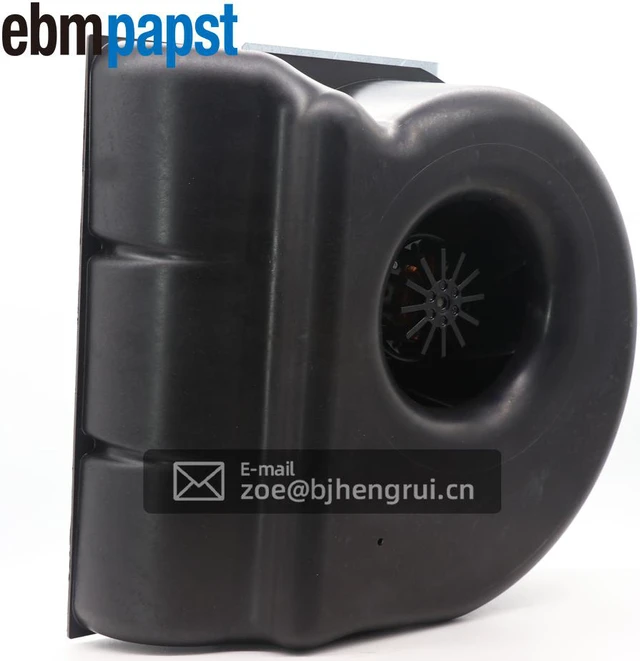

Ebmpapst K2E225-AA26-09 230VAC 2650/3000min-1 AC backward Curved Single Inlet Centrifugal Fan with housing

Nominal data Type K2E225-AA26-09 Motor M2E068-DF Phase 1~ 1~ Nominal voltage VAC 230 230 Frequency Hz 50 60 Type of data definition fa fa Valid for approval / standard - - Speed min-1 2650 3000 Power input W 140 192 Current draw A 0.62 0.85 Motor capacitor µF 4 4 Capacitor voltage VDB 400 400 Min. back pressure Pa 0 Min. ambient temperature °C -25 -25 Max. ambient temperature °C 55 55 Starting current A 1.5 1.45 Technical features Mass 4.4 kg Size 225 mm Surface of rotor Coated in black Material of impeller PA plastic Housing material PA plastic Number of blades 7 Direction of rotation Clockwise, seen on rotor Type of protection IP 00; Depending on installation and position as per EN 60034-5 Insulation class "B" Humidity class F1-2 Max.

permissible ambient motor temp. (transp. / storage) + 80 °C Min. permissible ambient motor temp. (transp. /storage) - 40 °C Mounting position Shaft horizontal or rotor on bottom; rotor on top on request Condensate discharge holes Rotor-side Operation mode S1 Motor bearing Ball bearing Touch current acc. IEC 60990 (measuring network Fig. 4, TN system) < 0.75 mA Motor protection Thermal overload protector (TOP) wired internally Cable exit Variable Protection class I (if protective earth is connected by customer) Product conforming to standard EN 60335-1
Approval CCC PACKAGE: FAN *1 PCS
