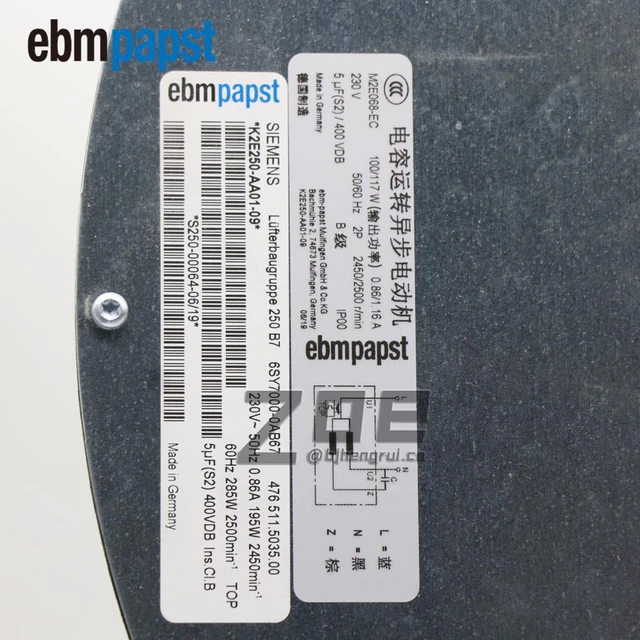

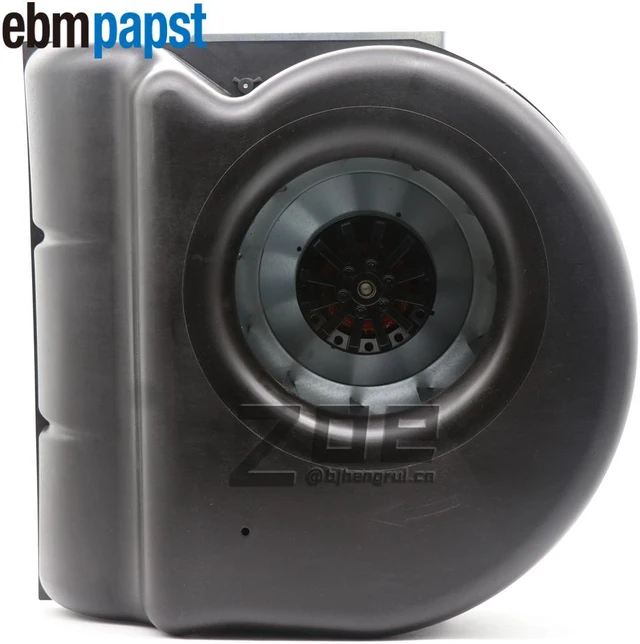

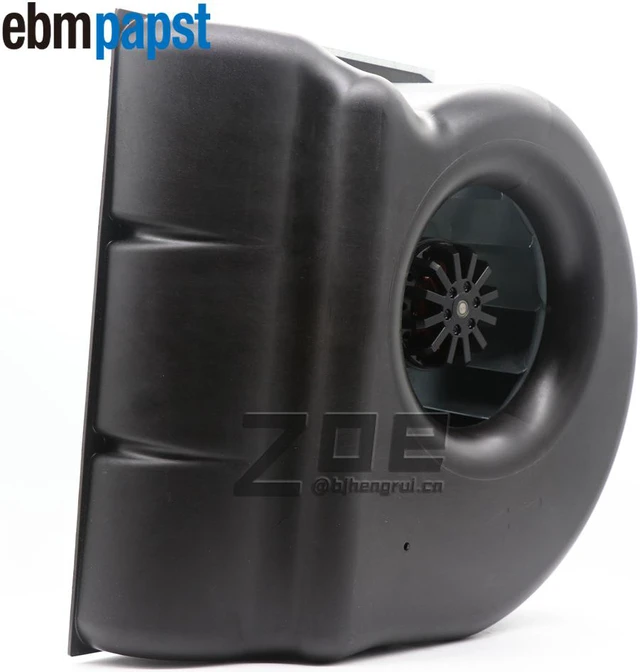

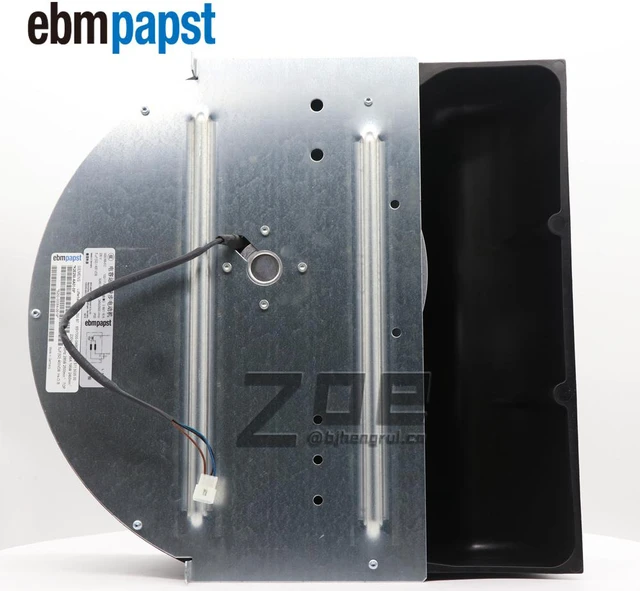

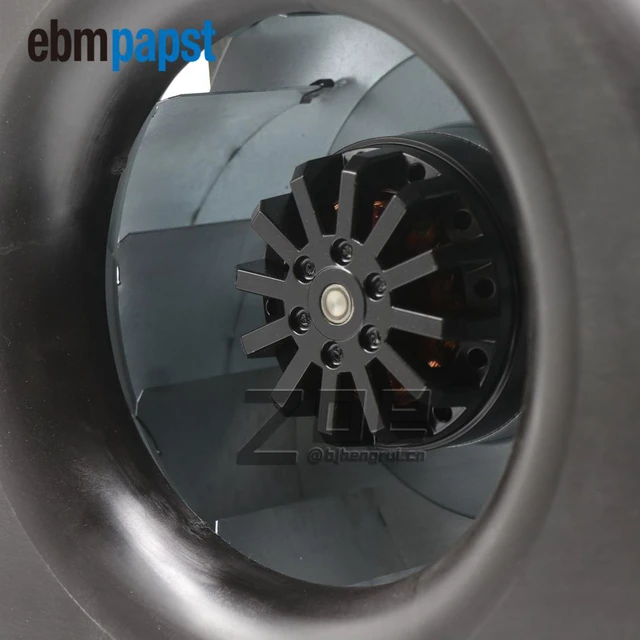

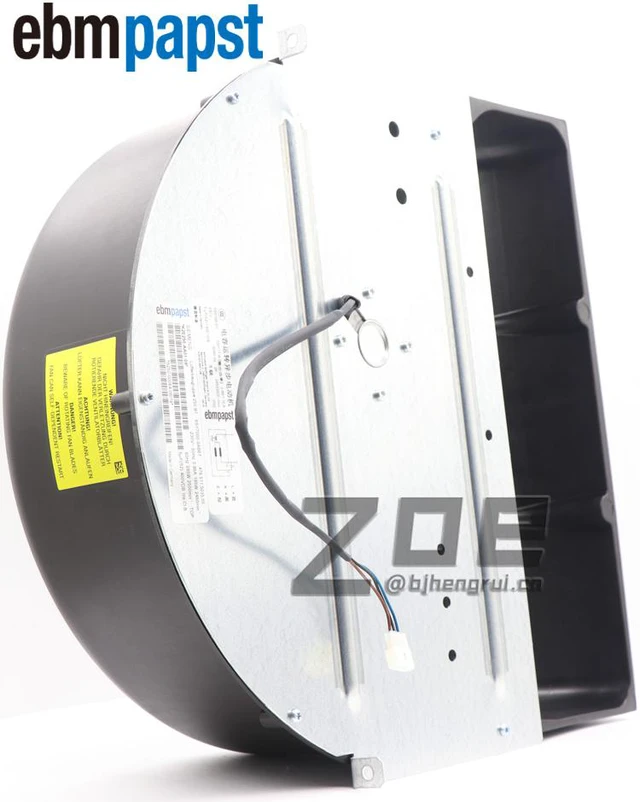

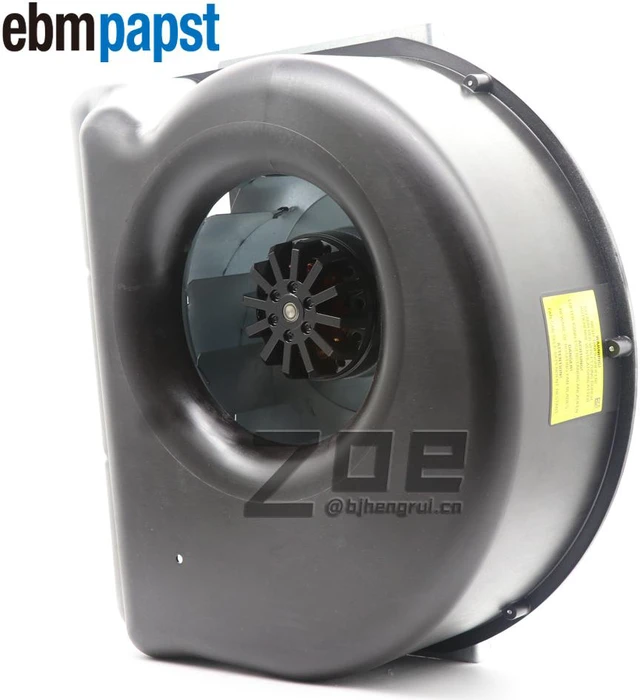

Ebmpapst K2E250-AA01-09 Centrifugal Fan 6SY7000-0AB67 Inverter Cooling Fans
- Item #: 9SIV0MWE0F6808
- Mfr. Part #: K2E250-AA01-09
- UNSPSC: 40101604
- Condition: 100% new and good quality;
- Brand:ebm-PAPST ;Model: K2E250-AA01-09
- Material : plastic case, metal impeller connected to metal outer rotor motor.
- Size: 250mm; Voltage: 230V ;Power input: 195~265W; Speed: 2450~2500min-1 ; Current draw:0.86~1.16A;
- Frequency:50~60Hz;Weight: 5.4KG;Motor capacitor:5µF;Capacitor voltage:400VDB;Min. ambient temperature:-25°C;Max. ambient temperature:55°C;
- We are professional Fan supplier,All products are New original genuine. Please rest assured to purchase, About the product parameters , please check and understand them carefully ,if not please feel free to contact us, we are pleased with serve for you.
+
+
Overview
Specs
Reviews
Product Parameter: For SIEMENS inverter 6SY7000-0AB67 fan The impeller diameter
Phi 250mm [motor speed]: 2650 + 10%
RPM [working frequency]: 50/60
Hz [working voltage]: 230VAC
[voltage range]: 180V...
240V AC [working current]: 0.86A
[input power]: 195/285W
[maximum wind]: 1450
m3/h [motor speed]: 2450/2500min-1
[starting capacitor]: 6.0
uF /450V [working temperature]: -20.. 60
C [maximum wind pressure]: 0..
580 Pa [service life]: L10 life expectancy is 30000 hours at 40 C.
[noise index]: 76.5
dBA [insulation level]: F
level (155) [protection grade]: IP20
Package: fan*1
Phi 250mm [motor speed]: 2650 + 10%
RPM [working frequency]: 50/60
Hz [working voltage]: 230VAC
[voltage range]: 180V...
240V AC [working current]: 0.86A
[input power]: 195/285W
[maximum wind]: 1450
m3/h [motor speed]: 2450/2500min-1
[starting capacitor]: 6.0
uF /450V [working temperature]: -20.. 60
C [maximum wind pressure]: 0..
580 Pa [service life]: L10 life expectancy is 30000 hours at 40 C.
[noise index]: 76.5
dBA [insulation level]: F
level (155) [protection grade]: IP20
Package: fan*1
