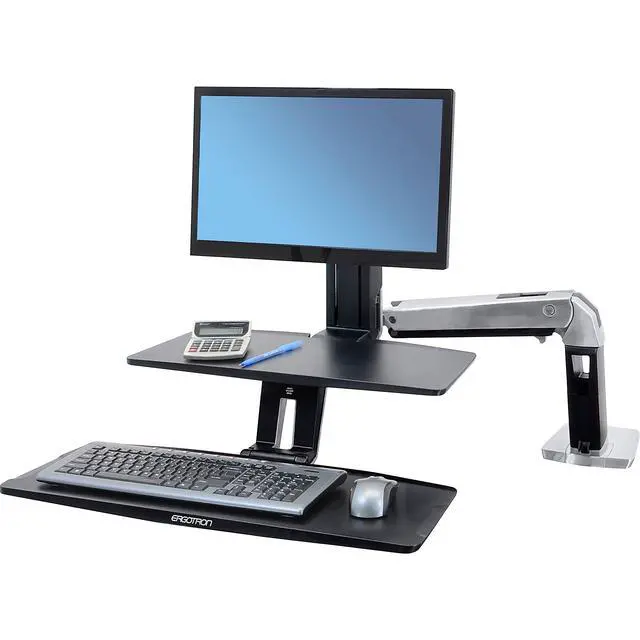

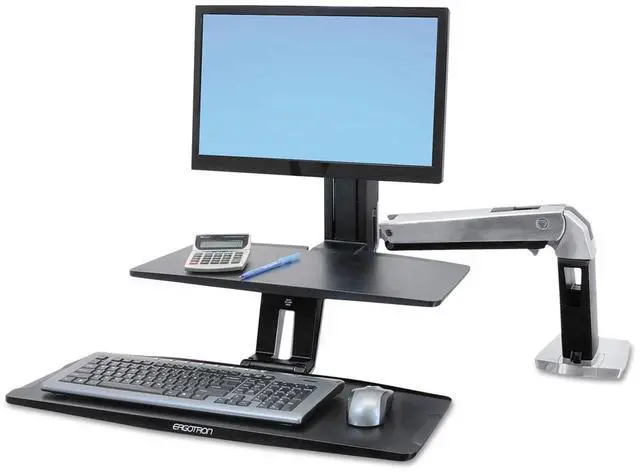

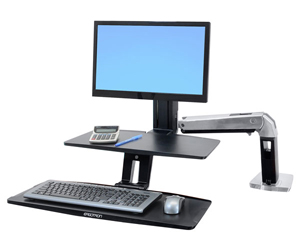

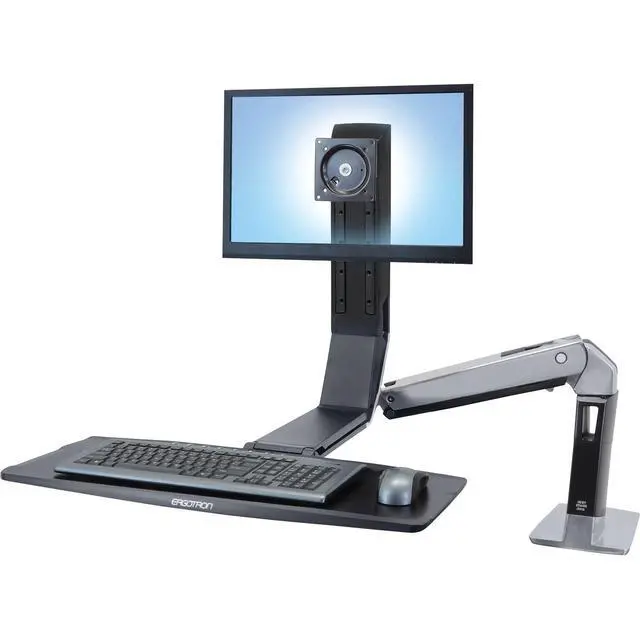

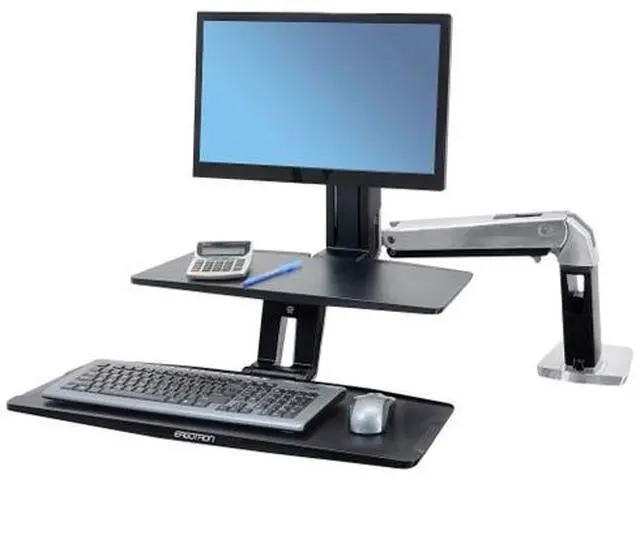

24-390-026 WFA, Drop Down, LD, 5" and WS, Polished Aluminum

Ergotron WorkFit-A with Suspended Keyboard, Single LD

Featuring an unprecedented range of motion for a standing desk solution, WorkFit-A let’s you swing your computer system left, right, up or down to wherever you need it. Premium ergonomic benefits include keyboard placement below desktop height when sitting and independent monitor positioning.

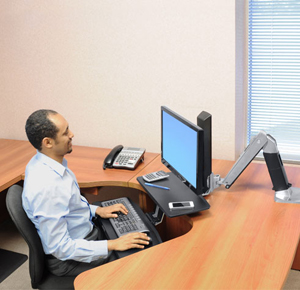

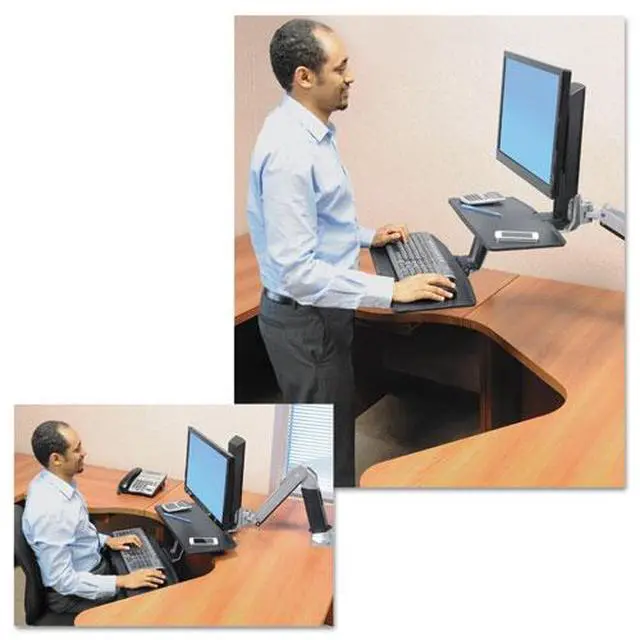

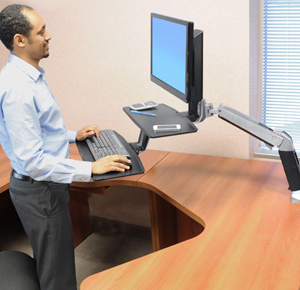

The height-adjustable arm moves the keyboard and monitor in one simple motion, allowing you to easily sit down or stand up as you work. Fold the keyboard up and push the arm out of the way when you need your desk surface. Includes several installation options to best fit your space.

• For Computer Users
• Keyboard can be positioned below desk surface for optimum ergonomic comfort
• Safe, easy to use—simple installation and effortless operation
• Easily and simultaneously lift keyboard and LCD screen to proper height for unsurpassed ergonomic comfort
• Patented Constant Force™ lift technology provides fluid, one-touch adjustments of the keyboard and monitor

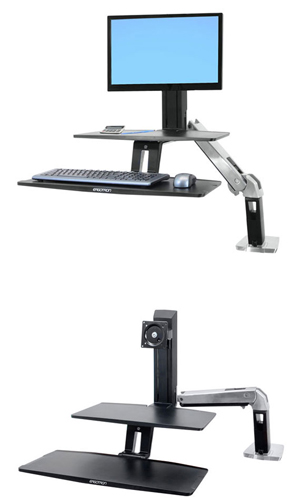

• Fold keyboard up and swing arm and monitor out of the way when you need your desk surface
• Included worksurface provides ample space and quick access to a tablet computer, phone or task-related items
• For IT and Facilities Staff
• Flexible, open-architecture design is scalable for future computer equipment
• Modify existing office spaces or cubes by simply clamping a WorkFit on an existing worksurface, without the cost of expensive professional installers
• Safe and neat routing of cables
• For HR/Risk Management and Company Cost Savings
• Manage the cost of healthcare premiums by promoting wellness in the daily work routine
• Provide standing work platforms for employees without having to buy expensive height-adjustable chairs
• Comfortable computing offers provable ROI on investment—healthcare costs associated with unhealthy computing and missed time are reduced while productivity increases
• WorkFit helps alleviate back and neck pain, the most costly conditions affecting employees according to the 2007 OE Medicine Journal
• Studies in office ergonomics show productivity increases of 12%–18% following an ergonomic intervention where employees are provided with well-designed ergonomic furniture**

Screen	Capacity	Lift	Tilt	Pan	Rotation	VESA
=24"	= 20 lbs* 9.1 kg	25"† 63 cm	30°	180°	360°	MIS-D

Part Number: 24-390-026

Description: WorkFit-A with Suspended Keyboard, Sit-Stand Workstation, LD Light Duty for standard-size monitors (polished aluminum, black)

Includes arm, desk clamp, grommet mount, monitor riser, monitor pivot, keyboard tray support bracket, worksurface, keyboard tray, assembly fasteners, Velco, cable wrap, adjustment tools

NOTE: Extra-long cables may be required to span between standing and sitting heights

* Weight Capacity: Maximum total load on height-adjustment assembly = 20 lbs (9.1 kg). LCD weight = 5–15 lbs (2.3–6.8 kg), worksurface = 5 lbs (2.3 kg), keyboard tray = 2 lbs (.9 kg). For proper operation the total maximum weight when added together should not exceed 20 lbs (9.1 kg). The minimum total weight should not be less than 6 lbs (2.7 kg)

† Lift Range: LCD and keyboard adjust 20" (51 cm) in tandem; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (63.5 cm)

When in seated position, keyboard tray can drop down = 4" (10 cm) below level of desktop surface, placing the keyboard at the optimum ergonomic height

Mounting Surface Requirements: When installed using Desk Clamp option, can be configured to work with desk surfaces up to 31.5" (80 cm) deep. When installed using Grommet Mount option, center of through-hole should be no more than 29.5" (75 cm) from front edge of desk surface. These requirements ensure that the suspended keyboard tray can extend past the desktop’s front edge

Keyboard tray can be installed in 3 different positions: centered, offset right or offset left

Keyboard tray designed with slight tilt to ensure wrists remain in a neutral position during data entry and help prevent repetitive stress-injuries; tray can be flipped up 90º when not in use

Integrated cable management hides wires

Worksurface Dimensions: Approximately 0.25" H x 22" W x 10"D (6.4 x 560 x 255 mm)

Desk clamp attaches to edge up to 2.5" (65 mm) thick; grommet mount attaches through hole 0.5" to 2.5" (7–65 mm) wide and up to 2.5" (65 mm) thick

Mounting Standards: VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)

Can be configured to hold a laptop in place of monitor: order accessory Notebook Tray (50-193-200)

** A Washington State analysis of case studies related to office ergonomics showed a median productivity increase of 12% following an ergonomic intervention. New studies from the Office Ergonomics Research Committee (OERC) suggest that employees who are provided with well-designed ergonomic furniture and are trained to use it see an average productivity increase of 18%

This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)

Shipping Dimensions: 36" x 21.25" x 10.75" (941 x 540 x 273 mm)

Shipping Weight: 45 lbs (20.5 kg)

Warranty: Five (5) years
