Generic Brand RGB FC Famicom Retro Video Game Console with HDMI Port, Multi-Output Support for RGB, S-Video, VGA, AV, Compatible with PAL, Dendy, NTSC,A complete set of products

features:

1. Operate at a frequency of 60Hz in accordance with the NTSC standard;

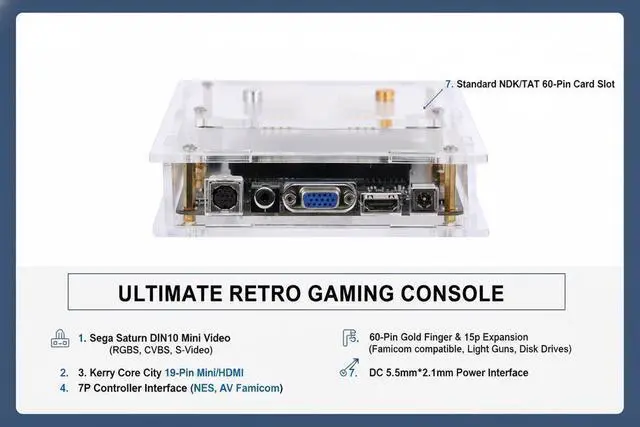

2. Supports video output with HDMI, VGA, RGBS, S-Video, and CVBS interfaces;

3.High-definition output is VGA and HDMI, while low-definition output is RGBS, S-Video, and CVBS (AV) simultaneously, without the need to switch.

. HDMI and VGA outputs support resolutions of 1280 * 1024 and 640 * 480;

4. HDMI and VGA outputs support scanline;

5. Supports 4 palettes including FCEUX, NTSC, PAL, PC-10;

Switch palette, reset, scan lines, resolution with the controller;

6. RGBS, S-Video, and CVBS are output using the Sega Saturn SS standard interface;

7. Support NES's Zapper;

Supports the official standard 15P expansion port, compatible with light guns, disk drives, and various other peripherals.

8. Support disk drive system;

9. Support standard 15P expansion interface and all expansion devices;

10. The controller adopts NES/AV Famicon standard 7P interface;

11.9~12V power supply, rectifier on the motherboard, no need to distinguish positive and negative poles;

12. Compatible with all genuine cartridges, EverDrive N8, and various cloned versions of EverDrive N8;

13.4 layer gold-plated PCB;

14.The FPGA model is EP2C8Q208C8N produced by Altera;

15.FPGA is only used to replace PPU, while other circuits maintain original design, maximizing compatibility with original version

16.The CPU supports NTSC, PAL and Dendy modes. If a CPU in PAL or Dendy mode is used, it will operate at a frequency of 60Hz in the overclocking mode.

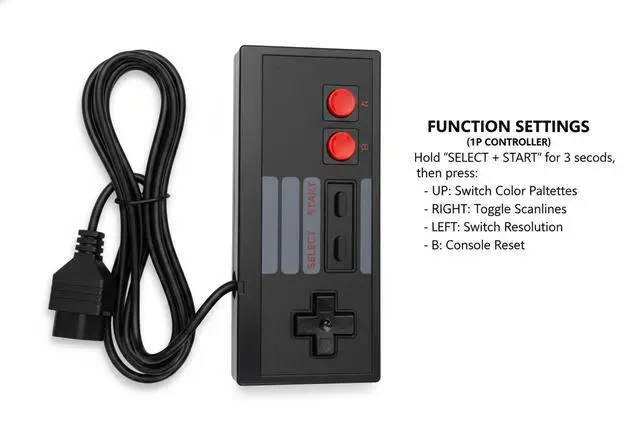

Operating Instructions: Function settings are completed by holding the combination keys on the 1P controller for 3 seconds. The combinations are as follows: - select + start + up: switch color palette; - select + start + right: toggle scanlines; - select + start + left: switch resolution; - select + start + B: reset the console;

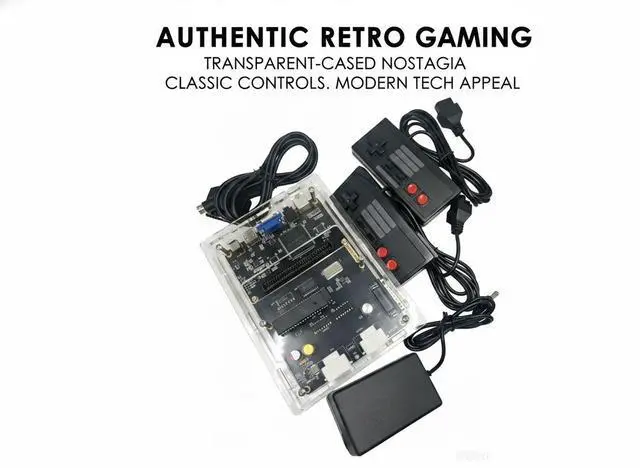

Shipping List:

1. Motherboard;

2. Acrylic shell;

3. Power supply

4.2 controllers
